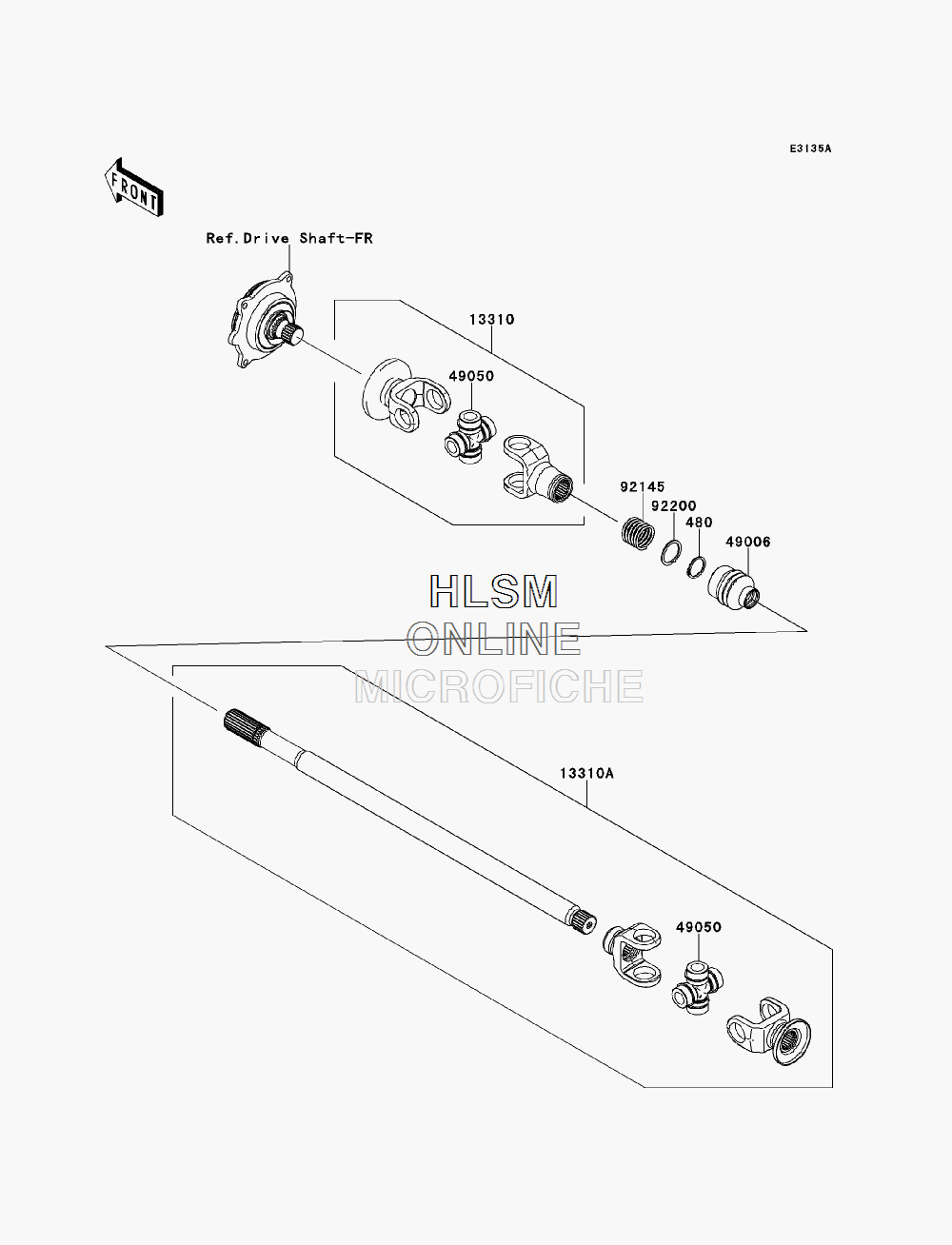

DRIVE SHAFT (JKBRTCD1 EB500048 AND ABOVE) для Kawasaki TERYX4 CAMO (KRT800DEF) - 2014 года выпуска`
-
№АртикулНазвание
-
480480J2400 CIRCLIP-TYPE-C, 24MMCIRCLIP-TYPE-C, 24MM
-
1331013310-0031 SHAFT-ASSY, FRONT GEAR SIDESHAFT-ASSY, FRONT GEAR SIDE
-
13310A13310-0032 SHAFT-ASSY, FRONT ENG SIDESHAFT-ASSY, FRONT ENG SIDE
-
4900649006-0108 BOOT, GEAR ASSY SIDEBOOT, GEAR ASSY SIDE
-
4905049050-0034 SPIDERSPIDER
-
9214592145-0823 SPRINGSPRING
-
9220092200-0600 WASHER, 25X31X1.5WASHER, 25X31X1.5
