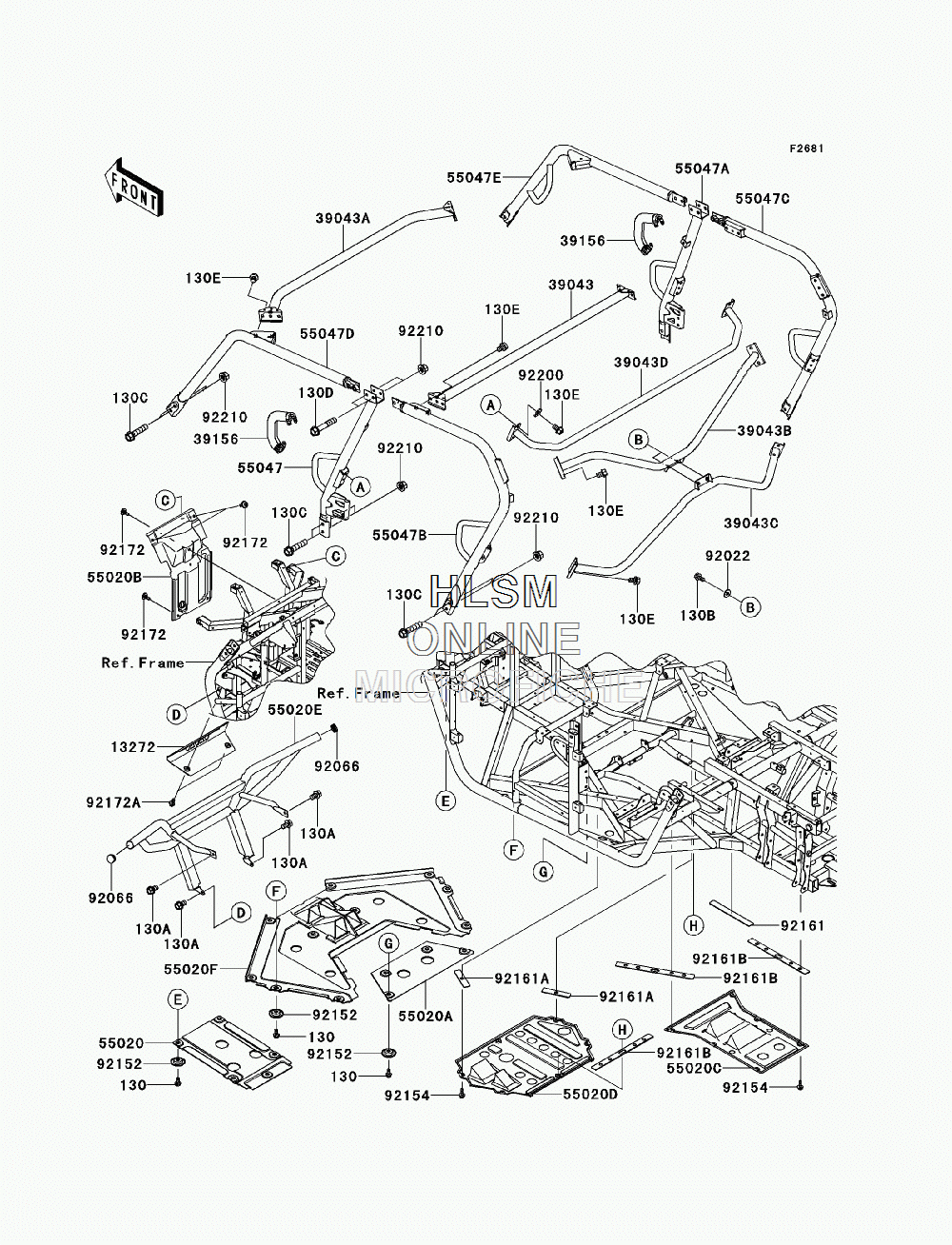

GUARD(S) / CAB FRAME для Kawasaki TERYX4 CAMO (KRT800DEF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
130B130BB0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130C130BB1255 BOLT-FLANGED, 12X55BOLT-FLANGED, 12X55
-
130D130BB1265 BOLT-FLANGED, 12X65BOLT-FLANGED, 12X65
-
130E130CB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
1327213272-1433-388 PLATE, T.BLACK (FOR 16P)PLATE, T.BLACK (FOR 16P)
-
3904339043-0009-388 CROSSMEMBER-COMP, UPPER, REAR, (T.BLACK) (FOR 16P)CROSSMEMBER-COMP, UPPER, REAR, (T.BLACK) (FOR 16P)
-
39043A39043-0010-388 CROSSMEMBER-COMP, UPPER, FRONT, (T.BLACK) (FOR 16P)CROSSMEMBER-COMP, UPPER, FRONT, (T.BLACK) (FOR 16P)
-
39043B39043-0011-388 CROSSMEMBER-COMP, UPPER, (T.BLACK) (FOR 16P)CROSSMEMBER-COMP, UPPER, (T.BLACK) (FOR 16P)
-
39043C39043-0012-388 CROSSMEMBER-COMP, LOWER, (T.BLACK) (FOR 16P)CROSSMEMBER-COMP, LOWER, (T.BLACK) (FOR 16P)
-
39043D39043-0325-388 CROSSMEMBER-COMP, CNT, LOWER, (T.BLACK) (FOR 16P)CROSSMEMBER-COMP, CNT, LOWER, (T.BLACK) (FOR 16P)
-
3915639156-0939 PAD, SHOULDERPAD, SHOULDER
-
5502055020-0723 GUARD, SKID, FRONTGUARD, SKID, FRONT
-
55020A55020-0726 GUARD, SKID, CNT, FRONTGUARD, SKID, CNT, FRONT
-
55020B55020-0741 GUARD, FRONT FRAMEGUARD, FRONT FRAME
-
55020C55020-0812 GUARD, SKID, REARGUARD, SKID, REAR
-
55020D55020-0815 GUARD, SKID, CNTGUARD, SKID, CNT
-
55020E55020-0886-388 GUARD, FRONT, (T.BLACK) (FOR 16P)GUARD, FRONT, (T.BLACK) (FOR 16P)
-
55020F55020-0890 GUARD, SKID, FRONT MIDDLEGUARD, SKID, FRONT MIDDLE
-
5504755047-0029-388 BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK) (FOR 16P)BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK) (FOR 16P)
-
55047A55047-0030-388 BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK) (FOR 16P)BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK) (FOR 16P)
-
55047B55047-0031-388 BAR-COMP, C-PILLAR, LEFT HAND, (T.BLACK) (FOR 16P)BAR-COMP, C-PILLAR, LEFT HAND, (T.BLACK) (FOR 16P)
-
55047C55047-0032-388 BAR-COMP, C-PILLAR, RIGHT HAND, (T.BLACK) (FOR 16P)BAR-COMP, C-PILLAR, RIGHT HAND, (T.BLACK) (FOR 16P)
-
55047D55047-0037-388 BAR-COMP, A-PILLAR, LEFT HAND, (T.BLACK) (FOR 16P)BAR-COMP, A-PILLAR, LEFT HAND, (T.BLACK) (FOR 16P)
-
55047E55047-0038-388 BAR-COMP, A-PILLAR, RIGHT HAND, (T.BLACK) (FOR 16P)BAR-COMP, A-PILLAR, RIGHT HAND, (T.BLACK) (FOR 16P)
-
9202292022-1317 WASHER, 8.5X20X1.6, (BLACK)WASHER, 8.5X20X1.6, (BLACK)
-
9206692066-7503 PLUGPLUG
-
9215292152-0784 COLLARCOLLAR
-
9215492154-0887 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9216192161-1597 DAMPER, 32X270X3DAMPER, 32X270X3
-
92161A92161-1598 DAMPER, 32X140X3DAMPER, 32X140X3
-
92161B92161-1599 DAMPER, 32X390X3DAMPER, 32X390X3
-
9217292172-0826 SCREW, 6X16SCREW, 6X16
-
92172A92172-0869 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9220092200-7506 WASHER, 10.2X23X2.5WASHER, 10.2X23X2.5
-
9221092210-0603 NUT, 12MMNUT, 12MM
