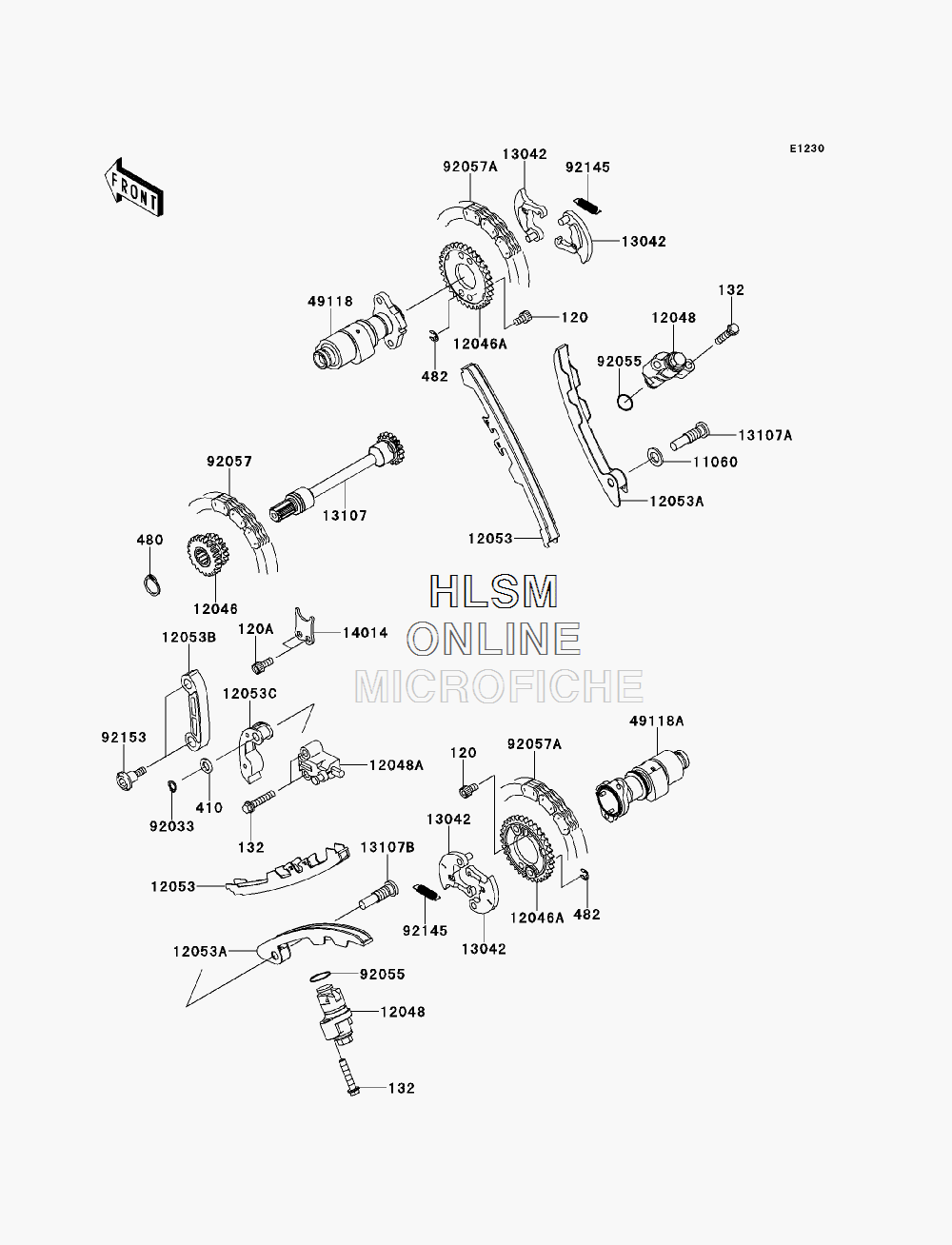

CAMSHAFT(S) W/TENSIONER для Kawasaki TERYX4 CAMO (KRT800DEF) - 2014 года выпуска`
-
№АртикулНазвание
-
120120CA0610 BOLT-SOCKET, 6X10BOLT-SOCKET, 6X10
-
120A120CB0614 BOLT-SOCKET, 6X14BOLT-SOCKET, 6X14
-
132132BA0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
480480J1400 CIRCLIP-TYPE-C, 14MMCIRCLIP-TYPE-C, 14MM
-
482482J5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
1106011060-1966 GASKETGASKET
-
1204612046-0559 SPROCKET, 21T & 17TSPROCKET, 21T & 17T
-
12046A12046-0568 SPROCKET, CAMSHAFT, 34TSPROCKET, CAMSHAFT, 34T
-
1204812048-1176 TENSIONER-ASSY, CAMTENSIONER-ASSY, CAM
-
12048A12048-1177 TENSIONER-ASSY, SECONDARYTENSIONER-ASSY, SECONDARY
-
1205312053-1441 GUIDE-CHAIN, CAMSHAFT, TENSIONGUIDE-CHAIN, CAMSHAFT, TENSION
-
12053A12053-1442 GUIDE-CHAIN, CAMSHAFT, SLACKGUIDE-CHAIN, CAMSHAFT, SLACK
-
12053B12053-1443 GUIDE-CHAIN, TENSIONGUIDE-CHAIN, TENSION
-
12053C12053-1444 GUIDE-CHAIN, SLACKGUIDE-CHAIN, SLACK
-
1304213042-1141 WEIGHT, DECOMPWEIGHT, DECOMP
-
1310713107-0761 SHAFTSHAFT
-
13107A13107-1443 SHAFT, CHAIN GUIDE, FRONTSHAFT, CHAIN GUIDE, FRONT
-
13107B13107-1444 SHAFT, CHAIN GUIDE, REARSHAFT, CHAIN GUIDE, REAR
-
1401414014-0050 PLATE-POSITION, DRIVEPLATE-POSITION, DRIVE
-
4911849118-0787 CAMSHAFT-COMP, FRONTCAMSHAFT-COMP, FRONT
-
49118A49118-0788 CAMSHAFT-COMP, REARCAMSHAFT-COMP, REAR
-
9203392033-1039 RING-SNAP, 8MMRING-SNAP, 8MM
-
9205592055-086 RING-O, 18.8X1.9RING-O, 18.8X1.9
-
9205792057-0186 CHAIN, DID SCR-0412 SVCHAIN, DID SCR-0412 SV
-
92057A92057-0187 CHAIN, DID SCR-0409 SVCHAIN, DID SCR-0409 SV
-
9214592145-0913 SPRING, DECOMPSPRING, DECOMP
-
9215392153-1200 BOLT, SOCKET, 6X24.5BOLT, SOCKET, 6X24.5
