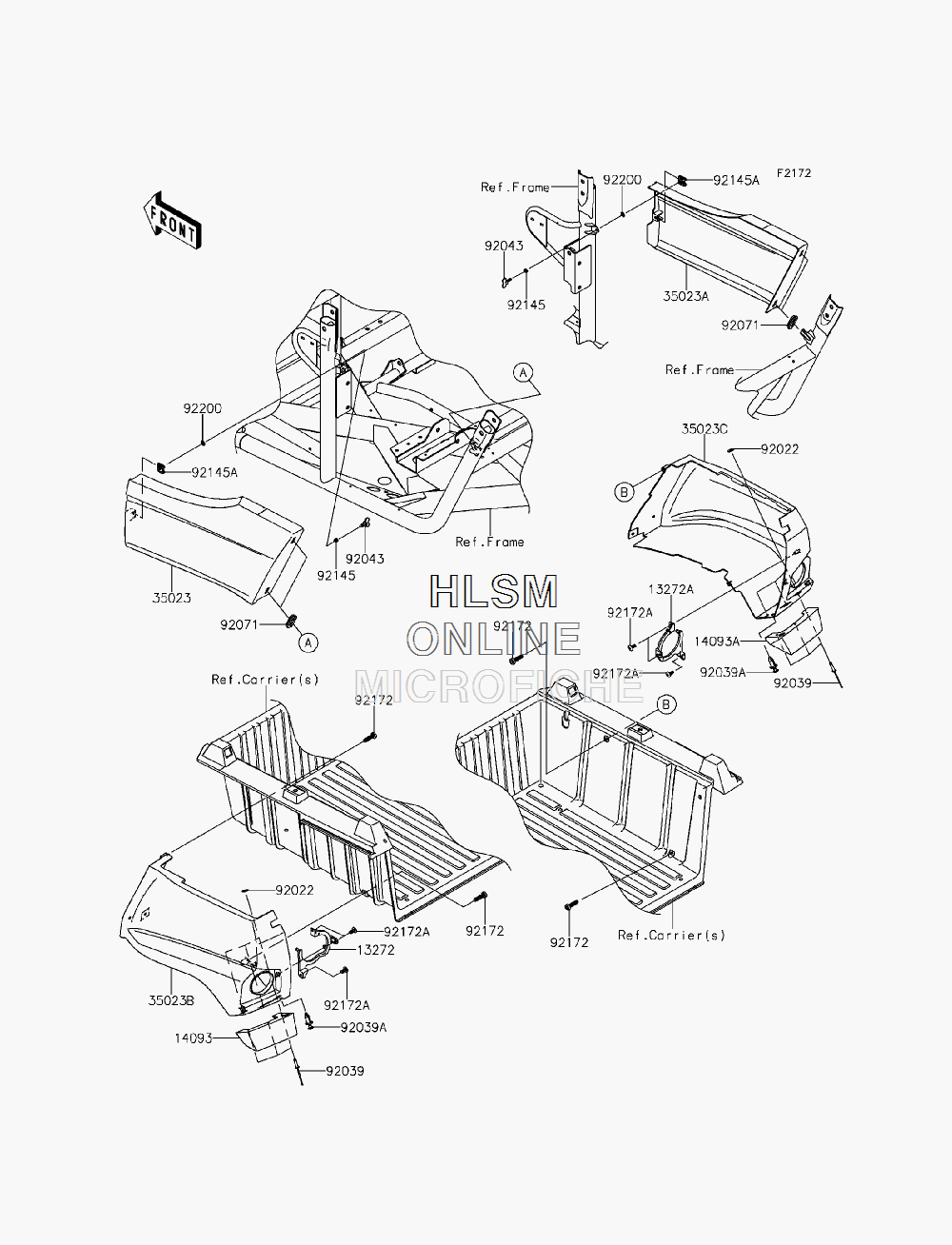

FENDER - REAR для Kawasaki TERYX LE (KRF800CEF) - 2014 года выпуска`
-
№АртикулНазвание
-
1327213272-1481 PLATE, TAILLIGHT MOUNT, LEFT HANDPLATE, TAILLIGHT MOUNT, LEFT HAND
-
13272A13272-1482 PLATE, TAILLIGHT MOUNT, RIGHT HANDPLATE, TAILLIGHT MOUNT, RIGHT HAND
-
1409314093-0001 COVER, MUD GUARD, LEFT HANDCOVER, MUD GUARD, LEFT HAND
-
14093A14093-0002 COVER, MUD GUARD, RIGHT HANDCOVER, MUD GUARD, RIGHT HAND
-
3502335023-0370-367 FENDER-REAR, FRONT, LEFT HAND, (C.L.GREEN) (FOR 367)FENDER-REAR, FRONT, LEFT HAND, (C.L.GREEN) (FOR 367)
-
35023A35023-0371-367 FENDER-REAR, FRONT, RIGHT HAND, (C.L.GREEN) (FOR 367)FENDER-REAR, FRONT, RIGHT HAND, (C.L.GREEN) (FOR 367)
-
35023B35023-0372-367 FENDER-REAR, REAR, LEFT HAND, (C.L.GREEN) (FOR 367)FENDER-REAR, REAR, LEFT HAND, (C.L.GREEN) (FOR 367)
-
35023C35023-0373-367 FENDER-REAR, REAR, RIGHT HAND, (C.L.GREEN) (FOR 367)FENDER-REAR, REAR, RIGHT HAND, (C.L.GREEN) (FOR 367)
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9203992039-0704 RIVET, 4.9X19.8RIVET, 4.9X19.8
-
92039A92039-1229 RIVETRIVET
-
9204392043-0779 PIN, WINGED, 240PIN, WINGED, 240
-
9207192071-1187 GROMMETGROMMET
-
9214592145-0905 SPRINGSPRING
-
92145A92145-0906 SPRING, CLIPSPRING, CLIP
-
9217292172-0886 SCREWSCREW
-
92172A92172-3714 SCREW, 5X12SCREW, 5X12
-
9220092200-0800 WASHERWASHER
