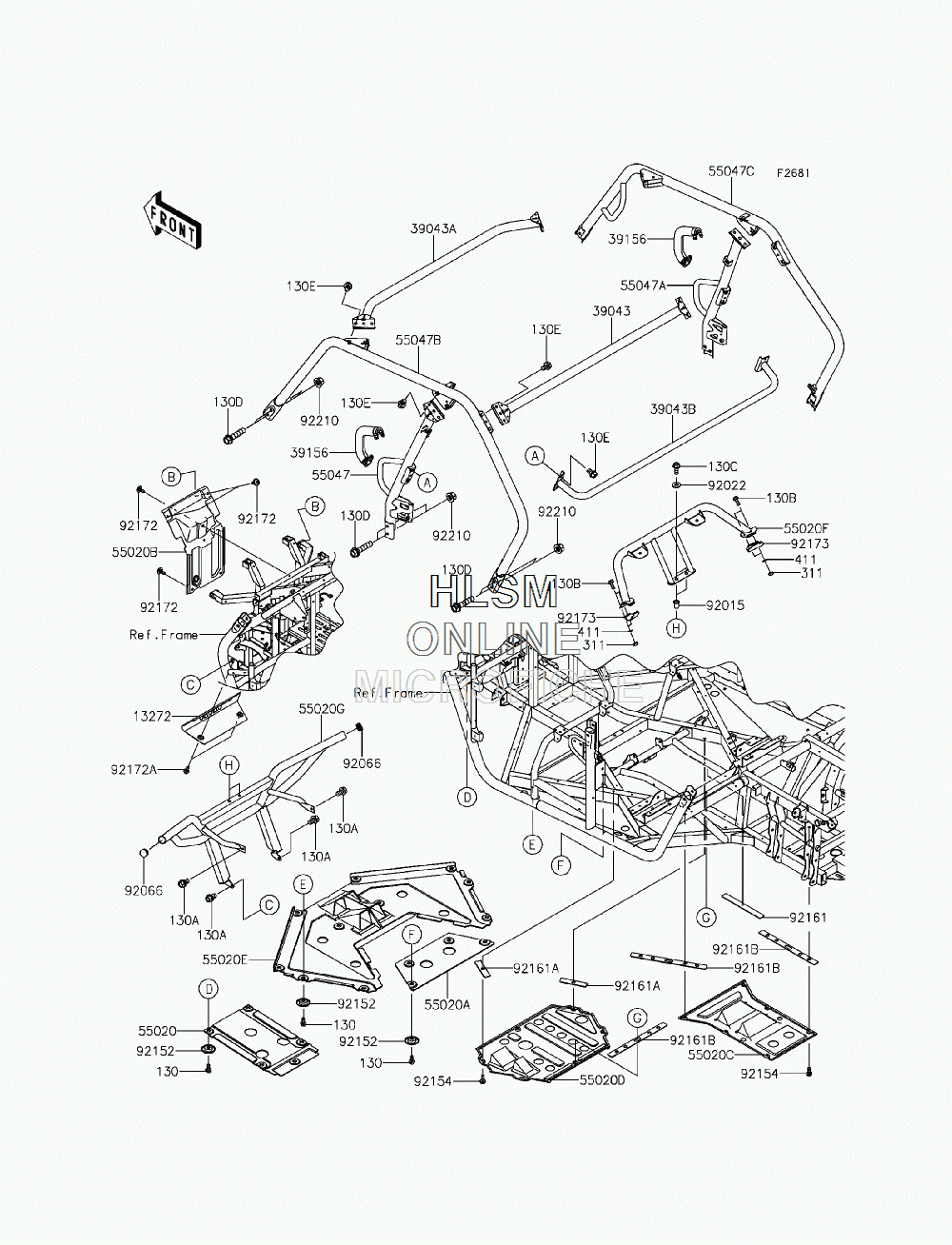

GUARD(S) / CAB FRAME для Kawasaki TERYX LE (KRF800CEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
130B130BB0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130C130BB0822 BOLT-FLANGED, 8X22BOLT-FLANGED, 8X22
-
130D130BB1255 BOLT-FLANGED, 12X55BOLT-FLANGED, 12X55
-
130E130CB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
311311BB0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
411411AB0600 WASHER-PLAIN, 6.5X13X1WASHER-PLAIN, 6.5X13X1
-
1327213272-1433-388 PLATE, T.BLACK (FOR 367)PLATE, T.BLACK (FOR 367)
-
3904339043-0009-388 CROSS MEMBER-COMP, UPPER, REAR, (T.BLACK) (FOR 367)CROSS MEMBER-COMP, UPPER, REAR, (T.BLACK) (FOR 367)
-
39043A39043-0010-388 CROSS MEMBER-COMP, UPPER, FRONT, (T.BLACK) (FOR 367)CROSS MEMBER-COMP, UPPER, FRONT, (T.BLACK) (FOR 367)
-
39043B39043-0015-388 CROSS MEMBER-COMP, (T.BLACK) (FOR 367)CROSS MEMBER-COMP, (T.BLACK) (FOR 367)
-
3915639156-0939 PAD, SHOULDERPAD, SHOULDER
-
5502055020-0723 GUARD, SKID, FRONTGUARD, SKID, FRONT
-
55020A55020-0726 GUARD, SKID, CNT, FRONTGUARD, SKID, CNT, FRONT
-
55020B55020-0741 GUARD, FRONT FRAMEGUARD, FRONT FRAME
-
55020C55020-0812 GUARD, SKID, REARGUARD, SKID, REAR
-
55020D55020-0815 GUARD, SKID, CNTGUARD, SKID, CNT
-
55020E55020-0890 GUARD, SKID, FRONT MIDDLEGUARD, SKID, FRONT MIDDLE
-
55020F55020-0891 GUARDGUARD
-
55020G55020-0895-388 GUARD, FRONT, (T.BLACK) (FOR 367)GUARD, FRONT, (T.BLACK) (FOR 367)
-
5504755047-0033-388 BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK) (FOR 367)BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK) (FOR 367)
-
55047A55047-0034-388 BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK) (FOR 367)BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK) (FOR 367)
-
55047B55047-0035-388 BAR-COMP, A/C-PILLAR, LEFT HAND, (T.BLACK) (FOR 367)BAR-COMP, A/C-PILLAR, LEFT HAND, (T.BLACK) (FOR 367)
-
55047C55047-0036-388 BAR-COMP, A/C-PILLAR, RIGHT HAND, (T.BLACK) (FOR 367)BAR-COMP, A/C-PILLAR, RIGHT HAND, (T.BLACK) (FOR 367)
-
9201592015-1793 NUT, POP, 8MM, L=16.5NUT, POP, 8MM, L=16.5
-
9202292022-1317 WASHER, 8.5X20X1.6, (BLACK)WASHER, 8.5X20X1.6, (BLACK)
-
9206692066-7503 PLUGPLUG
-
9215292152-0784 COLLARCOLLAR
-
9215492154-0887 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9216192161-1597 DAMPER, 32X270X3DAMPER, 32X270X3
-
92161A92161-1598 DAMPER, 32X140X3DAMPER, 32X140X3
-
92161B92161-1599 DAMPER, 32X390X3DAMPER, 32X390X3
-
9217292172-0826 SCREW, 6X16SCREW, 6X16
-
92172A92172-0869 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9217392173-0779 CLAMPCLAMP
-
9221092210-0603 NUT, 12MMNUT, 12MM
