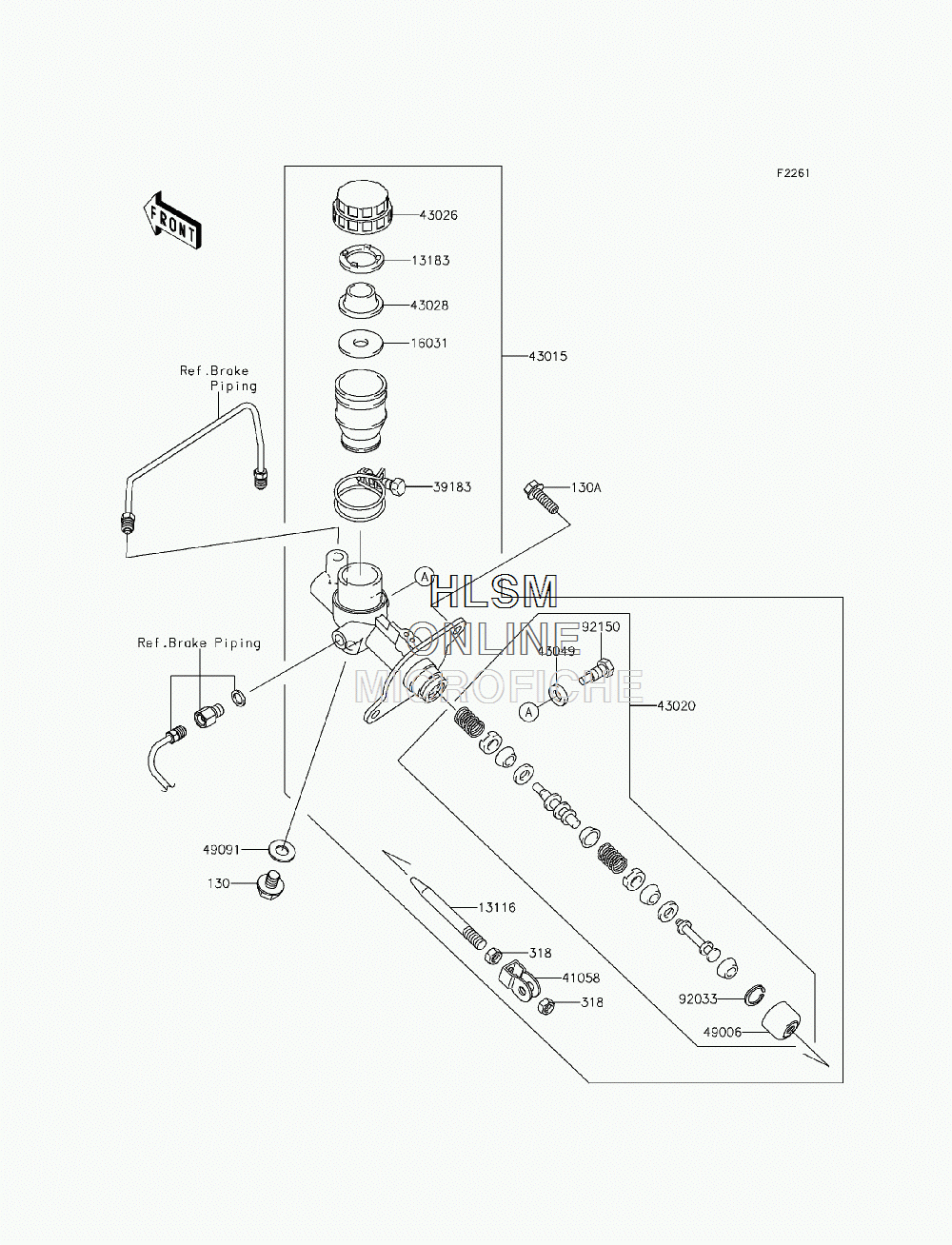

BRAKE - MASTER CYLINDER для Kawasaki TERYX LE (KRF800CEF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130AA1012 BOLT-FLANGED, 10X12BOLT-FLANGED, 10X12
-
130A130BA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
318318BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
1311613116-1134 ROD-PUSHROD-PUSH
-
1318313183-1306 PLATEPLATE
-
1603116031-1069 FLOATFLOAT
-
3918339183-1055 BAND-ASSYBAND-ASSY
-
4105841058-1057 RODEND-BRAKERODEND-BRAKE
-
4301543015-1683 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-1124 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1067 CAP-BRAKECAP-BRAKE
-
4302843028-1078 DIAPHRAGMDIAPHRAGM
-
4304943049-1065 PACKINGPACKING
-
4900649006-1245 BOOTBOOT
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9203392033-1255 RING-SNAPRING-SNAP
-
9215092150-1165 BOLT, STOPBOLT, STOP
