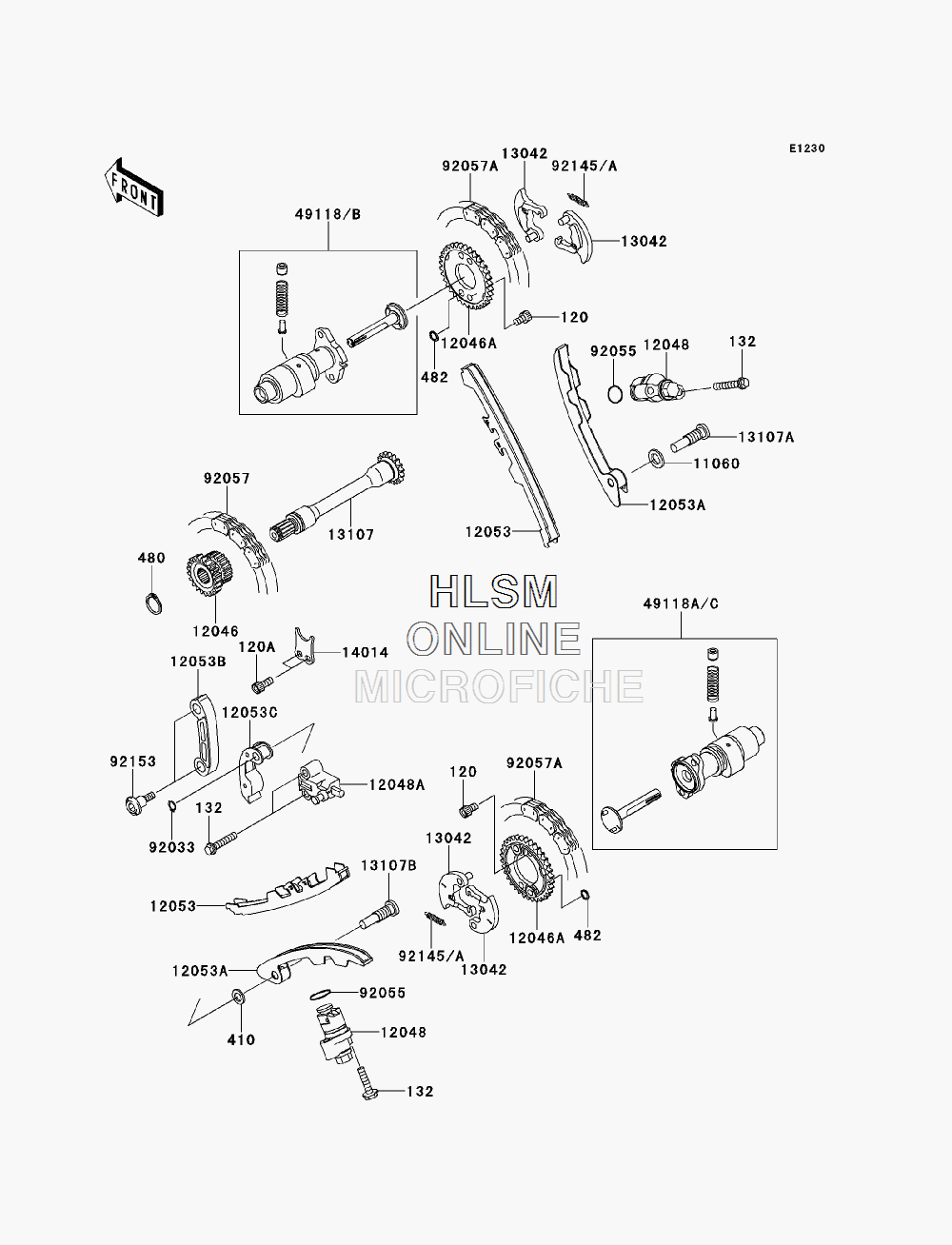

CAMSHAFT(S) W/TENSIONER для Kawasaki TERYX 750 FI 4X4 LE (SGE) (KRF750VBF) - 2011 года выпуска`
-
№АртикулНазвание
-
120120CA0610 BOLT-SOCKET,6X10BOLT-SOCKET,6X10
-
120A120CB0614 BOLT-SOCKET,6X14BOLT-SOCKET,6X14
-
132132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
410410AA0800 WASHER-PLAIN-SMALL,8MMWASHER-PLAIN-SMALL,8MM
-
480480J1400 CIRCLIP-TYPE-C,14MMCIRCLIP-TYPE-C,14MM
-
482482J5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
1106011060-1966 GASKETGASKET
-
1204612046-0562 SPROCKET,21T & 17TSPROCKET,21T & 17T
-
12046A12046-1203 SPROCKET,CAMSHAFT,34TSPROCKET,CAMSHAFT,34T
-
1204812048-1176 TENSIONER-ASSY,CAMTENSIONER-ASSY,CAM
-
12048A12048-1177 TENSIONER-ASSY,SECONDARYTENSIONER-ASSY,SECONDARY
-
1205312053-1441 GUIDE-CHAIN,CAMSHAFT,TENSIONGUIDE-CHAIN,CAMSHAFT,TENSION
-
12053A12053-1442 GUIDE-CHAIN,CAMSHAFT,SLACKGUIDE-CHAIN,CAMSHAFT,SLACK
-
12053B12053-1443 GUIDE-CHAIN,TENSIONGUIDE-CHAIN,TENSION
-
12053C12053-1444 GUIDE-CHAIN,SLACKGUIDE-CHAIN,SLACK
-
1304213042-1141 WEIGHT,DECOMPWEIGHT,DECOMP
-
1310713107-0029 SHAFTSHAFT
-
13107A13107-1443 SHAFT,CHAIN GUIDE, FRONTSHAFT,CHAIN GUIDE, FRONT
-
13107B13107-1444 SHAFT,CHAIN GUIDE, REARSHAFT,CHAIN GUIDE, REAR
-
1401414014-1148 PLATE-POSITION,DRIVEPLATE-POSITION,DRIVE
-
4911849118-0001 CAMSHAFT-COMP, FRONTCAMSHAFT-COMP, FRONT
-
49118A49118-0002 CAMSHAFT-COMP, REARCAMSHAFT-COMP, REAR
-
9203392033-1039 RING-SNAP,8MMRING-SNAP,8MM
-
9205592055-086 RING-O,18.8X1.9RING-O,18.8X1.9
-
9205792057-0186 CHAIN,DID SCR-0412 SVCHAIN,DID SCR-0412 SV
-
92057A92057-0187 CHAIN,DID SCR-0409 SVCHAIN,DID SCR-0409 SV
-
9214592145-1303 SPRING,DECOMPSPRING,DECOMP
-
9215392153-1200 BOLT,SOCKET,6X24.5BOLT,SOCKET,6X24.5
