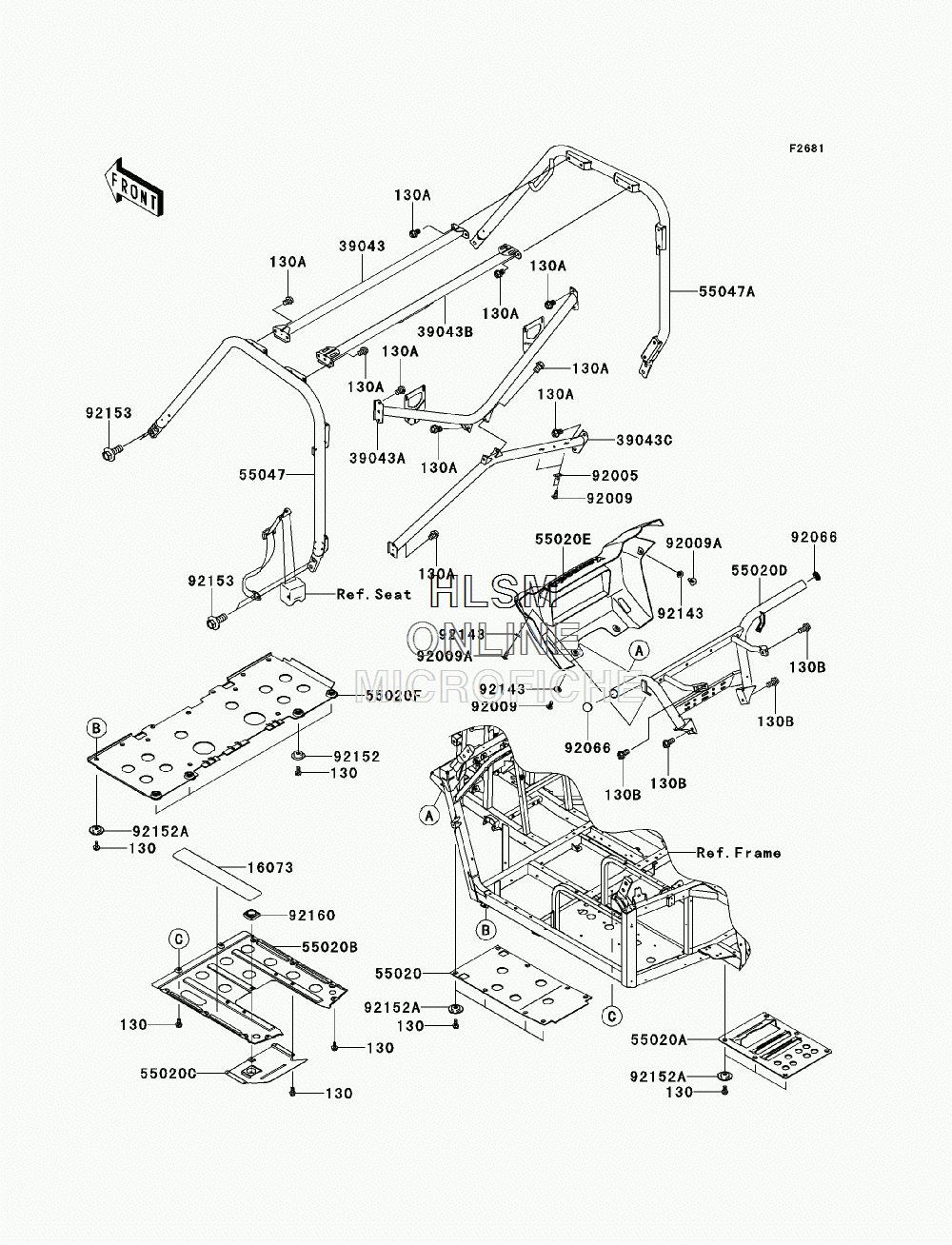

GUARD(S) / CAB FRAME для Kawasaki TERYX 750 FI 4X4 LE (SGE) (KRF750VBF) - 2011 года выпуска`
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130A130CB1014 BOLT-FLANGED,10X14BOLT-FLANGED,10X14
-
130B130CB1020 BOLT-FLANGED,10X20BOLT-FLANGED,10X20
-
1607316073-0045 INSULATOR,ENGINE GUARDINSULATOR,ENGINE GUARD
-
3904339043-0001-388 CROSSMEMBER-COMP,UPP, FRONT,BLACKCROSSMEMBER-COMP,UPP, FRONT,BLACK
-
39043A39043-0005-388 CROSSMEMBER-COMP, REAR,UPP,BLACKCROSSMEMBER-COMP, REAR,UPP,BLACK
-
39043B39043-0007-388 CROSSMEMBER-COMP,UPP, REAR,BLACKCROSSMEMBER-COMP,UPP, REAR,BLACK
-
39043C39043-0008-388 CROSSMEMBER-COMP, REAR,LWR,BLACKCROSSMEMBER-COMP, REAR,LWR,BLACK
-
5502055020-0301 GUARD,SKID, FRONTGUARD,SKID, FRONT
-
55020A55020-0402 GUARD,SKID, REARGUARD,SKID, REAR
-
55020B55020-0437 GUARD,SKID,MIDDLEGUARD,SKID,MIDDLE
-
55020C55020-0438 GUARD,ENGINE,SUBGUARD,ENGINE,SUB
-
55020D55020-0494-388 GUARD, FRONT PIPE,T.BLACKGUARD, FRONT PIPE,T.BLACK
-
55020E55020-0520 GUARD, FRONT COVERGUARD, FRONT COVER
-
55020F55020-0522 GUARD,SKID,MIDDLEGUARD,SKID,MIDDLE
-
5504755047-0021-388 BAR-COMP, LEFT HAND,T.BLACKBAR-COMP, LEFT HAND,T.BLACK
-
55047A55047-0022-388 BAR-COMP, RIGHT HAND,T.BLACKBAR-COMP, RIGHT HAND,T.BLACK
-
9200592005-0077 FITTINGFITTING
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
92009A92009-1621 SCREW,6X16SCREW,6X16
-
9206692066-0114 PLUGPLUG
-
9214392143-1087 COLLARCOLLAR
-
9215292152-0512 COLLARCOLLAR
-
92152A92152-0784 COLLARCOLLAR
-
9215392153-1282 BOLT,FLANGED,14X36BOLT,FLANGED,14X36
-
9216092160-1772 DAMPERDAMPER
