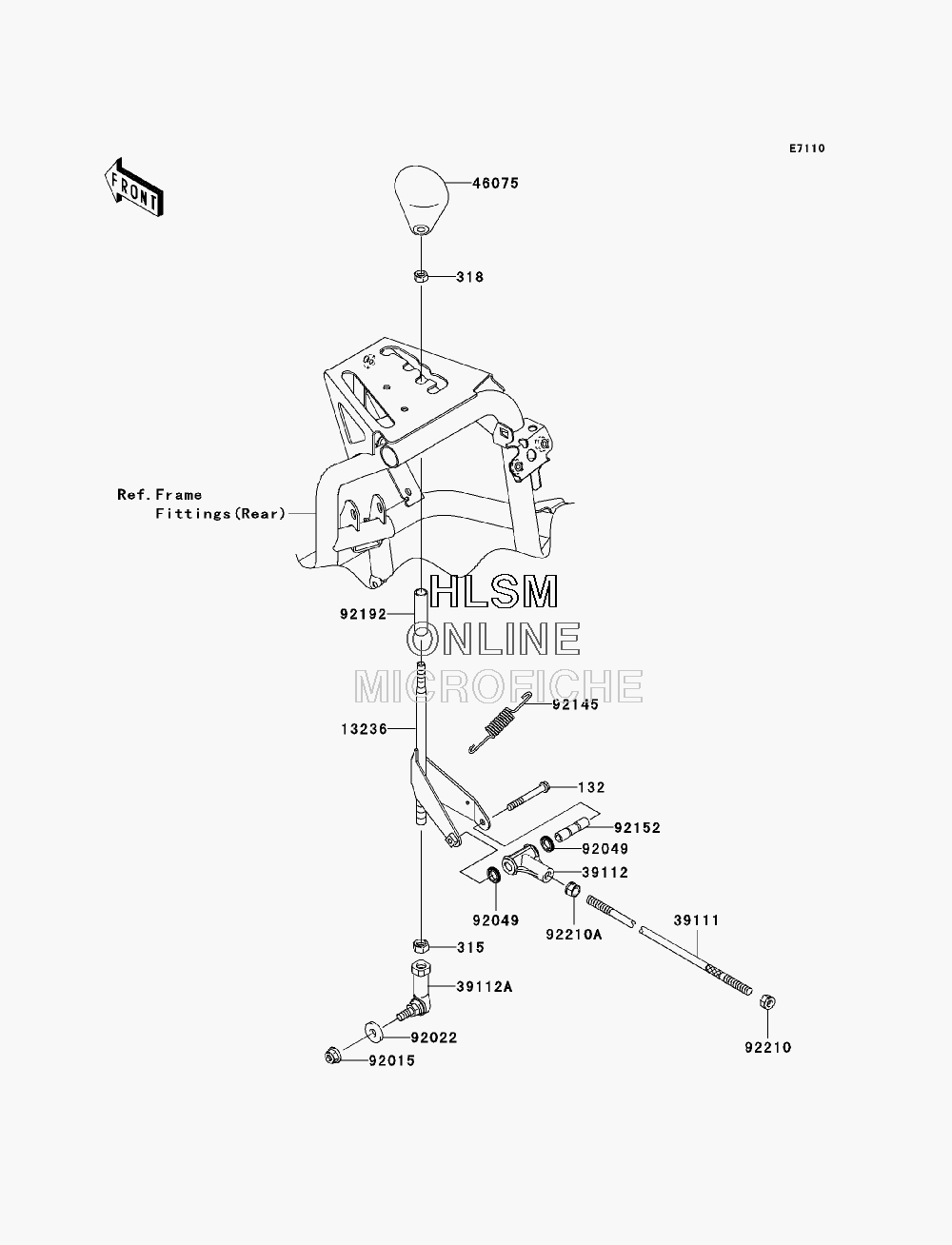

SHIFT LEVER(S) для Kawasaki TERYX 750 FI 4X4 NRA OUTDOORS (KRF750M9F) - 2009 года выпуска`
-
№АртикулНазвание
-
132132BB0650 BOLT-FLANGED-SMALL, 6X50BOLT-FLANGED-SMALL, 6X50
-
315315AA1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
318318BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
1323613236-0152 LEVER-COMPLEVER-COMP
-
3911139111-0040 ROD-TIEROD-TIE
-
3911239112-1079 RODEND-TIERODEND-TIE
-
39112A39112-1084 RODEND-TIE, CONTROL PIVOTRODEND-TIE, CONTROL PIVOT
-
4607546075-0046 GRIP, SHIFTGRIP, SHIFT
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202292022-276 WASHER, 8.5X22X3.2WASHER, 8.5X22X3.2
-
9204992049-1458 SEAL-OILSEAL-OIL
-
9214592145-0130 SPRINGSPRING
-
9215292152-1222 COLLAR, RODEND-TIECOLLAR, RODEND-TIE
-
9219292192-0812 TUBE, 10X13X50TUBE, 10X13X50
-
9221092210-1242 NUT, 8MMNUT, 8MM
-
92210A92210-1284 NUT, LEFT HAND, THREAD 8MMNUT, LEFT HAND, THREAD 8MM
