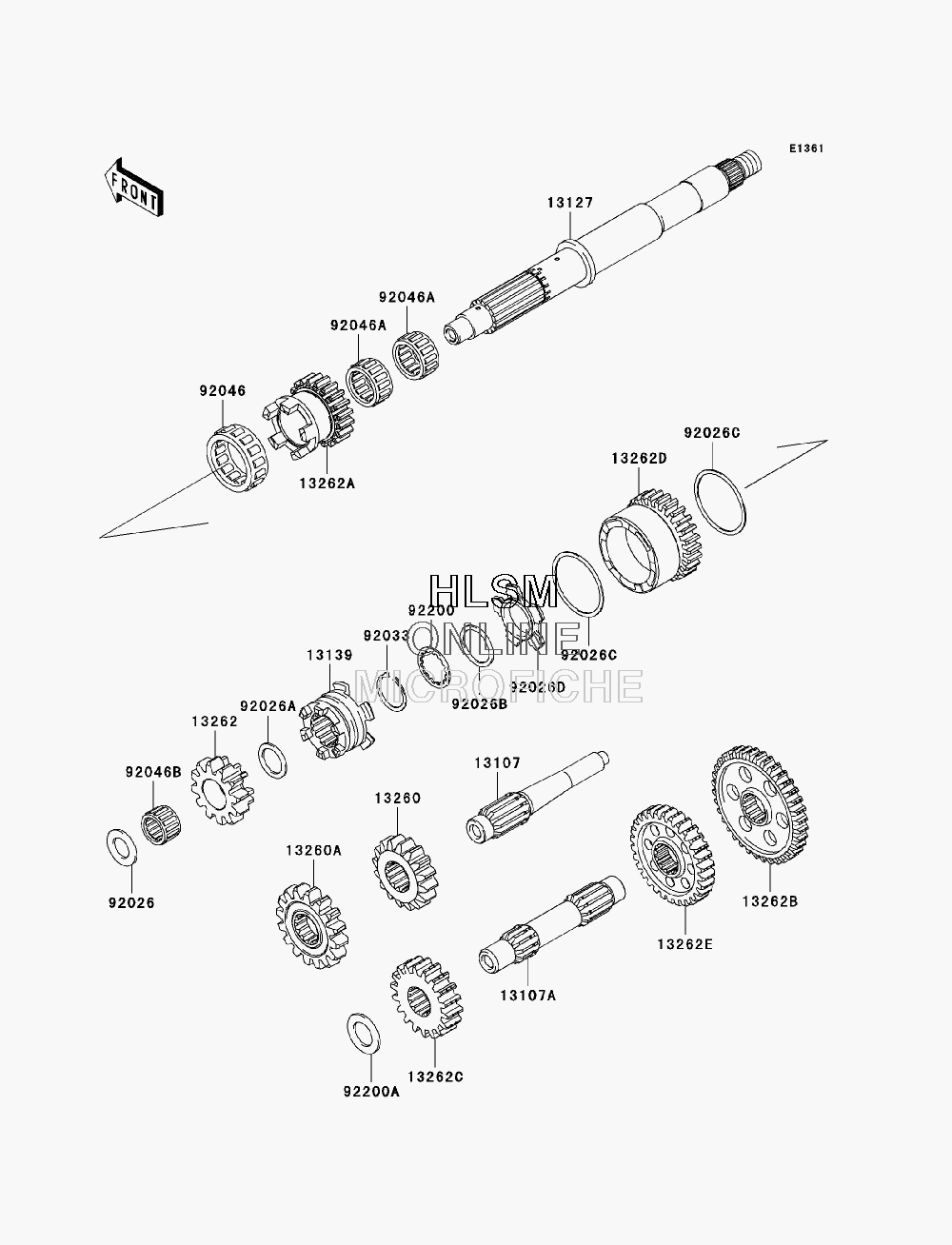

TRANSMISSION для Kawasaki TERYX 750 FI 4X4 NRA OUTDOORS (KRF750M9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 13107
    13107-0158 SHAFT, REVERSE, IDLE
    SHAFT, REVERSE, IDLE
  • 13107A
    13107-0177 SHAFT, COUNTER
    SHAFT, COUNTER
  • 13127
    13127-0049 SHAFT-TRANSMISSION INPUT
    SHAFT-TRANSMISSION INPUT
  • 13139
    13139-0003 SHIFTER
    SHIFTER
  • 13260
    13260-1872 GEAR, OUTPUT REVERSE, 16T
    GEAR, OUTPUT REVERSE, 16T
  • 13260A
    13260-1873 GEAR, DRIVEN REVERSE, 16T
    GEAR, DRIVEN REVERSE, 16T
  • 13262
    13262-0235 GEAR, INPUT REVERSE, 12T
    GEAR, INPUT REVERSE, 12T
  • 13262A
    13262-0545 GEAR, INPUT LOW, 20T
    GEAR, INPUT LOW, 20T
  • 13262B
    13262-0546 GEAR, OUTPUT LOW, 36T
    GEAR, OUTPUT LOW, 36T
  • 13262C
    13262-0547 GEAR, OUTPUT DRIVE, 18T
    GEAR, OUTPUT DRIVE, 18T
  • 13262D
    13262-0573 GEAR, INPUT HI, 26T
    GEAR, INPUT HI, 26T
  • 13262E
    13262-0574 GEAR, OUTPUT HI, 30T
    GEAR, OUTPUT HI, 30T
  • 92026
    92026-1415 SPACER, 17.3X30X2.0
    SPACER, 17.3X30X2.0
  • 92026A
    92026-1568 SPACER, 21.2X29X1.6
    SPACER, 21.2X29X1.6
  • 92026B
    92026-1587 SPACER, 28.2X34.5X1.6
    SPACER, 28.2X34.5X1.6
  • 92026C
    92026-1599 SPACER, 48.2X54.3X1.0
    SPACER, 48.2X54.3X1.0
  • 92026D
    92026-1600 SPACER, HI & LOW
    SPACER, HI & LOW
  • 92033
    92033-1037 RING-SNAP, 25.9X30.6X1.2
    RING-SNAP, 25.9X30.6X1.2
  • 92046
    92046-1276 BEARING-NEEDLE, HIGH GEAR
    BEARING-NEEDLE, HIGH GEAR
  • 92046A
    92046-1278 BEARING-NEEDLE, FWF-283317
    BEARING-NEEDLE, FWF-283317
  • 92046B
    92046-1279 BEARING-NEEDLE, REVERSE GEAR
    BEARING-NEEDLE, REVERSE GEAR
  • 92200
    92200-1240 WASHER, 28.5X34.0X1.5
    WASHER, 28.5X34.0X1.5
  • 92200A
    92200-1351 WASHER, 20.3X33X2.0
    WASHER, 20.3X33X2.0
