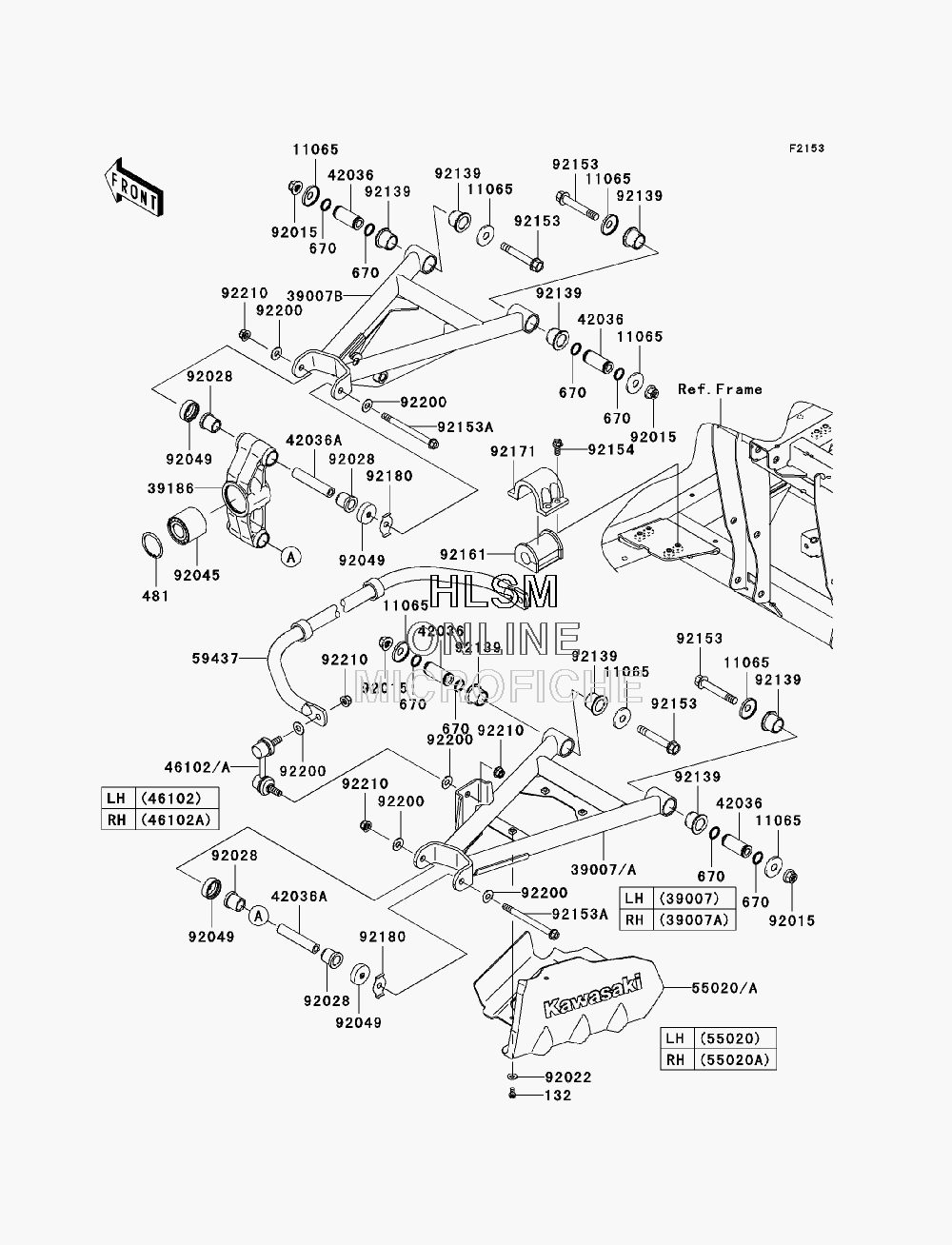

SUSPENSION - REAR для Kawasaki TERYX 750 FI 4X4 LE (KRF750K9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 132
    132BB0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 481
    481J5200 CIRCLIP
    CIRCLIP
  • 670
    670B2018 O RING, 18MM
    O RING, 18MM
  • 11065
    11065-0253 CAP
    CAP
  • 39007
    39007-0145 ARM-SUSP, REAR, LWR, LEFT HAND
    ARM-SUSP, REAR, LWR, LEFT HAND
  • 39007A
    39007-0146 ARM-SUSP, REAR, LWR, RIGHT HAND
    ARM-SUSP, REAR, LWR, RIGHT HAND
  • 39007B
    39007-0155 ARM-SUSP, REAR, UPP, LEFT HAND & RIGHT HAND
    ARM-SUSP, REAR, UPP, LEFT HAND & RIGHT HAND
  • 39186
    39186-0071 KNUCKLE, REAR, LEFT HAND & RIGHT HAND
    KNUCKLE, REAR, LEFT HAND & RIGHT HAND
  • 42036
    42036-0062 SLEEVE
    SLEEVE
  • 42036A
    42036-1190 SLEEVE, 10X17X85.6
    SLEEVE, 10X17X85.6
  • 46102
    46102-0100 ROD, STABILIZER, LEFT HAND
    ROD, STABILIZER, LEFT HAND
  • 46102A
    46102-0101 ROD, STABILIZER, RIGHT HAND
    ROD, STABILIZER, RIGHT HAND
  • 55020
    55020-0523 GUARD, REAR, LEFT HAND
    GUARD, REAR, LEFT HAND
  • 55020A
    55020-0524 GUARD, REAR, RIGHT HAND
    GUARD, REAR, RIGHT HAND
  • 59437
    59437-0008 STABILIZER
    STABILIZER
  • 92015
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92022
    92022-1344 WASHER, 7X16X1.2
    WASHER, 7X16X1.2
  • 92028
    92028-1466 BUSHING
    BUSHING
  • 92045
    92045-0102 BEARING-BALL, DAC2552W-7CS31
    BEARING-BALL, DAC2552W-7CS31
  • 92049
    92049-1198 SEAL-OIL, KNUCKLE
    SEAL-OIL, KNUCKLE
  • 92139
    92139-0231 BUSHING
    BUSHING
  • 92153
    92153-1733 BOLT, FLANGED, 12X76.5
    BOLT, FLANGED, 12X76.5
  • 92153A
    92153-1966 BOLT, FLANGED, 10X117
    BOLT, FLANGED, 10X117
  • 92154
    92154-0100 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 92161
    92161-0724 DAMPER
    DAMPER
  • 92171
    92171-1695 CLAMP
    CLAMP
  • 92180
    92180-0292 SHIM
    SHIM
  • 92200
    92200-2009 WASHER, 10.3X23X1.6
    WASHER, 10.3X23X1.6
  • 92210
    92210-0276 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
