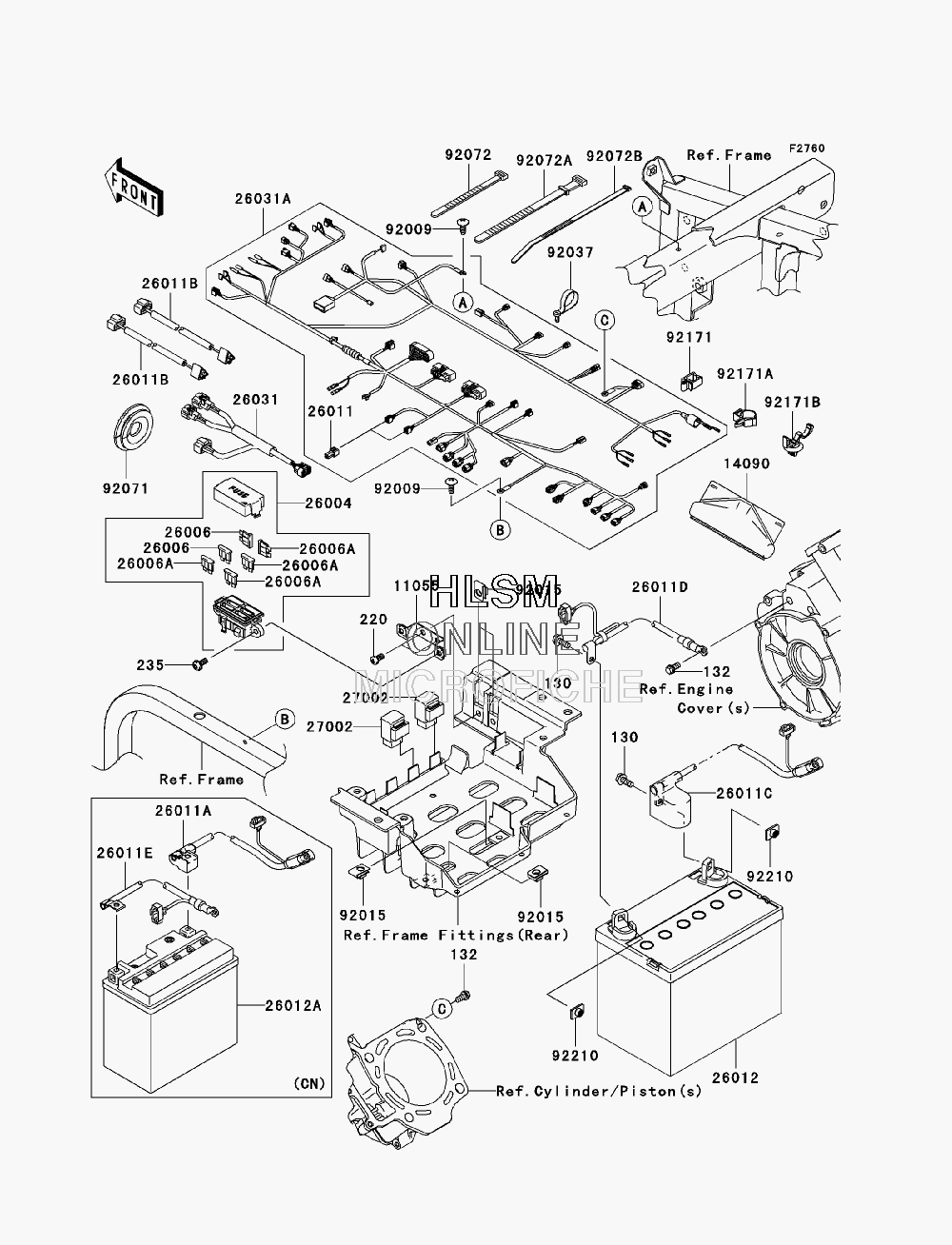

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki TERYX 750 FI 4X4 LE (KRF750K9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0616 BOLT-FLANGED, 6X16 (USA ONLY)
    BOLT-FLANGED, 6X16 (USA ONLY)
  • 132
    132BD0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 220
    220AA0612 SCREW-PAN-CROSS, 6X12
    SCREW-PAN-CROSS, 6X12
  • 235
    235AA0614 SCREW-PAN-WP-CROSS, 6X14
    SCREW-PAN-WP-CROSS, 6X14
  • 11055
    11055-1391 BRACKET, FUSE & CONTROL UNIT
    BRACKET, FUSE & CONTROL UNIT
  • 14090
    14090-1331 COVER, COUPLER
    COVER, COUPLER
  • 26004
    26004-0016 FUSE-ASSY
    FUSE-ASSY
  • 26006
    26006-0004 FUSE, 30A
    FUSE, 30A
  • 26006A
    26006-0005 FUSE, 10A
    FUSE, 10A
  • 26011
    26011-0037 WIRE-LEAD
    WIRE-LEAD
  • 26011A
    26011-0130 WIRE-LEAD, BATTERY (+) (CANADA ONLY)
    WIRE-LEAD, BATTERY (+) (CANADA ONLY)
  • 26011B
    26011-0143 WIRE-LEAD, HEAD LAMP
    WIRE-LEAD, HEAD LAMP
  • 26011C
    26011-0190 WIRE-LEAD, BATTERY (+) (USA ONLY)
    WIRE-LEAD, BATTERY (+) (USA ONLY)
  • 26011D
    26011-0231 WIRE-LEAD, BATTERY (-) (USA ONLY)
    WIRE-LEAD, BATTERY (-) (USA ONLY)
  • 26011E
    26011-0232 WIRE-LEAD, BATTERY (-) (CANADA ONLY)
    WIRE-LEAD, BATTERY (-) (CANADA ONLY)
  • 26012
    26012-0107 BATTERY, 12V 14AH (USA ONLY)
    BATTERY, 12V 14AH (USA ONLY)
  • 26012A
    26012-1414 BATTERY, MF, KMX14-BS, 12V 12AH (CANADA ONLY)
    BATTERY, MF, KMX14-BS, 12V 12AH (CANADA ONLY)
  • 26031
    26031-0752 HARNESS, SUB
    HARNESS, SUB
  • 26031A
    26031-0781 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-1062 RELAY-ASSY
    RELAY-ASSY
  • 92009
    92009-1166 SCREW, TAPPING, 6X16
    SCREW, TAPPING, 6X16
  • 92015
    92015-1602 NUT, 6MM
    NUT, 6MM
  • 92037
    92037-1903 CLAMP, SPEED, L=80.5
    CLAMP, SPEED, L=80.5
  • 92071
    92071-0030 GROMMET
    GROMMET
  • 92072
    92072-030 BAND, L=123
    BAND, L=123
  • 92072A
    92072-056 BAND, L=186
    BAND, L=186
  • 92072B
    92072-3509 BAND, L=292.1
    BAND, L=292.1
  • 92171
    92171-0290 CLAMP
    CLAMP
  • 92171A
    92171-0316 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92171B
    92171-0453 CLAMP
    CLAMP
  • 92210
    92210-1352 NUT, PLATE, 6MM (USA ONLY)
    NUT, PLATE, 6MM (USA ONLY)
