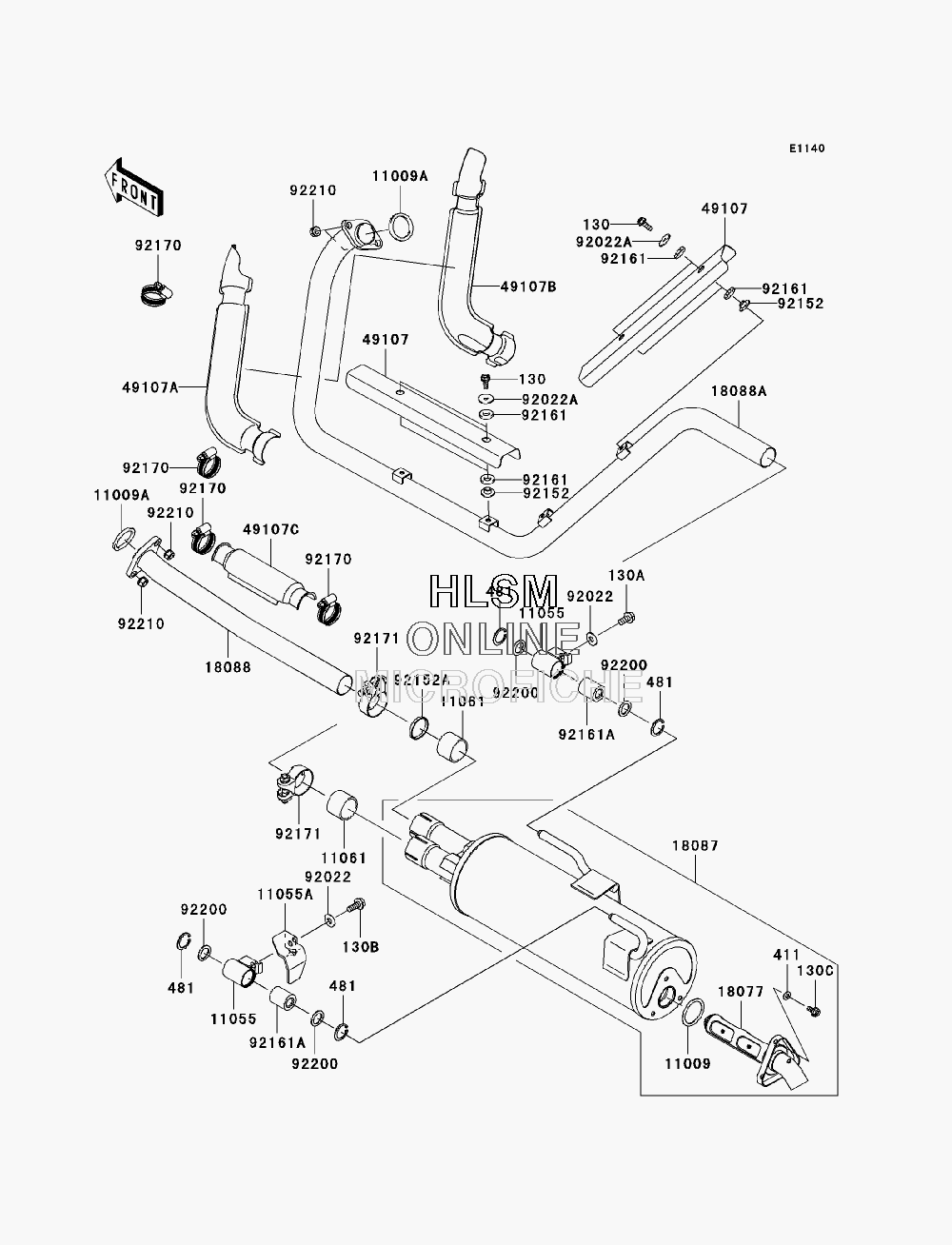

MUFFLER(S) для Kawasaki TERYX 750 FI 4X4 LE (KRF750J9FA) - 2009 года выпуска`
-
№АртикулНазвание
-
130130BD0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130CB0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130B130CB0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130C130CD0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
411411S0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
481481J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
1100911009-1856 GASKET, EXHAUST PIPE HOLDERGASKET, EXHAUST PIPE HOLDER
-
11009A11009-1894 GASKET, EXHAUST HOLDERGASKET, EXHAUST HOLDER
-
1105511055-0499 BRACKETBRACKET
-
11055A11055-1374 BRACKETBRACKET
-
1106111061-0360 GASKET, MUFFLER CONNECTINGGASKET, MUFFLER CONNECTING
-
1807718077-0027 AREARESTER-SPARKAREARESTER-SPARK
-
1808718087-0177 MUFFLERMUFFLER
-
1808818088-0430 PIPE-EXHAUST, REARPIPE-EXHAUST, REAR
-
18088A18088-0490 PIPE-EXHAUST, FRONTPIPE-EXHAUST, FRONT
-
4910749107-0118 COVER-EXHAUST PIPE, MIDDLECOVER-EXHAUST PIPE, MIDDLE
-
49107A49107-0147 COVER-EXHAUST PIPE, FRONT, LEFT HANDCOVER-EXHAUST PIPE, FRONT, LEFT HAND
-
49107B49107-0148 COVER-EXHAUST PIPE, FRONT, RIGHT HANDCOVER-EXHAUST PIPE, FRONT, RIGHT HAND
-
49107C49107-0149 COVER-EXHAUST PIPE, REARCOVER-EXHAUST PIPE, REAR
-
9202292022-1317 WASHER, 8.5X20X1.6, BLACKWASHER, 8.5X20X1.6, BLACK
-
92022A92022-237 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
-
9215292152-0423 COLLARCOLLAR
-
92152A92152-0741 COLLARCOLLAR
-
9216192161-0319 DAMPERDAMPER
-
92161A92161-0594 DAMPERDAMPER
-
9217092170-1036 CLAMPCLAMP
-
9217192171-1921 CLAMPCLAMP
-
9220092200-0421 WASHER, 17X24.5X1.2WASHER, 17X24.5X1.2
-
9221092210-1242 NUT, 8MMNUT, 8MM
