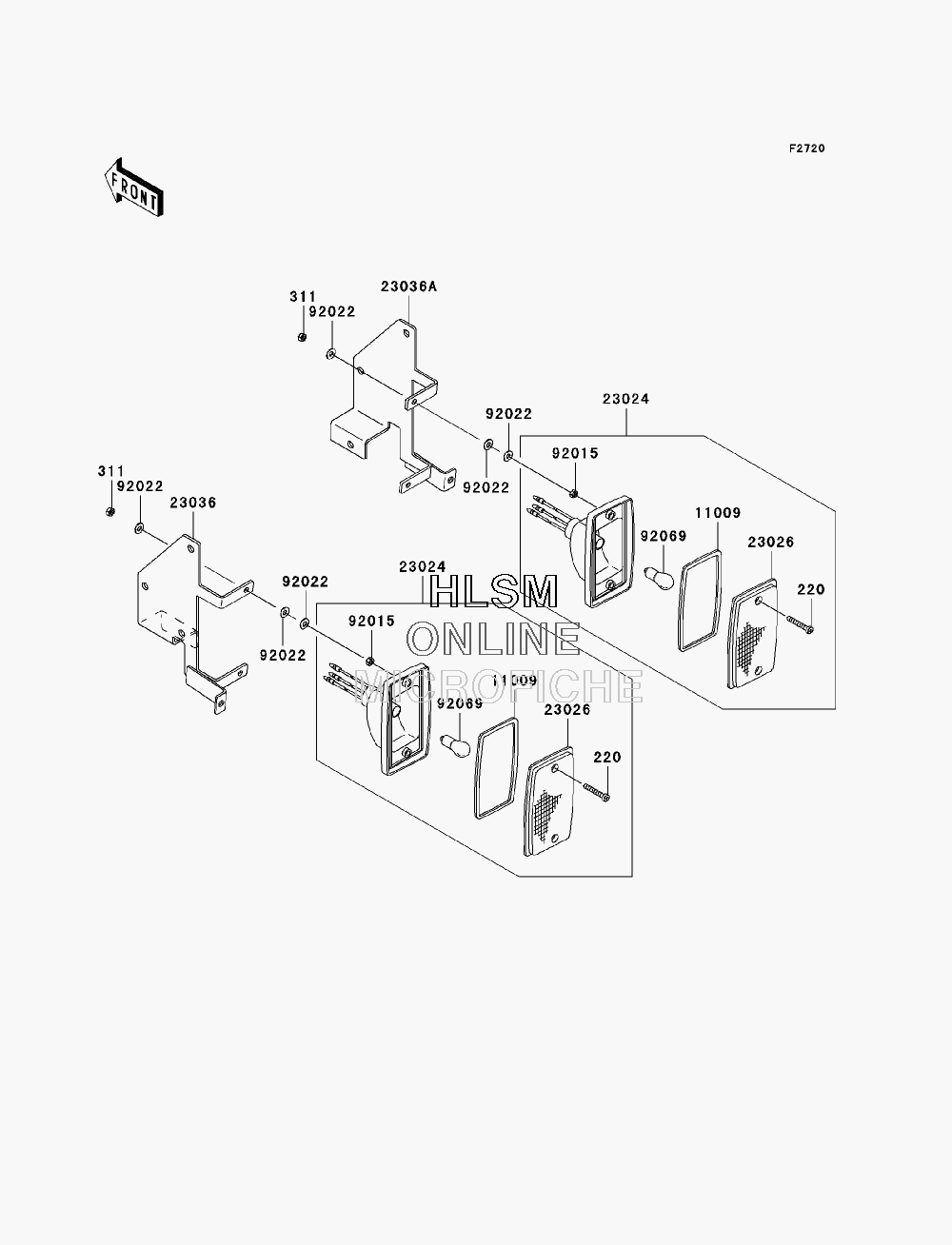

TAILLIGHT(S) для Kawasaki TERYX 750 FI 4X4 LE (KRF750J9FA) - 2009 года выпуска
-
№АртикулНазвание
-
220220AA0425 SCREW-PAN-CROS, 4X25SCREW-PAN-CROS, 4X25
-
311311AA0400 NUT-HEXNUT-HEX
-
1100911009-4004 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
2302423024-1139 LAMP-ASSY-TAILLAMP-ASSY-TAIL
-
2302623026-1239 LENS, TAIL LAMPLENS, TAIL LAMP
-
2303623036-0010 BRACKET-TAIL LAMP, LEFT HANDBRACKET-TAIL LAMP, LEFT HAND
-
23036A23036-0011 BRACKET-TAIL LAMP, RIGHT HANDBRACKET-TAIL LAMP, RIGHT HAND
-
9201592015-1550 NUT, 4MMNUT, 4MM
-
9202292022-563 WASHERWASHER
-
9206992069-059 BULB, 12V 27/8WBULB, 12V 27/8W
