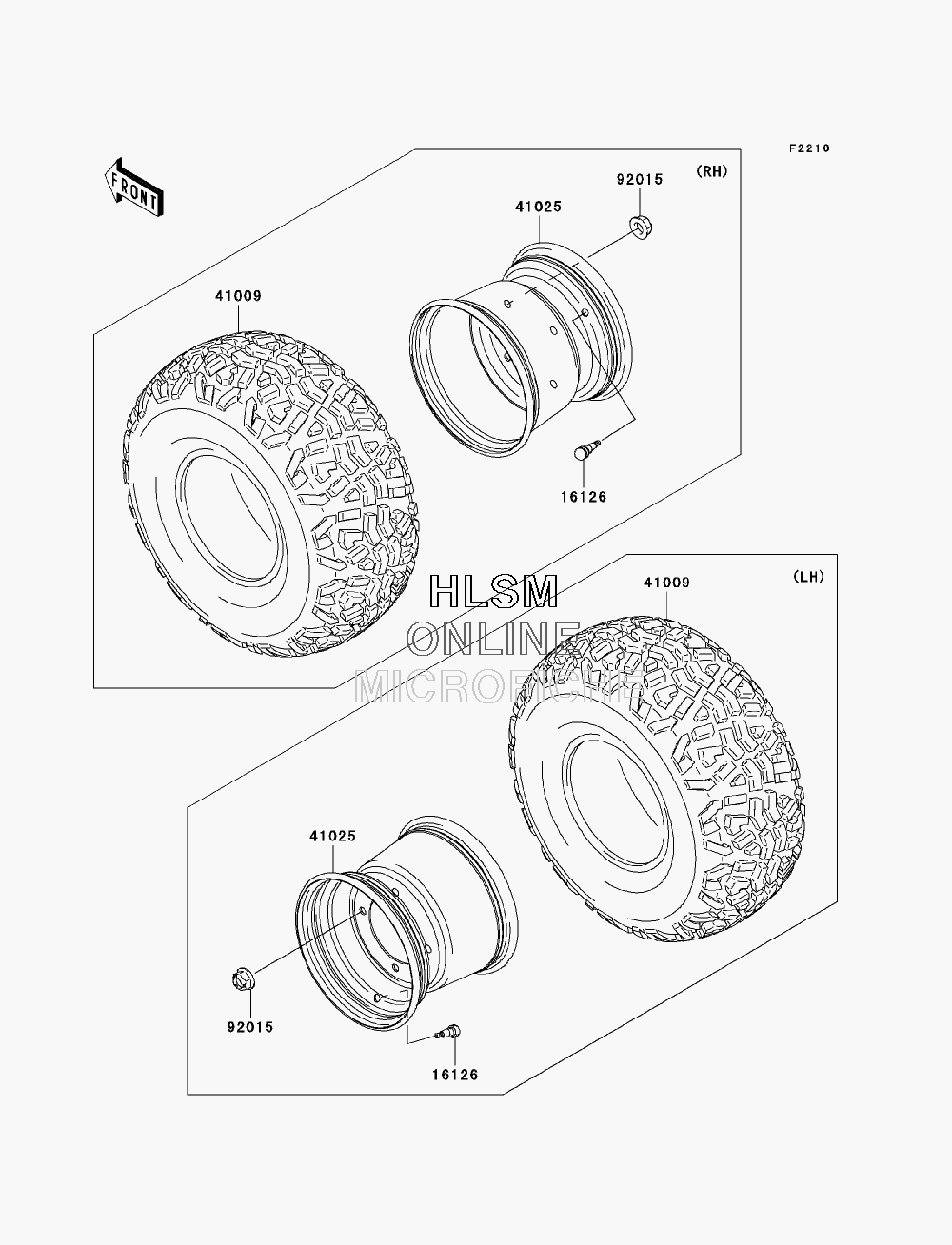

WHEELS - TIRES для Kawasaki MULE 4010 4X4 HARDWOODS GREEN HD (KAF620N9F) - 2009 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVEVALVE
-
4100941009-0166 TIRE, 23X11.00-10 4PR, KT869(D)TIRE, 23X11.00-10 4PR, KT869(D)
-
4102541025-7504-397 RIM, 10X8.5AT, F. S. BLACK (FOR 826)RIM, 10X8.5AT, F. S. BLACK (FOR 826)
-
9201592015-1706 NUT, 12MMNUT, 12MM
Все узлы модели:
- AIR CLEANER
- AIR CLEANER W/ BELT CONVERTER
- BEVEL GEAR CASE
- BRAKE - FRONT W/ HUB
- BRAKE - MASTER CYLINDER
- BRAKE - REAR W/ HUBS
- BRAKE PEDAL W/ THROTTLE LEVER
- BRAKE PIPING
- CABLES
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- COLOR INFO
- CONVERTER COVER
- CRANKCASE
- CRANKSHAFT W/ PISTON(S)
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL
- DRIVE CONVERTER
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (PROPELLER)
- DRIVE SHAFT (REAR)
- DRIVEN CONVERTER W/ DRIVE BELT
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FENDER(S)
- FLAP
- FRAME
- FRAME FITTINGS
- FRONT BOX
- FUEL EVAPORATIVE SYSTEM
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR W/ IGNITION SYSTEM
- GUARD(S) / CAB FRAME
- HEADLIGHT(S)
- LABELS
- MANUALS
- MUFFLER(S)
- OIL PAN W/ OIL FILTER
- RADIATOR
- SEAT
- SHIFT LEVER(S)
- SIDE COVERS/CHAIN COVER
- STARTER MOTOR (FD620DE485833 AND ABOVE)
- STARTER MOTOR (UP TO FD620DE485832)
- STEERING WHEEL
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER(S)
- SWITCHES
- TAILLIGHT(S)
- THROTTLE BODY
- THROTTLE CONTROL
- TRANSMISSION
- VALVE(S) W/ CAMSHAFT(S)
- WATER PUMP
- • WHEELS - TIRES
