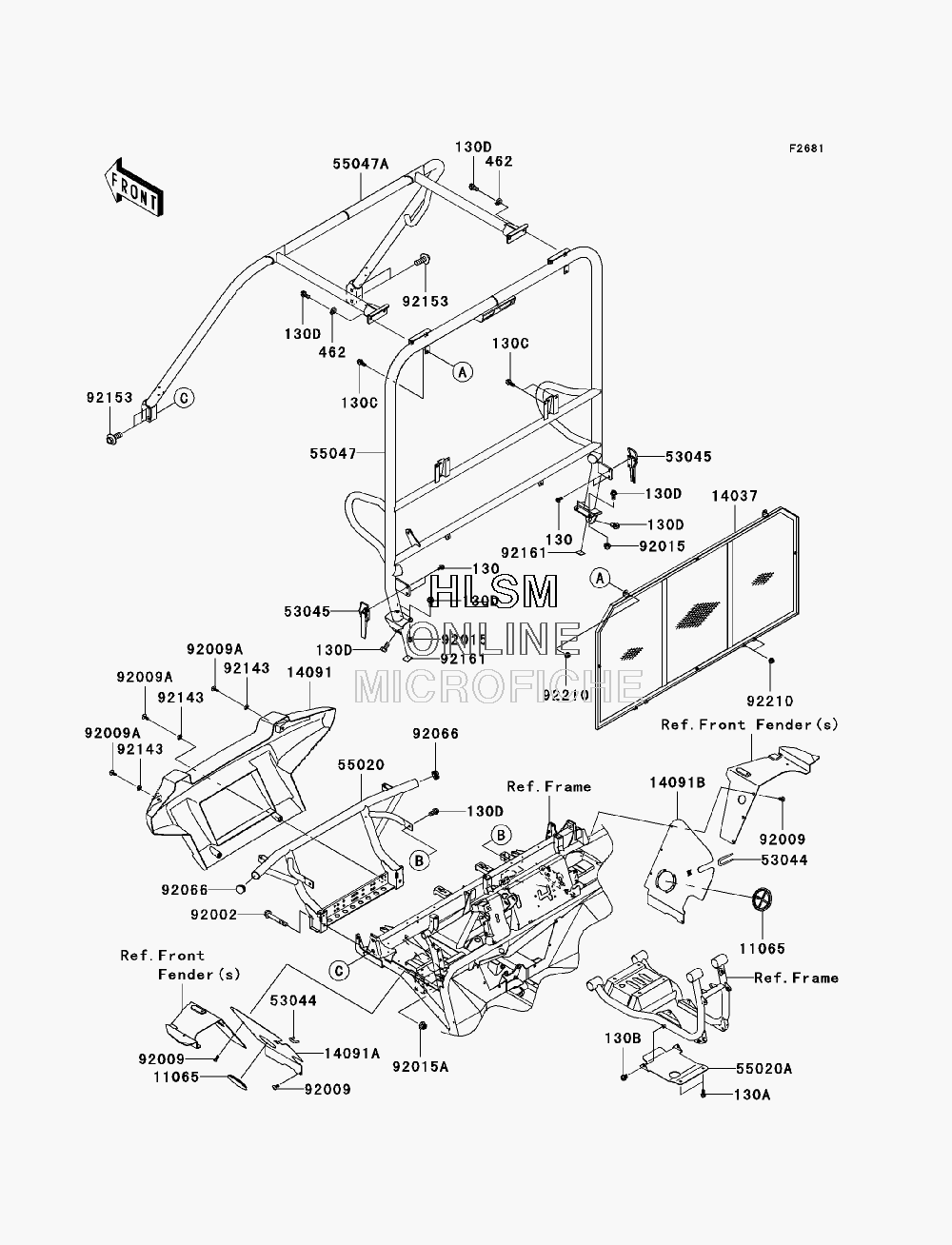

GUARD(S) / CAB FRAME для Kawasaki MULE 4010 4X4 HARDWOODS GREEN HD (KAF620N9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0614 BOLT-FLANGED, 6X14
    BOLT-FLANGED, 6X14
  • 130A
    130BB0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130B
    130BB0812 BOLT-FLANGED, 8X12
    BOLT-FLANGED, 8X12
  • 130C
    130BB0820 BOLT-FLANGED, 8X20
    BOLT-FLANGED, 8X20
  • 130D
    130BB1020 BOLT-FLANGED, 10X20
    BOLT-FLANGED, 10X20
  • 462
    462DB1000 WASHER-SPRING, 10MM
    WASHER-SPRING, 10MM
  • 11065
    11065-1053-6Z CAP, F.BLACK (FOR 826)
    CAP, F.BLACK (FOR 826)
  • 14037
    14037-0016-388 SCREEN, REAR GUARD, T. BLACK (FOR 826)
    SCREEN, REAR GUARD, T. BLACK (FOR 826)
  • 14091
    14091-0817-6Z COVER, FRONT GUARD, F. BLACK (FOR 826)
    COVER, FRONT GUARD, F. BLACK (FOR 826)
  • 14091A
    14091-1758 COVER, FRONT, LEFT HAND
    COVER, FRONT, LEFT HAND
  • 14091B
    14091-1759 COVER, FRONT, RIGHT HAND
    COVER, FRONT, RIGHT HAND
  • 53044
    53044-1137 TRIM
    TRIM
  • 53045
    53045-1063 HOOK-ASSY
    HOOK-ASSY
  • 55020
    55020-0387 GUARD, FRONT
    GUARD, FRONT
  • 55020A
    55020-7506 GUARD, GEAR CASE
    GUARD, GEAR CASE
  • 55047
    55047-0018-388 BAR-COMP, T. BLACK (FOR 826)
    BAR-COMP, T. BLACK (FOR 826)
  • 55047A
    55047-7514-388 BAR-COMP, FRONT, T. BLACK (FOR 826)
    BAR-COMP, FRONT, T. BLACK (FOR 826)
  • 92002
    92002-1661 BOLT, FLANGED, 12X75
    BOLT, FLANGED, 12X75
  • 92009
    92009-1166 SCREW, TAPPING, 6X16
    SCREW, TAPPING, 6X16
  • 92009A
    92009-1621 SCREW, 6X16
    SCREW, 6X16
  • 92015
    92015-1428 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92015A
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92066
    92066-7503 PLUG
    PLUG
  • 92143
    92143-1087 COLLAR
    COLLAR
  • 92153
    92153-1282 BOLT, FLANGED, 14X36
    BOLT, FLANGED, 14X36
  • 92161
    92161-0020 DAMPER
    DAMPER
  • 92210
    92210-0005 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
