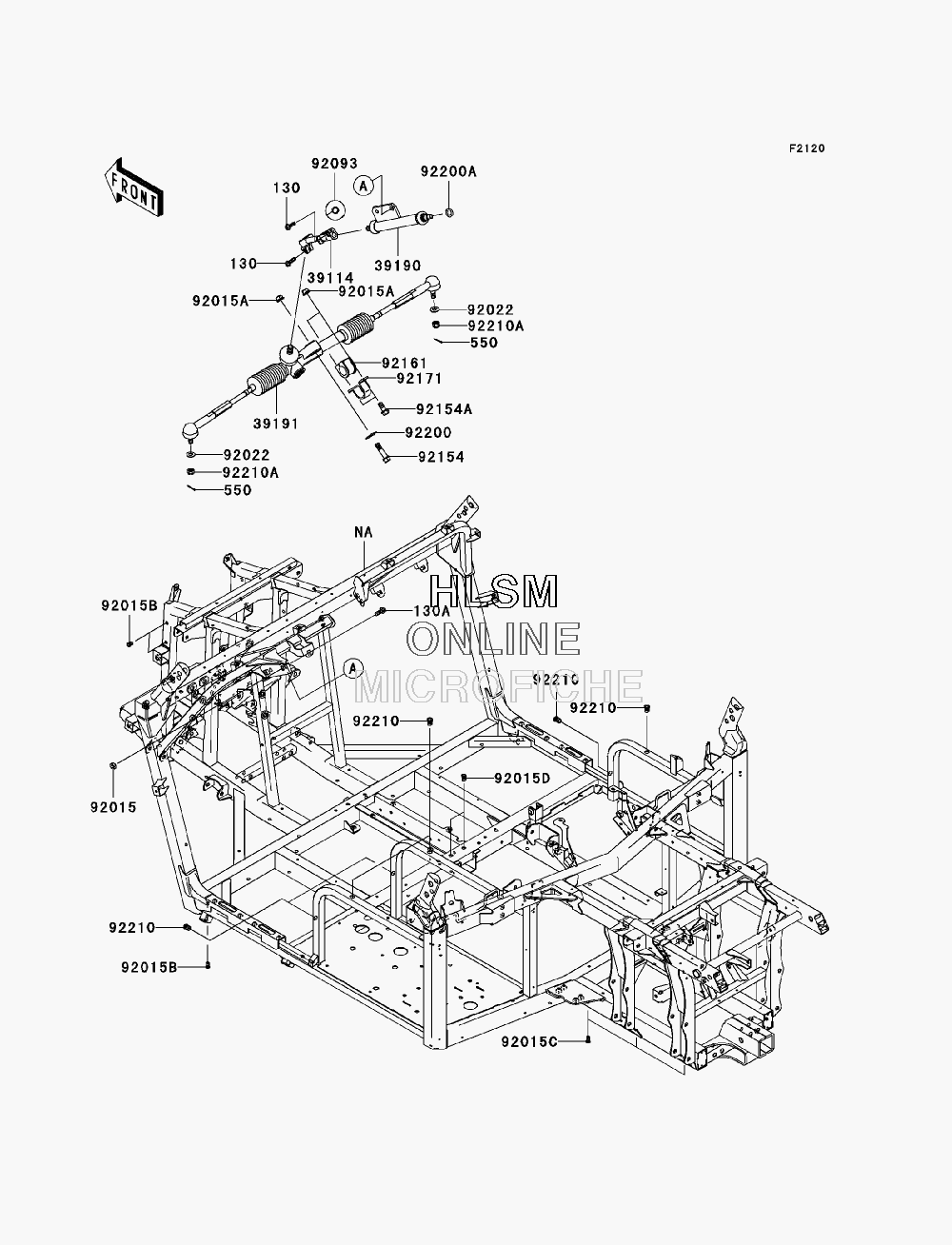

FRAME для Kawasaki TERYX 750 4X4 NRA OUTDOORS (KRF750F8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0825 BOLT-FLANGED, 8X25
    BOLT-FLANGED, 8X25
  • 130A
    130BB1025 BOLT-FLANGED, 10X25
    BOLT-FLANGED, 10X25
  • 550
    550AA3025 PIN-COTTER, 3.0X25
    PIN-COTTER, 3.0X25
  • 39114
    39114-0011 SHAFT-COMP-STRG
    SHAFT-COMP-STRG
  • 39190
    39190-0004 SHAFT-ASSY-STEERING
    SHAFT-ASSY-STEERING
  • 39191
    39191-0011 GEAR-ASSY-STEERING
    GEAR-ASSY-STEERING
  • 92015
    92015-1189 NUT, LOCK, 10MM, BLACK
    NUT, LOCK, 10MM, BLACK
  • 92015A
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92015B
    92015-1791 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
  • 92015C
    92015-1792 NUT, POP, 6MM, L=16.5
    NUT, POP, 6MM, L=16.5
  • 92015D
    92015-1793 NUT, POP, 8MM, L=16.5
    NUT, POP, 8MM, L=16.5
  • 92022
    92022-1831 WASHER
    WASHER
  • 92093
    92093-0070 SEAL, STEERING SHAFT
    SEAL, STEERING SHAFT
  • 92154
    92154-0072 BOLT, FLANGED, 12X60
    BOLT, FLANGED, 12X60
  • 92154A
    92154-0073 BOLT, FLANGED, 12X27
    BOLT, FLANGED, 12X27
  • 92161
    92161-0506 DAMPER, STEERING GEAR
    DAMPER, STEERING GEAR
  • 92171
    92171-1866 CLAMP, STEERING GEAR
    CLAMP, STEERING GEAR
  • 92200
    92200-0379 WASHER, 12.3X38X2.0
    WASHER, 12.3X38X2.0
  • 92200A
    92200-0460 WASHER, 15X25X1.6
    WASHER, 15X25X1.6
  • 92210
    92210-0352 NUT, POP, 10MM
    NUT, POP, 10MM
  • 92210A
    92210-0395 NUT, CASTLE, 12MM
    NUT, CASTLE, 12MM
