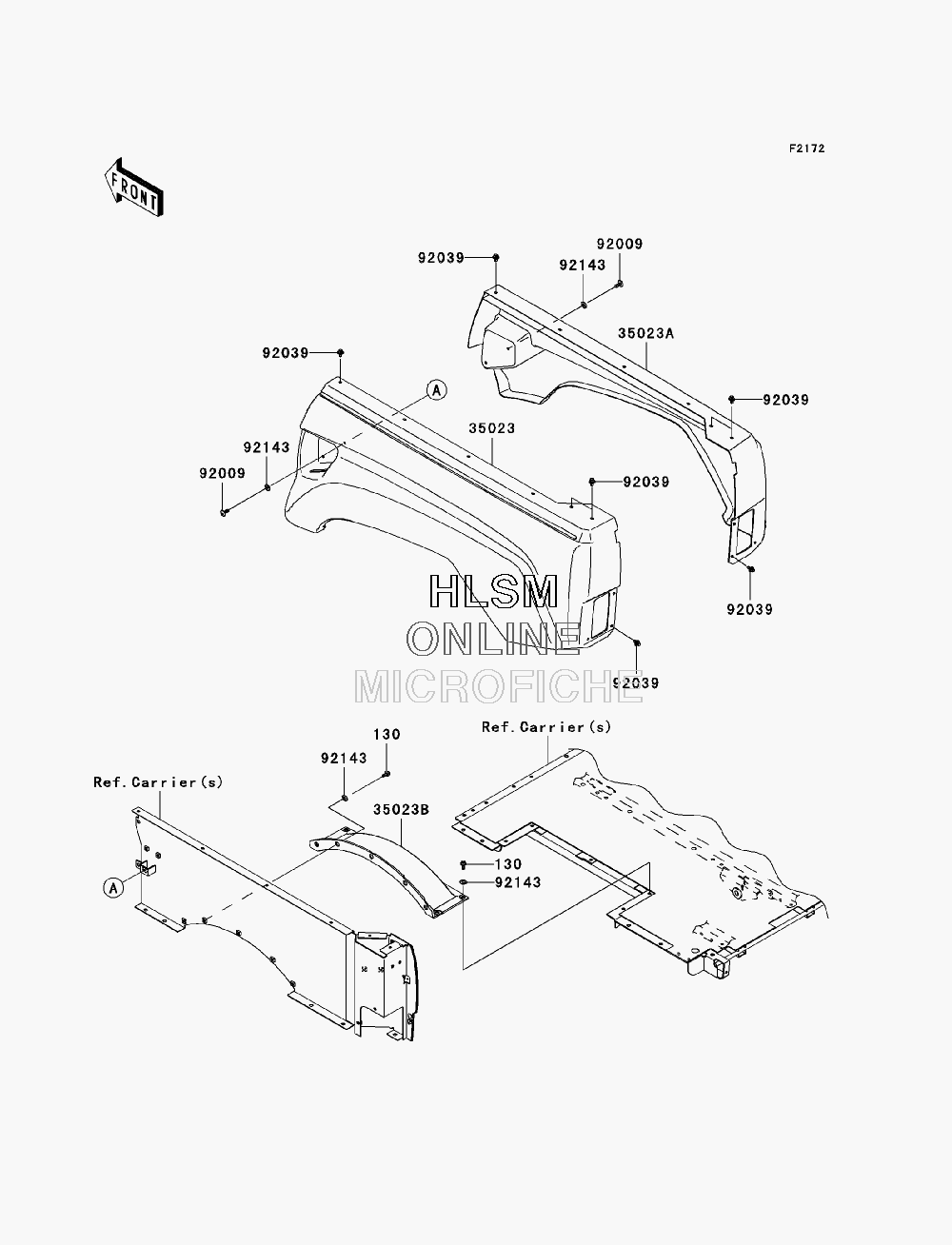

FENDER - REAR для Kawasaki TERYX 750 4X4 NRA OUTDOORS (KRF750F8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
3502335023-0130-16P FENDER-REAR, REAR, LEFT HAND, CAMOUFLAGE (FOR 16P)FENDER-REAR, REAR, LEFT HAND, CAMOUFLAGE (FOR 16P)
-
35023A35023-0131-16P FENDER-REAR, REAR, RIGHT HAND, CAMOUFLAGE (FOR 16P)FENDER-REAR, REAR, RIGHT HAND, CAMOUFLAGE (FOR 16P)
-
35023B35023-0151 FENDER-REARFENDER-REAR
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9203992039-1227 RIVETRIVET
-
9214392143-1087 COLLARCOLLAR
