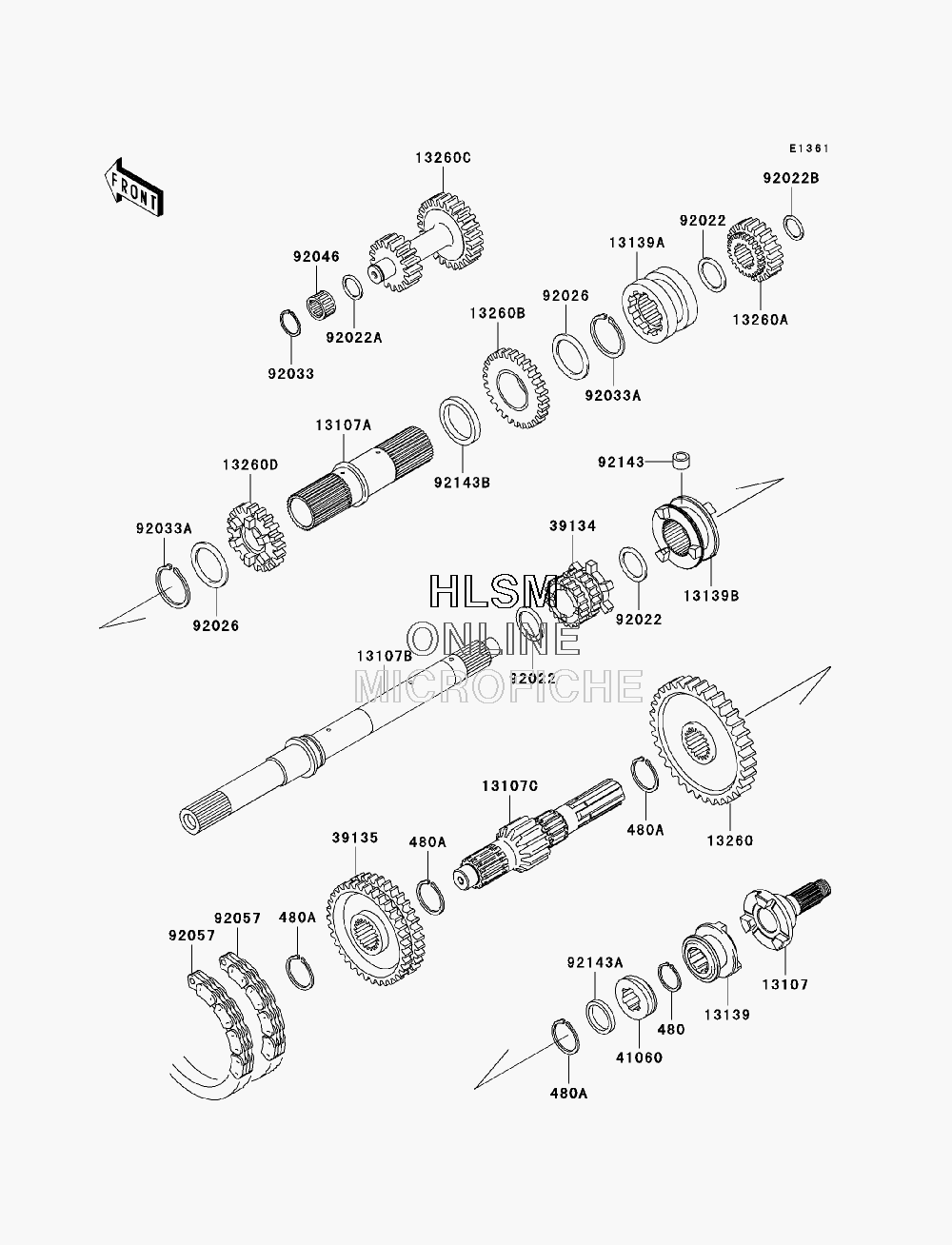

TRANSMISSION для Kawasaki MULE 3010 DIESEL 4X4 (KAF950B7F) - 2007 года выпуска
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
480A480J3000 CIRCLIP-TYPE-C, 30MMCIRCLIP-TYPE-C, 30MM
-
1310713107-0106 SHAFT, 2WD/4WDSHAFT, 2WD/4WD
-
13107A13107-1309 SHAFT, INPUT OUTERSHAFT, INPUT OUTER
-
13107B13107-1512 SHAFT, INPUTSHAFT, INPUT
-
13107C13107-1517 SHAFT, OUTPUT, 14TSHAFT, OUTPUT, 14T
-
1313913139-0010 SHIFTER, 2WD/4WDSHIFTER, 2WD/4WD
-
13139A13139-1069 SHIFTER, SPEED, HI/LOWSHIFTER, SPEED, HI/LOW
-
13139B13139-1072 SHIFTER, FR/REARSHIFTER, FR/REAR
-
1326013260-1288 GEAR, OUTPUT REVERSE, 51TGEAR, OUTPUT REVERSE, 51T
-
13260A13260-1289 GEAR, INPUT REDUCTION, 20TGEAR, INPUT REDUCTION, 20T
-
13260B13260-1290 GEAR, INPUT REDUCTION, 28TGEAR, INPUT REDUCTION, 28T
-
13260C13260-1291 GEAR, REDUCTION, 17T & 25TGEAR, REDUCTION, 17T & 25T
-
13260D13260-1462 GEAR, INPUT 28TGEAR, INPUT 28T
-
3913439134-1055 SPROCKET-DRIVE, 20TSPROCKET-DRIVE, 20T
-
3913539135-1055 SPROCKET-DRIVEN, 41TSPROCKET-DRIVEN, 41T
-
4106041060-1147 GEAR-METER SCREWGEAR-METER SCREW
-
9202292022-1109 WASHER, 25.3X33X1WASHER, 25.3X33X1
-
92022A92022-255 WASHER, 17.3X28X1WASHER, 17.3X28X1
-
92022B92022-270 WASHER, 17.3X30X1.4WASHER, 17.3X30X1.4
-
9202692026-1375 SPACER, 35.3X44X0.5SPACER, 35.3X44X0.5
-
9203392033-032 RING-SNAPRING-SNAP
-
92033A92033-1269 RING-SNAPRING-SNAP
-
9204692046-1184 BEARING-NEEDLE, K17X23X13.8BEARING-NEEDLE, K17X23X13.8
-
9205792057-1364 CHAIN, REVERSE, 81 RIGHT HAND 2520, 54LCHAIN, REVERSE, 81 RIGHT HAND 2520, 54L
-
9214392143-1497 COLLAR, 8X14X10.5COLLAR, 8X14X10.5
-
92143A92143-1597 COLLAR, 25X32X4.5COLLAR, 25X32X4.5
-
92143B92143-1599 COLLARCOLLAR
