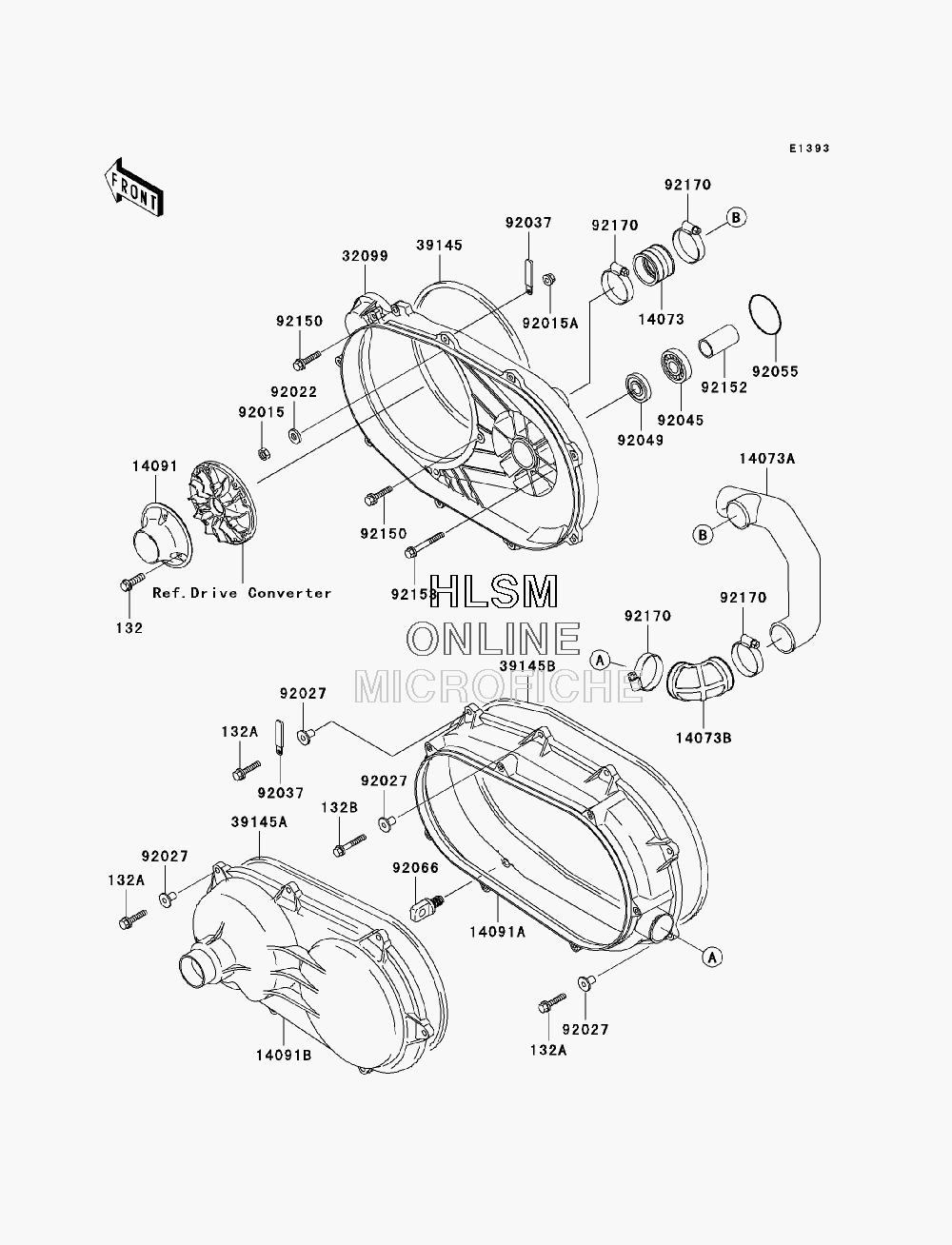

CONVERTER COVER для Kawasaki MULE 3010 DIESEL 4X4 (KAF950B7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0620 BOLT-FLANGED-SMALL, 6X20
    BOLT-FLANGED-SMALL, 6X20
  • 132A
    132J0630 BOLT-FLANGED-SMALL, 6X30
    BOLT-FLANGED-SMALL, 6X30
  • 132B
    132J0635 BOLT-FLANGED-SMALL, 6X35
    BOLT-FLANGED-SMALL, 6X35
  • 14073
    14073-1324 DUCT
    DUCT
  • 14073A
    14073-1856 DUCT
    DUCT
  • 14073B
    14073-1857 DUCT
    DUCT
  • 14091
    14091-1520 COVER, FAN
    COVER, FAN
  • 14091A
    14091-1555 COVER, MIDDLE
    COVER, MIDDLE
  • 14091B
    14091-1556 COVER, BELT CONVERTER
    COVER, BELT CONVERTER
  • 32099
    32099-1215 CASE, BELT CONVERTER
    CASE, BELT CONVERTER
  • 39145
    39145-1115 TRIM-SEAL, BELT CONVERTER CASE
    TRIM-SEAL, BELT CONVERTER CASE
  • 39145A
    39145-1117 TRIM-SEAL, MIDDLE COVER
    TRIM-SEAL, MIDDLE COVER
  • 39145B
    39145-1126 TRIM-SEAL, BELT CONVERTER
    TRIM-SEAL, BELT CONVERTER
  • 92015
    92015-1189 NUT, LOCK, 10MM, BLACK
    NUT, LOCK, 10MM, BLACK
  • 92015A
    92015-1675 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92022
    92022-1876 WASHER, 10.5X18X2.5
    WASHER, 10.5X18X2.5
  • 92027
    92027-1920 COLLAR, L=14.1
    COLLAR, L=14.1
  • 92037
    92037-1069 CLAMP, L=60
    CLAMP, L=60
  • 92045
    92045-1378 BEARING-BALL, 62/28LLB
    BEARING-BALL, 62/28LLB
  • 92049
    92049-1297 SEAL-OIL, TC28X47X7
    SEAL-OIL, TC28X47X7
  • 92055
    92055-1327 RING-O, 67.6X3.5
    RING-O, 67.6X3.5
  • 92066
    92066-1580 PLUG, DRAIN, 11X19
    PLUG, DRAIN, 11X19
  • 92150
    92150-1103 BOLT, FLANGED, 8X28
    BOLT, FLANGED, 8X28
  • 92152
    92152-1177 COLLAR, 28.1X34X63.6
    COLLAR, 28.1X34X63.6
  • 92153
    92153-1276 BOLT
    BOLT
  • 92170
    92170-1764 CLAMP
    CLAMP
