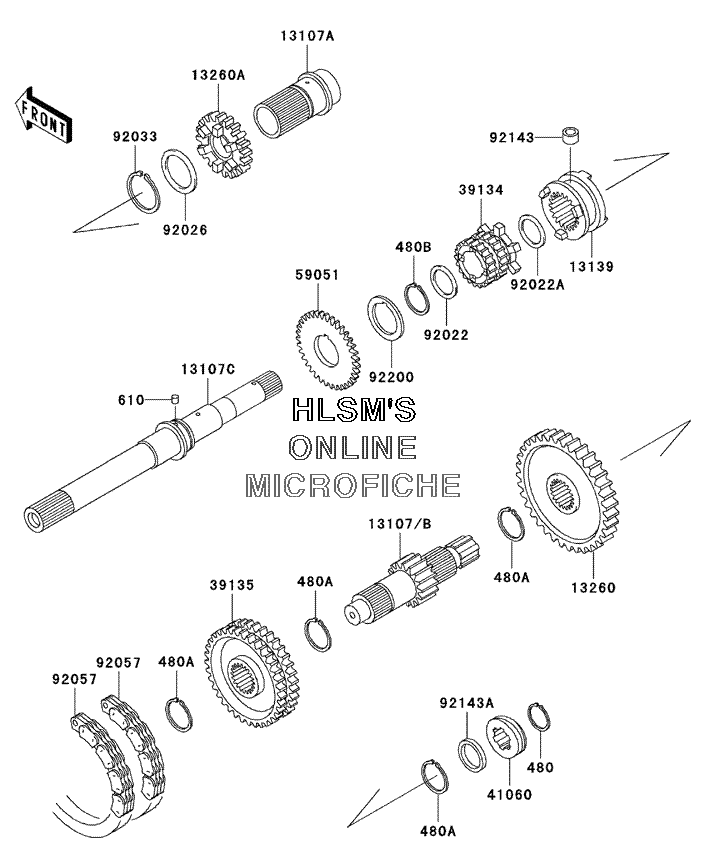

TRANSMISSION для Kawasaki MULE 3000 (KAF620-G5) - 2005 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2500 CIRCLIP-TYPE-C, 25MM
    CIRCLIP-TYPE-C, 25MM
  • 480A
    480J3000 CIRCLIP-TYPE-C, 30MM
    CIRCLIP-TYPE-C, 30MM
  • 480B
    480J3200 CIRCLIP-TYPE-C, 32MM
    CIRCLIP-TYPE-C, 32MM
  • 610
    610A0505 ROLLER
    ROLLER
  • 13107
    13107-0019 SHAFT, OUTPUT (14 TEETH)
    SHAFT, OUTPUT (14 TEETH)
  • 13107A
    13107-1315 SHAFT, INPUT OUTER
    SHAFT, INPUT OUTER
  • 13107C
    13107-1471 SHAFT, INPUT
    SHAFT, INPUT
  • 13139
    13139-1072 SHIFTER, FRONT/REAR
    SHIFTER, FRONT/REAR
  • 13260
    13260-1288 GEAR, OUTPUT REVERSE (51 TEETH)
    GEAR, OUTPUT REVERSE (51 TEETH)
  • 13260A
    13260-1462 GEAR, INPUT (28 TEETH)
    GEAR, INPUT (28 TEETH)
  • 39134
    39134-1055 SPROCKET-DRIVE (20 TEETH)
    SPROCKET-DRIVE (20 TEETH)
  • 39135
    39135-1055 SPROCKET-DRIVEN (41 TEETH)
    SPROCKET-DRIVEN (41 TEETH)
  • 41060
    41060-1147 GEAR-METER SCREW
    GEAR-METER SCREW
  • 59051
    59051-2097 GEAR-SPUR
    GEAR-SPUR
  • 92022
    92022-1109 WASHER, 25.3X33X1
    WASHER, 25.3X33X1
  • 92022A
    92022-1573 WASHER, 22.3X33X1.0
    WASHER, 22.3X33X1.0
  • 92026
    92026-1375 SPACER, 35.3X44X0.5
    SPACER, 35.3X44X0.5
  • 92033
    92033-1269 RING-SNAP
    RING-SNAP
  • 92057
    92057-1364 CHAIN, REVERSE, 81RH2520, 54L
    CHAIN, REVERSE, 81RH2520, 54L
  • 92143
    92143-1497 COLLAR, 8X14X10.5
    COLLAR, 8X14X10.5
  • 92143A
    92143-1597 COLLAR, 25X32X4.5
    COLLAR, 25X32X4.5
  • 92200
    92200-1155 WASHER, GOVERNOR GEAR
    WASHER, GOVERNOR GEAR
