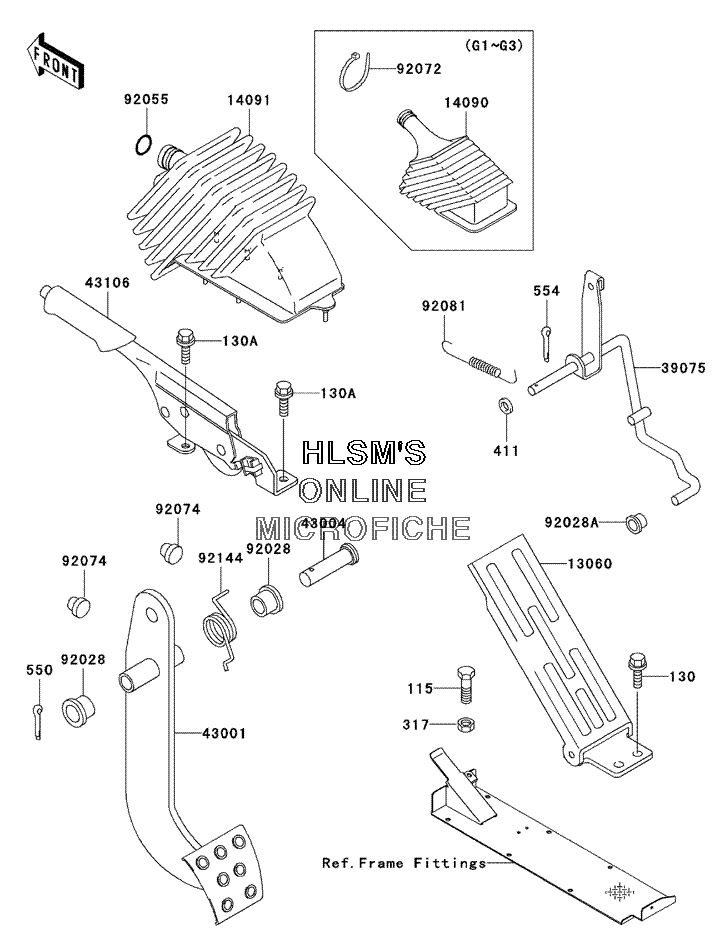

BRAKE PEDAL W/ THROTTLE LEVER для Kawasaki MULE 3000 (KAF620-G5) - 2005 года выпуска
-
№АртикулНазвание
-
115115D0840 BOLT-SMALL-UPSET, 8X40BOLT-SMALL-UPSET, 8X40
-
130130C0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130D0816 BOLT-FLANGEDBOLT-FLANGED
-
317317H0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
411411E1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
550550D2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
554554A1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
1306013060-1061 PEDAL, THROTTLEPEDAL, THROTTLE
-
1409114091-0067 COVER, PARKING LEVERCOVER, PARKING LEVER
-
3907539075-1057 LEVER-THROTTLELEVER-THROTTLE
-
4300143001-1320 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300443004-1128 SHAFT-BRAKESHAFT-BRAKE
-
4310643106-1005 LEVER-ASSY.-PARKING BRAKELEVER-ASSY.-PARKING BRAKE
-
9202892028-1571 BUSHINGBUSHING
-
92028A92028-1601 BUSHING, THROTTLE LEVERBUSHING, THROTTLE LEVER
-
9205592055-1633 RING-O, 18X24X3RING-O, 18X24X3
-
9207492074-028 PLUG, 7X2PLUG, 7X2
-
9208192081-1922 SPRING, BRAKE LEVER RETURNSPRING, BRAKE LEVER RETURN
-
9214492144-1536 SPRINGSPRING
