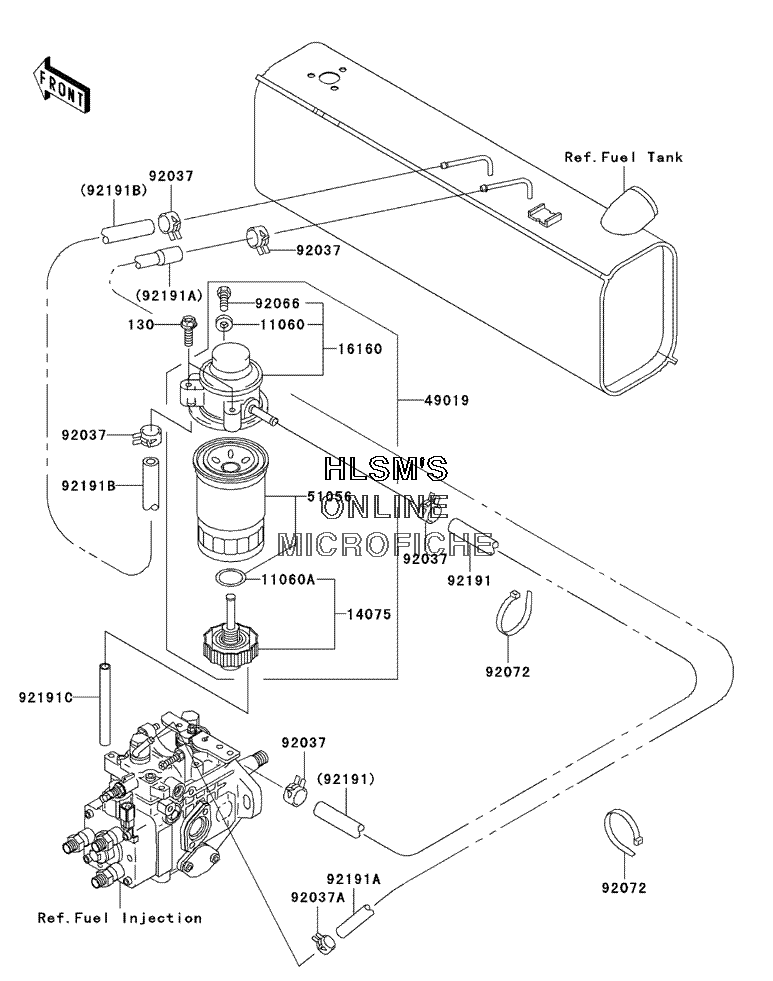

FUEL PUMP для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B2) - 2004 года выпуска`
-
№АртикулНазвание
-
130130J0825 BOLT-FLANGED, 8X25 (BLACK)BOLT-FLANGED, 8X25 (BLACK)
-
1106011060-1978 GASKET, AIR VENTGASKET, AIR VENT
-
11060A11060-1979 GASKETGASKET
-
1407514075-1109 CAP-ASSY, DRAINCAP-ASSY, DRAIN
-
1616016160-1328 BODY, FUEL FILTERBODY, FUEL FILTER
-
4901949019-1094 FILTER-FUELFILTER-FUEL
-
5105651056-1051 ELEMENT-FUEL FILTERELEMENT-FUEL FILTER
-
9203792037-1181 CLAMPCLAMP
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
9206692066-1538 PLUG, AIR VENTPLUG, AIR VENT
-
9207292072-1197 BAND, L=365BAND, L=365
-
9219192191-1437 TUBE, INJECTION INLETTUBE, INJECTION INLET
-
92191A92191-1438 TUBE, INJECTION OUTLETTUBE, INJECTION OUTLET
-
92191B92191-1439 TUBE, FUEL TANK OUTLETTUBE, FUEL TANK OUTLET
-
92191C92191-1565 TUBE, 8X11X100TUBE, 8X11X100
