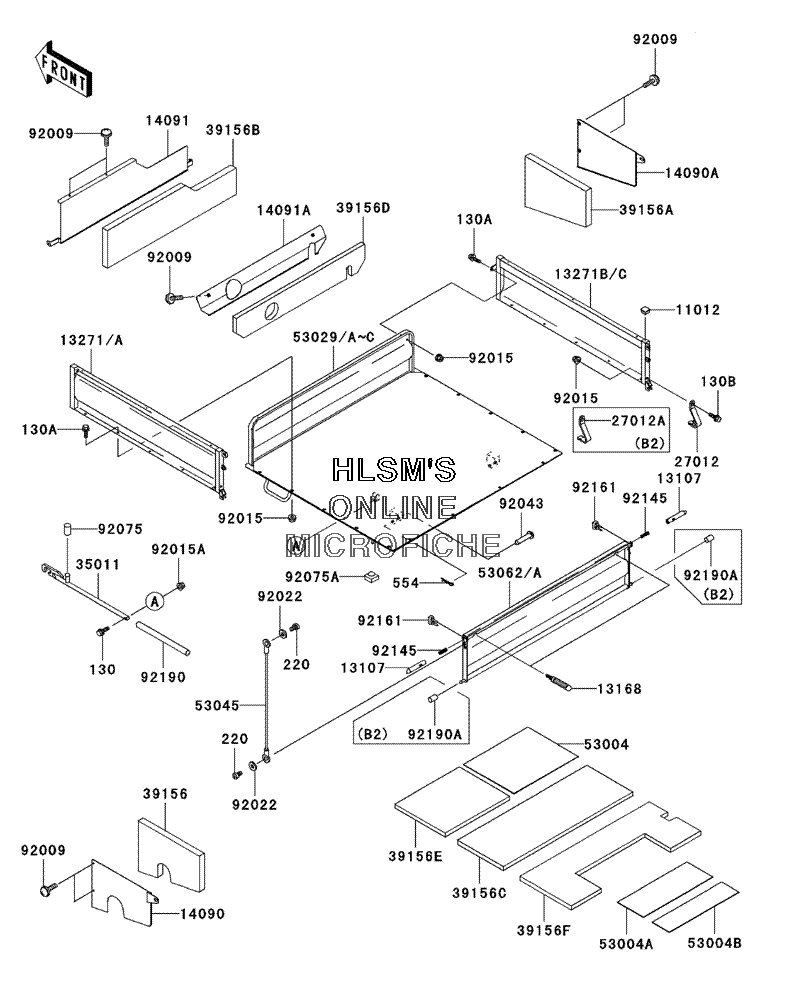

CARRIER(S) для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1784 CAPCAP
-
1310713107-0001 SHAFTSHAFT
-
1316813168-7501 LEVERLEVER
-
1327113271-0099-B9 PLATE, CARRIER, SIDE (LEFT), H.GREENPLATE, CARRIER, SIDE (LEFT), H.GREEN
-
13271A13271-0099-467 PLATE, CARRIER, SIDE (LEFT), A.REDPLATE, CARRIER, SIDE (LEFT), A.RED
-
13271B13271-0100-B9 PLATE, CARRIER, SIDE (RIGHT), H.GREENPLATE, CARRIER, SIDE (RIGHT), H.GREEN
-
13271C13271-0100-467 PLATE, CARRIER, SIDE (RIGHT), A.REDPLATE, CARRIER, SIDE (RIGHT), A.RED
-
1409014090-1260 COVER, ENCLOSURE (LEFT)COVER, ENCLOSURE (LEFT)
-
14090A14090-1261 COVER, ENCLOSURE (RIGHT)COVER, ENCLOSURE (RIGHT)
-
1409114091-1151 COVER, SEAT UNDERCOVER, SEAT UNDER
-
14091A14091-1152 COVER, SEAT REARCOVER, SEAT REAR
-
27012A27012-1406 HOOK, TAIL GATEHOOK, TAIL GATE
-
3501135011-1648 STAY, CARRIER STOPPERSTAY, CARRIER STOPPER
-
3915639156-0007 PAD, ENCLOSURE COVER (LEFT)PAD, ENCLOSURE COVER (LEFT)
-
39156A39156-0008 PAD, ENCLOSURE COVER (RIGHT)PAD, ENCLOSURE COVER (RIGHT)
-
39156B39156-0009 PAD, SEAT UNDERPAD, SEAT UNDER
-
39156C39156-0010 PAD, CARRIER, MIDDLEPAD, CARRIER, MIDDLE
-
39156D39156-0011 PAD, SEAT REARPAD, SEAT REAR
-
39156E39156-0012 PAD, CARRIER, FRPAD, CARRIER, FR
-
39156F39156-0013 PAD, CARRIER, RRPAD, CARRIER, RR
-
5300453004-0003 MAT, CARRIER, FRMAT, CARRIER, FR
-
53004A53004-0004 MAT, CARRIER, MIDDLEMAT, CARRIER, MIDDLE
-
53004B53004-0005 MAT, CARRIER, RRMAT, CARRIER, RR
-
5302953029-0006-B9 CARRIER, H.GREENCARRIER, H.GREEN
-
53029A53029-0006-467 CARRIER, A.REDCARRIER, A.RED
-
5304553045-0004 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
5306253062-0001-B9 GATE-TAIL, H.GREENGATE-TAIL, H.GREEN
-
53062A53062-0001-467 GATE-TAIL, A.REDGATE-TAIL, A.RED
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1408 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9204392043-1428 PIN, 12X65PIN, 12X65
-
9207592075-1817 DAMPERDAMPER
-
92075A92075-1882 DAMPERDAMPER
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9216192161-0083 DAMPERDAMPER
-
9219092190-1401 TUBE, 13X16X200TUBE, 13X16X200
-
92190A92190-1467 TUBE, 8X10X15TUBE, 8X10X15
-
130130H0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
130A130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130J0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
220220F0610 SCREW-PAN-CROSSSCREW-PAN-CROSS
-
554554A1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
