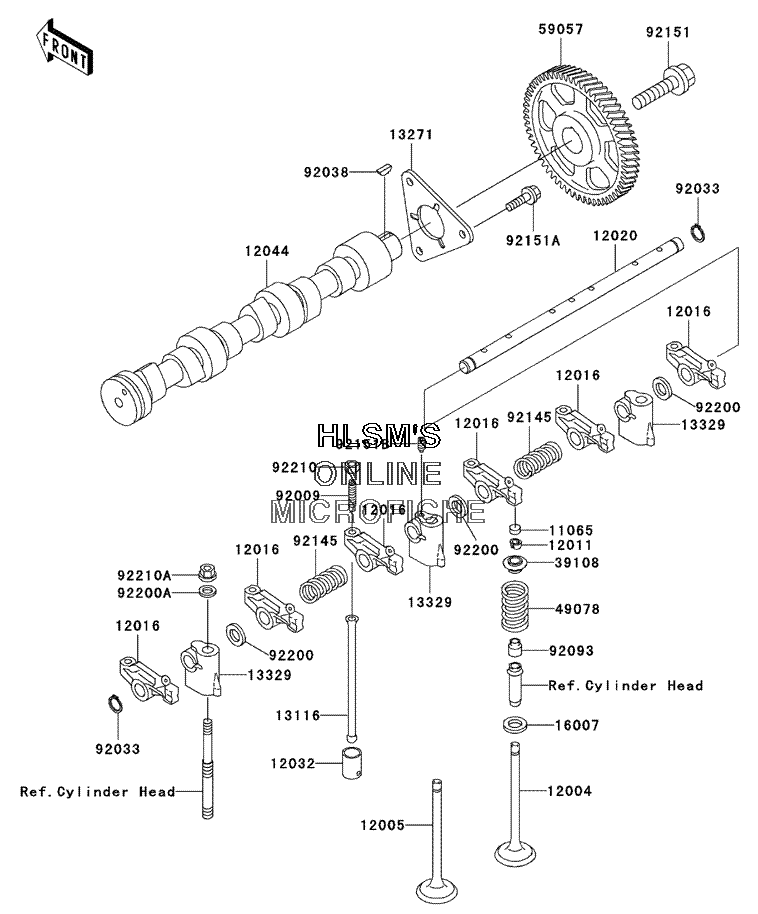

VALVE(S) W/ CAMSHAFT(S) для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B1) - 2003 года выпуска`
-
№АртикулНазвание
-
1106511065-1148 CAP, VALVE STEMCAP, VALVE STEM
-
1200412004-1145 VALVE-INTAKEVALVE-INTAKE
-
1200512005-1297 VALVE-EXHAUSTVALVE-EXHAUST
-
1201112011-1054 COLLETCOLLET
-
1201612016-1120 ARM-ROCKERARM-ROCKER
-
1202012020-1082 SHAFT-ROCKERSHAFT-ROCKER
-
1203212032-1064 TAPPETTAPPET
-
1204412044-1468 CAMSHAFT-VALVECAMSHAFT-VALVE
-
1311613116-1167 ROD-PUSHROD-PUSH
-
1327113271-1364 PLATEPLATE
-
1332913329-1001 SUPPORT, ROCKER SHAFTSUPPORT, ROCKER SHAFT
-
1600716007-1202 SEAT-SPRINGSEAT-SPRING
-
3910839108-1151 RETAINER-SPRINGRETAINER-SPRING
-
4907849078-1203 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
5905759057-1001 GEAR-HELICAL, CAMSHAFTGEAR-HELICAL, CAMSHAFT
-
9200992009-1913 SCREW, VALVE ADJUSTSCREW, VALVE ADJUST
-
9203392033-1316 RING-SNAPRING-SNAP
-
9203892038-1064 KEYKEY
-
9209392093-1521 SEAL, VALVE STEMSEAL, VALVE STEM
-
9214592145-1288 SPRING, ROCKER ARMSPRING, ROCKER ARM
-
9215192151-1676 BOLT, 10X29BOLT, 10X29
-
92151A92151-1677 BOLT, 6X18BOLT, 6X18
-
92151B92151-1678 BOLT, ROCKER SHAFT SETBOLT, ROCKER SHAFT SET
-
9220092200-1501 WASHER, ROCKER ARMWASHER, ROCKER ARM
-
92200A92200-1502 WASHER, 8MMWASHER, 8MM
-
9221092210-1213 NUT, VALVE ADJUSTNUT, VALVE ADJUST
-
92210A92210-1214 NUT, 8MMNUT, 8MM
