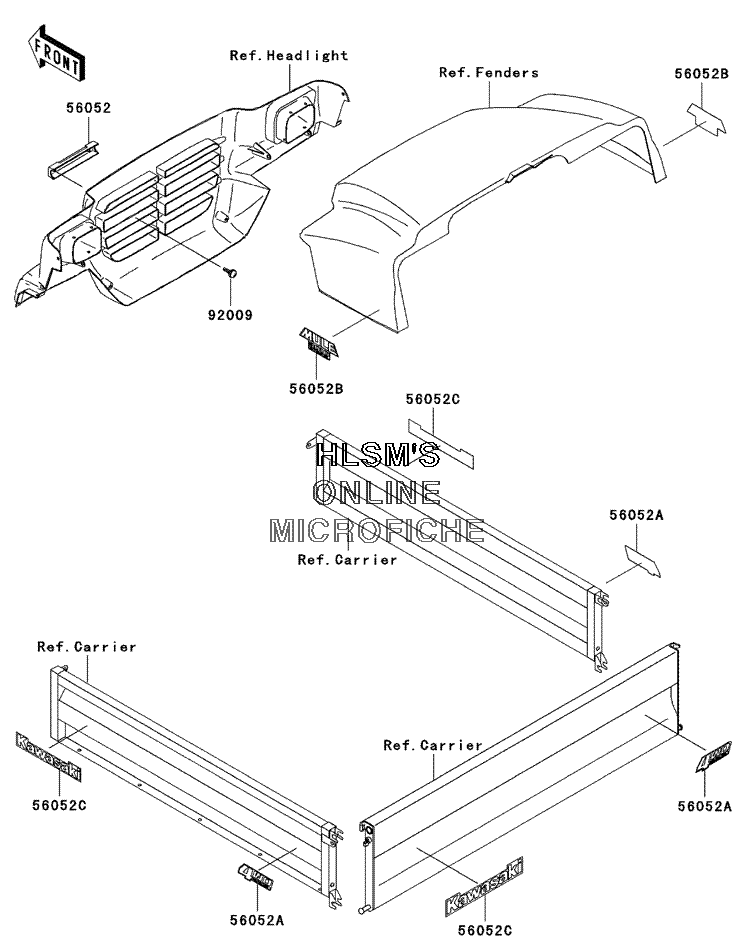

DECALS для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B1) - 2003 года выпуска
-
№АртикулНазвание
-
5605256052-1245 MARK, FRONT GRIL, KAWASAKIMARK, FRONT GRIL, KAWASAKI
-
56052A56052-1247 MARK, SIDE PLATE, 4WDMARK, SIDE PLATE, 4WD
-
56052B56052-1808 MARK, FRONT FENDER, MULE 3010MARK, FRONT FENDER, MULE 3010
-
56052C56052-1809 MARK, SIDE PLATE, KAWASAKIMARK, SIDE PLATE, KAWASAKI
-
9200992009-1444 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
Все узлы модели:
- AIR CLEANER
- AIR CLEANER W/ BELT CONVERTER
- BEVEL GEAR CASE
- BRAKE - FRONT W/ HUB
- BRAKE - MASTER CYLINDER
- BRAKE - REAR W/ HUBS
- BRAKE PEDAL W/ THROTTLE LEVER
- BRAKE PIPING
- CABLES
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CONVERTER COVER W/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON(S)
- CYLINDER HEAD
- • DECALS
- DIFFERENTIAL
- DRIVE CONVERTER
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (PROPELLER)
- DRIVE SHAFT (REAR)
- DRIVEN CONVERTER
- ENGINE COVER(S)
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FENDER(S)
- FRAME
- FRAME FITTINGS
- FRONT BOX
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S) / CAB FRAME
- HEADLIGHT(S)
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN W/ OIL FILTER
- RADIATOR
- REFLECTORS
- SEAT
- SHIFT LEVER(S)
- STARTER MOTOR
- STEERING WHEEL
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER(S)
- SWITCHES
- TAILLIGHT(S)
- TRANSMISSION
- VALVE(S) W/ CAMSHAFT(S)
- WATER PUMP
- WHEELS - TIRES
