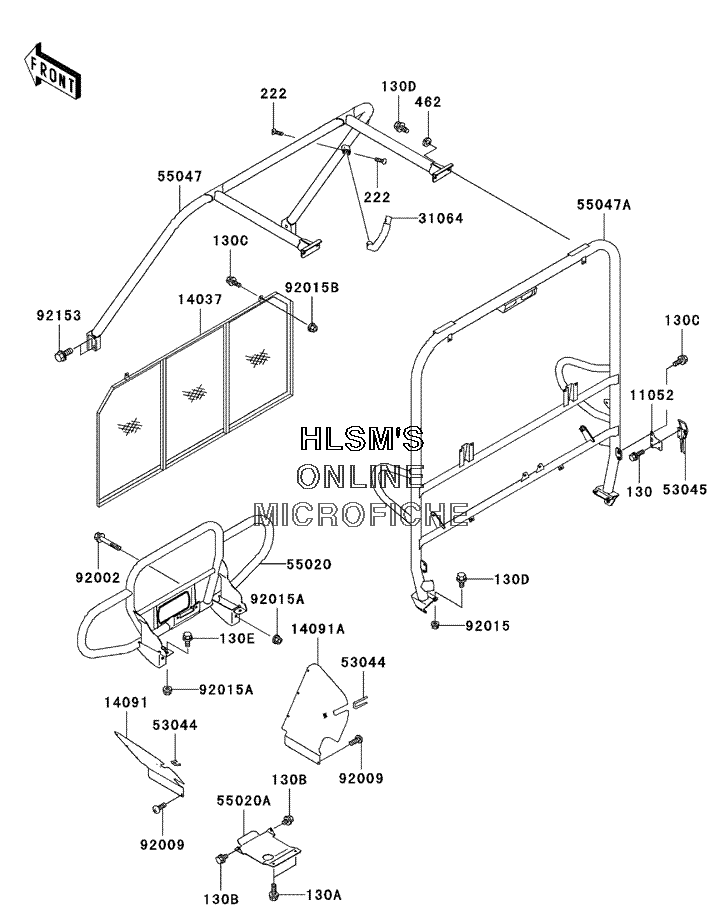

GUARD(S) / CAB FRAME для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B1) - 2003 года выпуска`
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
130A130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
130B130J0812 BOLT-FLANGEDBOLT-FLANGED
-
130C130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130D130J1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130E130P1225 BOLT-FLANGEDBOLT-FLANGED
-
222222C0612 SCREW-CSK-RD-CROSSCREW-CSK-RD-CROS
-
462462K1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
1105211052-7559 BRACKET, CARRIER CLAMP JOINTBRACKET, CARRIER CLAMP JOINT
-
1403714037-1287 SCREEN, REAR GUARDSCREEN, REAR GUARD
-
1409114091-1142 COVER, FRONT (LEFT)COVER, FRONT (LEFT)
-
14091A14091-1143 COVER, FRONT (RIGHT)COVER, FRONT (RIGHT)
-
3106431064-1238 PIPE-COMPPIPE-COMP
-
5304453044-1137 TRIMTRIM
-
5304553045-1063 HOOK-ASSYHOOK-ASSY
-
5502055020-7505 GUARD, FRONTGUARD, FRONT
-
55020A55020-7506 GUARD, GEAR CASEGUARD, GEAR CASE
-
5504755047-1016 BAR-COMP, FRONTBAR-COMP, FRONT
-
55047A55047-1017 BAR-COMP, REARBAR-COMP, REAR
-
9200292002-1661 BOLT, SUSPENSION RODBOLT, SUSPENSION ROD
-
9200992009-1166 SCREWSCREW
-
9201592015-1366 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1433 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
92015B92015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
9215392153-1282 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
