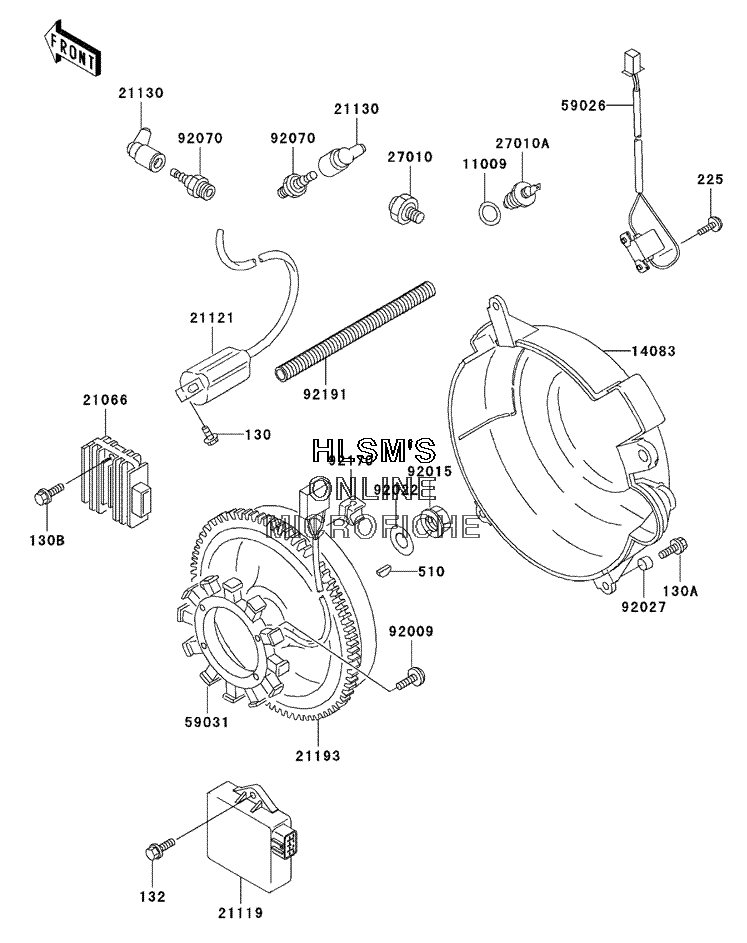

GENERATOR W/ IGNITION SYSTEM для Kawasaki MULE 3000 (KAF620-G3) - 2003 года выпуска`
-
№АртикулНазвание
-
130130B0520 BOLT, FLANGEDBOLT, FLANGED
-
130A130B0616 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
130B130J0620 BOLT, FLANGED 6X20BOLT, FLANGED 6X20
-
132132J0612 BOLT, FLANGED, SMALL 6X12BOLT, FLANGED, SMALL 6X12
-
225225B0414 SCREW, PAN, WSP, CROS 4X14SCREW, PAN, WSP, CROS 4X14
-
510510A5100 KEY, WOODRUFFKEY, WOODRUFF
-
1100911009-2766 GASKETGASKET
-
1408314083-2052 COVER, FLYWHEELCOVER, FLYWHEEL
-
2106621066-1127 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
2111921119-1583 IGNITERIGNITER
-
2112121121-2092 COIL, IGNITIONCOIL, IGNITION
-
2113021130-2060 CAP, SPARK PLUGCAP, SPARK PLUG
-
2119321193-2184 FLYWHEEL, ASSY.FLYWHEEL, ASSY.
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
27010A27010-2182 SWITCH, TEMPSWITCH, TEMP
-
5902659026-2065 COIL, PULSINGCOIL, PULSING
-
5903159031-2126 COIL, CHARGINGCOIL, CHARGING
-
9200992009-2273 SCREWSCREW
-
9201592015-2167 NUTNUT
-
9202292022-2229 WASHERWASHER
-
9202792027-2096 COLLAR, 6.2X7.8X5COLLAR, 6.2X7.8X5
-
9207092070-2110 PLUG, SPARK, BPR2ES (NGK), SOLIDPLUG, SPARK, BPR2ES (NGK), SOLID
-
9217092170-2056 CLAMPCLAMP
-
9219192191-2124 TUBETUBE
