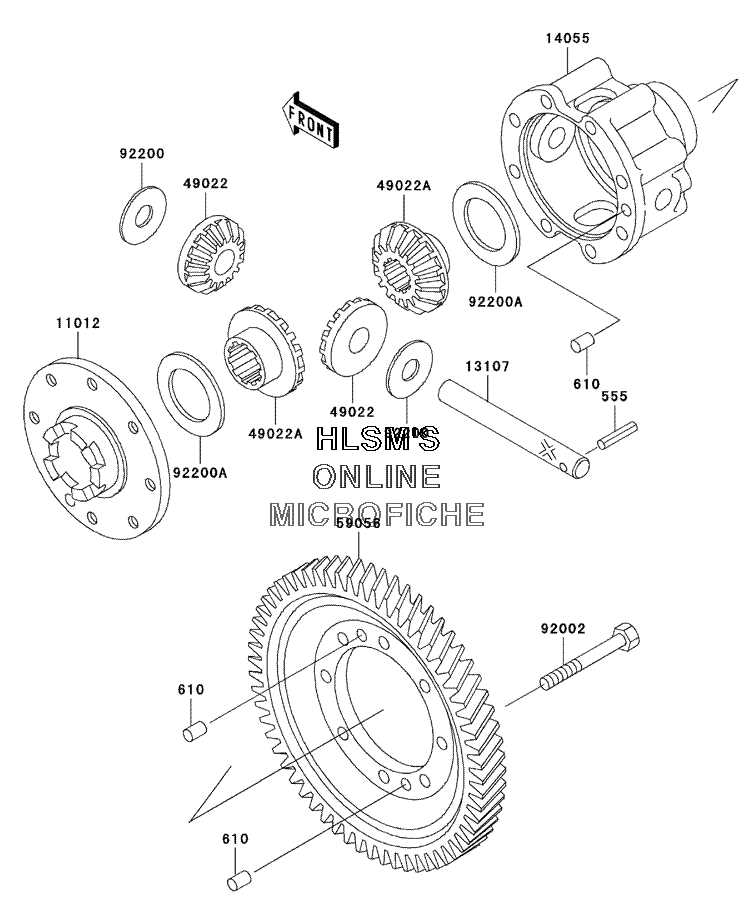

DIFFERENTIAL для Kawasaki MULE 3000 (KAF620-G3) - 2003 года выпуска
-
№АртикулНазвание
-
555555A0528 PIN, SPRINGPIN, SPRING
-
610610A0812 ROLLER, 8X12ROLLER, 8X12
-
1101211012-1613 CAP, GEAR CASECAP, GEAR CASE
-
1310713107-1219 SHAFTSHAFT
-
1405514055-1113 CASE, GEAR, DIFFERENTIALCASE, GEAR, DIFFERENTIAL
-
4902249022-1105 GEAR, BEVEL, 10TGEAR, BEVEL, 10T
-
49022A49022-1117 GEAR, BEVEL, 16TGEAR, BEVEL, 16T
-
5905659056-1056 GEAR, HELICAL, DIFFERENTIAL, 81TGEAR, HELICAL, DIFFERENTIAL, 81T
-
9200292002-1553 BOLT, 8X68BOLT, 8X68
-
9220092200-1044 WASHER, 14.5X38X1.0WASHER, 14.5X38X1.0
-
92200A92200-1045 WASHER, 35.5X54X1.0WASHER, 35.5X54X1.0
