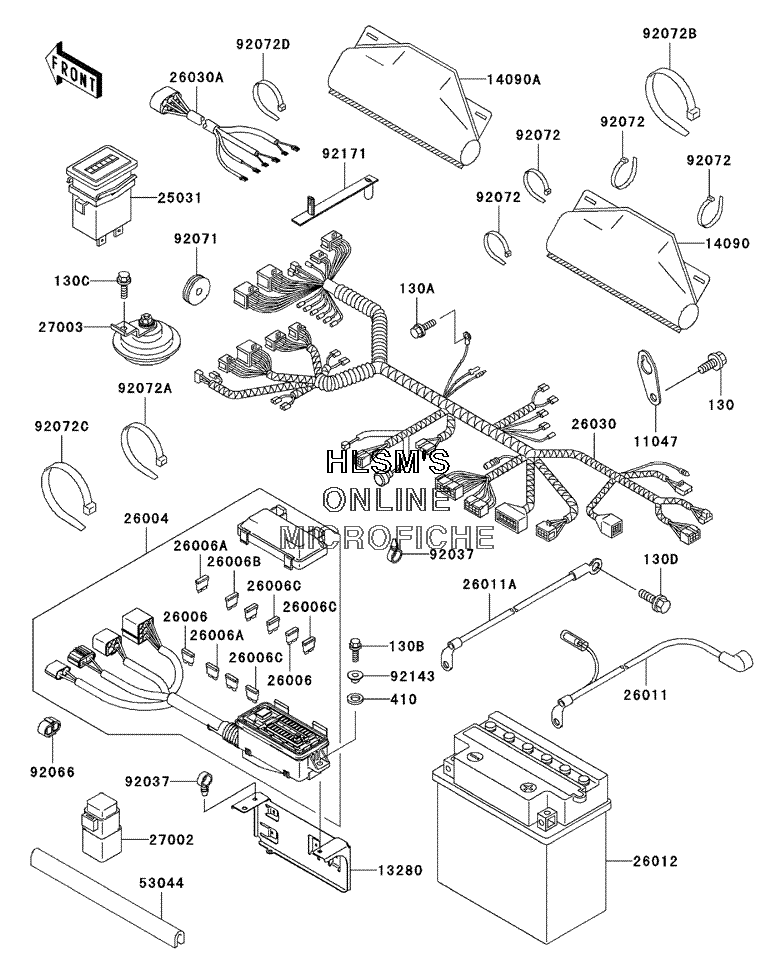

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE 3000 (KAF620-G3) - 2003 года выпуска`
![](/wa-data/public/shop/sheme/kawasaki/utv/eb2562dd-75d9-4aa5-9eb0-c531d98a359f.gif)
-
№АртикулНазвание
-
130130G0816 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
130A130J0616 BOLT, FLANGED 6X16BOLT, FLANGED 6X16
-
130B130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
130C130J0620 BOLT, FLANGED 6X20BOLT, FLANGED 6X20
-
130D130J0812 BOLT, FLANGEDBOLT, FLANGED
-
410410F1000 WASHER, PLAIN, SMALL, 10MM (BLACK)WASHER, PLAIN, SMALL, 10MM (BLACK)
-
1104711047-2056-9H BRACKET (F.BLACK)BRACKET (F.BLACK)
-
1328013280-1220 HOLDERHOLDER
-
1409014090-1331 COVER, COUPLERCOVER, COUPLER
-
14090A14090-1611 COVER, COUPLERCOVER, COUPLER
-
2503125031-1212 METER, ASSY., HOURMETER, ASSY., HOUR
-
2600426004-1120 FUSE, ASSY.FUSE, ASSY.
-
2600626006-1077 FUSE, 5AFUSE, 5A
-
26006A26006-1078 FUSE, 10AFUSE, 10A
-
26006B26006-1079 FUSE, 20AFUSE, 20A
-
26006C26006-1080 FUSE, 30AFUSE, 30A
-
2601126011-1780 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1787 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-3728 BATTERY, YTX20L, BS, 12V 18AHBATTERY, YTX20L, BS, 12V 18AH
-
2603026030-1860 HARNESS, MAINHARNESS, MAIN
-
26030A26030-2322 HARNESSHARNESS
-
2700227002-1068 RELAY, ASSY.RELAY, ASSY.
-
2700327003-1276 HORNHORN
-
5304453044-1137 TRIMTRIM
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9206692066-1539 PLUGPLUG
-
9207192071-1136 GROMMETGROMMET
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-1195 BAND, L=202BAND, L=202
-
92072B92072-1197 BAND, L=365BAND, L=365
-
92072C92072-1237 BAND, L=250BAND, L=250
-
92072D92072-1239 BAND, L=188BAND, L=188
-
9214392143-1057 COLLARCOLLAR
-
9217192171-1365 CLAMPCLAMP
