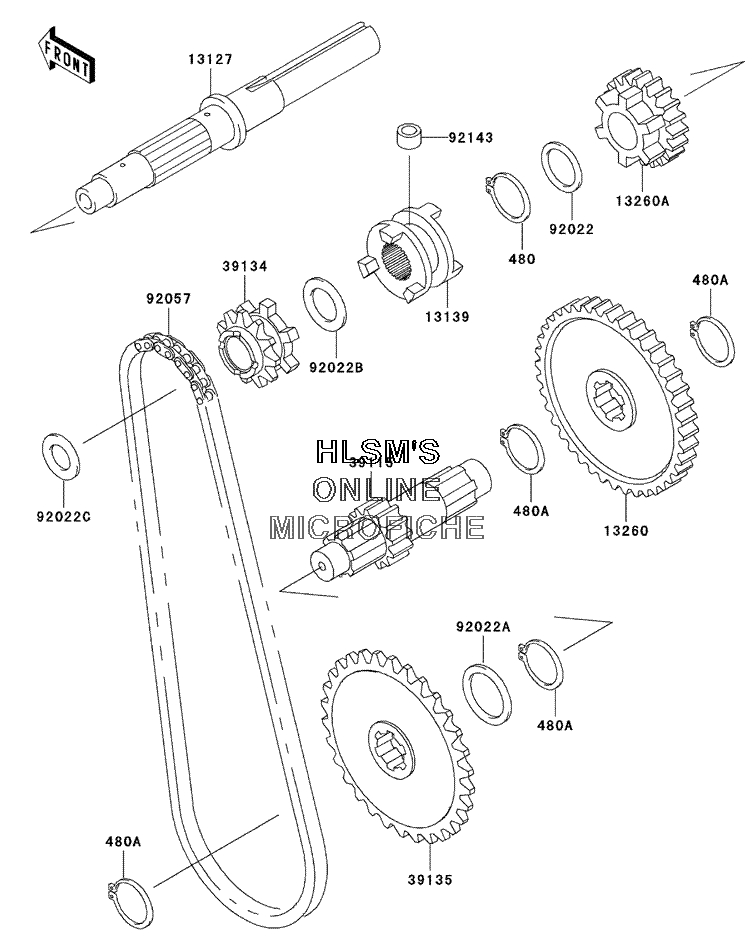

TRANSMISSION для Kawasaki MULE 550 (KAF300-C6) - 2002 года выпуска`
-
№АртикулНазвание
-
480480J2500 CIRCLIP-TYPE-C, 25MMCIRCLIP-TYPE-C, 25MM
-
480A480J2800 CIRCLIP-TYPE-C, 28MMCIRCLIP-TYPE-C, 28MM
-
1312713127-1203 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1313913139-1070 SHIFTERSHIFTER
-
1326013260-1152 GEAR, OUTPUT FORWARD (55 TEETH)GEAR, OUTPUT FORWARD (55 TEETH)
-
13260A13260-1336 GEAR, INPUT FORWARD (24 TEETH)GEAR, INPUT FORWARD (24 TEETH)
-
3911539115-1070 SHAFT, OUTPUT REDUCTION (13 TEETH)SHAFT, OUTPUT REDUCTION (13 TEETH)
-
3913439134-1054 SPROCKET-DRIVE (19 TEETH)SPROCKET-DRIVE (19 TEETH)
-
3913539135-1053 GEAR (51 TEETH)GEAR (51 TEETH)
-
9202292022-1109 WASHER, 25.3X33X1WASHER, 25.3X33X1
-
92022A92022-1626 WASHER, 28.3X34X0.3WASHER, 28.3X34X0.3
-
92022B92022-1723 WASHER, 22.3X35X2.0WASHER, 22.3X35X2.0
-
92022C92022-270 WASHER, 17.3X30X1.4WASHER, 17.3X30X1.4
-
9205792057-1349 CHAIN, REVERSECHAIN, REVERSE
-
9214392143-1497 COLLAR, 8X14X10.5COLLAR, 8X14X10.5
