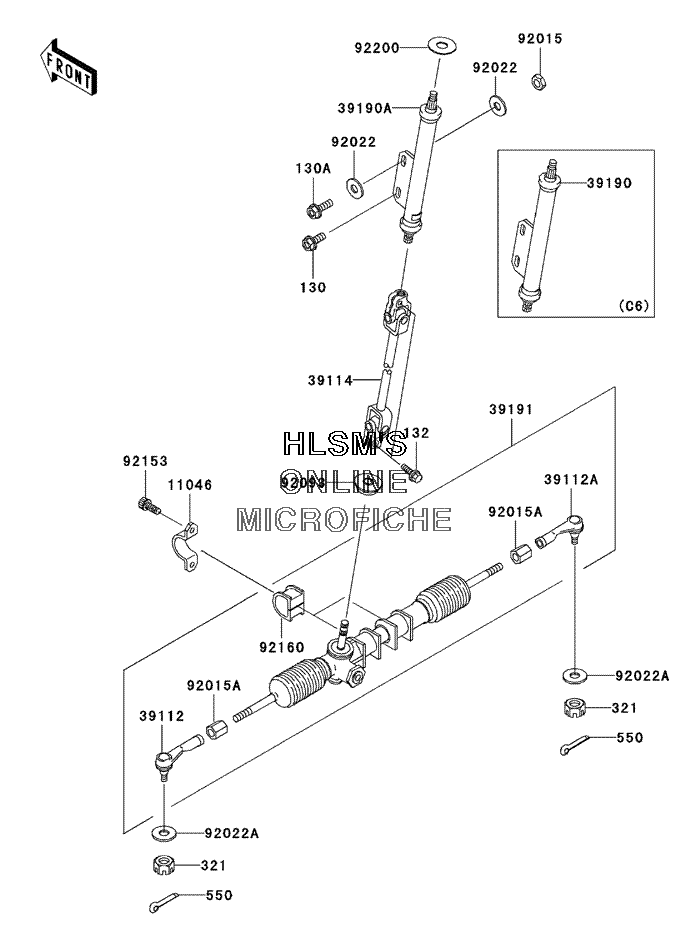

STEERING SHAFT для Kawasaki MULE 550 (KAF300-C6) - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130J1025 BOLT-FLANGED, 10X25
    BOLT-FLANGED, 10X25
  • 130A
    130J1030 BOLT-FLANGED, 10X30
    BOLT-FLANGED, 10X30
  • 132
    132J0825 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 321
    321H1000 NUT-CASTLE
    NUT-CASTLE
  • 550
    550D2022 PIN-COTTER, 2.0X22
    PIN-COTTER, 2.0X22
  • 11046
    11046-1858 BRACKET, STEERING GEAR
    BRACKET, STEERING GEAR
  • 39112
    39112-1068 RODEND-TIE, STEERING GEAR (LEFT)
    RODEND-TIE, STEERING GEAR (LEFT)
  • 39112A
    39112-1069 RODEND-TIE, STEERING GEAR (RIGHT)
    RODEND-TIE, STEERING GEAR (RIGHT)
  • 39114
    39114-1070 SHAFT-COMP-STEERING
    SHAFT-COMP-STEERING
  • 39190
    39190-1003 SHAFT-ASSY-STEERING
    SHAFT-ASSY-STEERING
  • 39191
    39191-1008 GEAR-ASSY-STEERING
    GEAR-ASSY-STEERING
  • 92015
    92015-1189 NUT, LOCK, 10MM (BLACK)
    NUT, LOCK, 10MM (BLACK)
  • 92015A
    92015-1864 NUT
    NUT
  • 92022
    92022-1396 WASHER, 10.5X26X2.3 (BLACK)
    WASHER, 10.5X26X2.3 (BLACK)
  • 92022A
    92022-1876 WASHER, 10.5X18X2.5
    WASHER, 10.5X18X2.5
  • 92093
    92093-1313 SEAL
    SEAL
  • 92153
    92153-1269 BOLT, SOCKET, 10X23
    BOLT, SOCKET, 10X23
  • 92160
    92160-1084 DAMPER, STEERING GEAR
    DAMPER, STEERING GEAR
  • 92200
    92200-1130 WASHER, 15X45X0.6
    WASHER, 15X45X0.6
