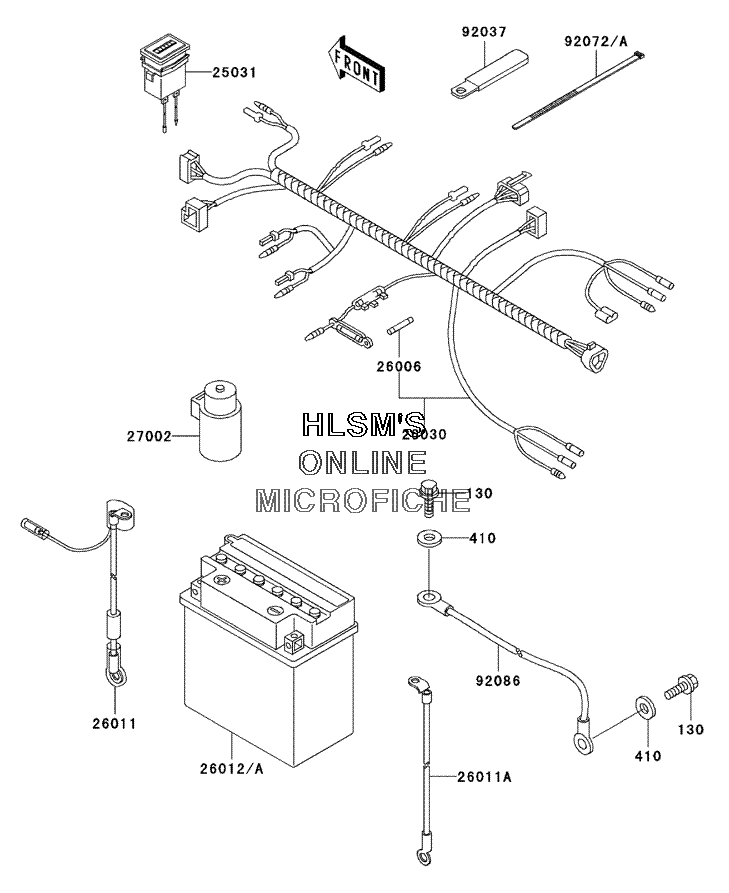

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE 520 (KAF300-D2) - 2001 года выпуска`
-
№АртикулНазвание
-
130130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
410410B0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
2503125031-1013 METER-ASSY., HOURMETER-ASSY., HOUR
-
2600626006-1064 FUSE, 20A, L=32FUSE, 20A, L=32
-
2601126011-1486 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
26011A26011-1494 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
26012A26012-1397 BATTERY, YB14A-A2, 12V 14AHBATTERY, YB14A-A2, 12V 14AH
-
2603026030-1469 HARNESSHARNESS
-
2700227002-1051 RELAY-ASSY.RELAY-ASSY.
-
9203792037-113 CLAMPCLAMP
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-1239 BAND, L=188BAND, L=188
-
9208692086-1054 WIREWIRE
