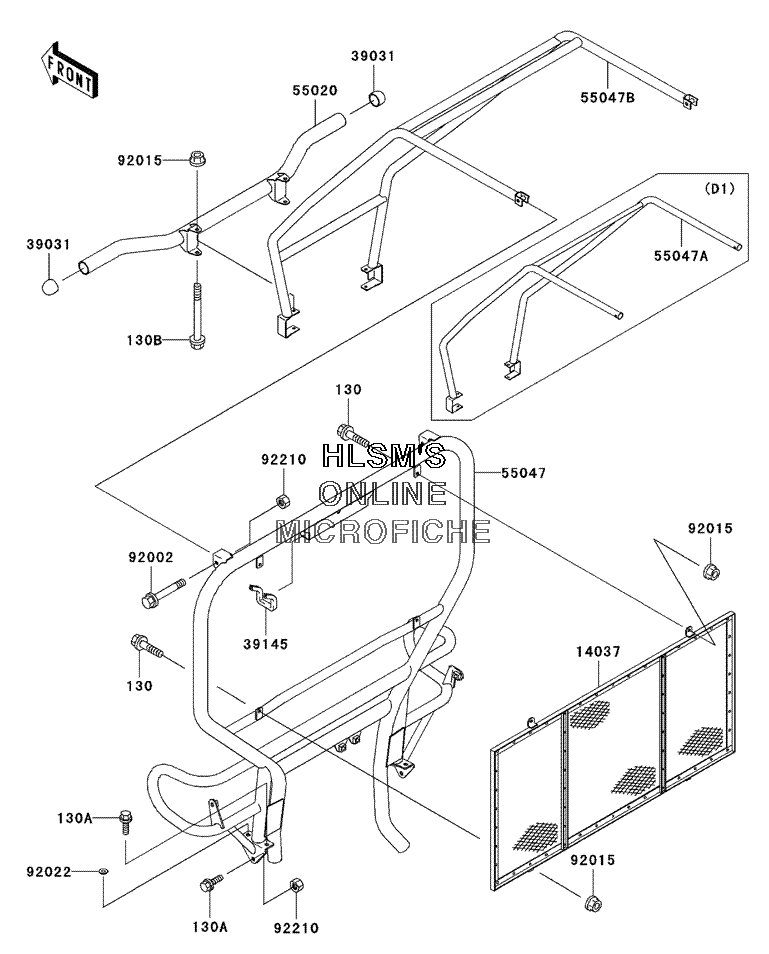

GUARD(S) для Kawasaki MULE 520 (KAF300-D2) - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0820 BOLT-FLANGED, 8X20
    BOLT-FLANGED, 8X20
  • 130A
    130J1020 BOLT-FLANGED, 10X20
    BOLT-FLANGED, 10X20
  • 130B
    130S08100 BOLT-FLANGED
    BOLT-FLANGED
  • 14037
    14037-1230 SCREEN, BAR COMP, REAR
    SCREEN, BAR COMP, REAR
  • 39031
    39031-1059 CAP-END, BUMPER PIPE
    CAP-END, BUMPER PIPE
  • 39145
    39145-1105 TRIM-SEAL, L=140
    TRIM-SEAL, L=140
  • 55020
    55020-1576 GUARD, FRONT BUMPER
    GUARD, FRONT BUMPER
  • 55047
    55047-1009 BAR-COMP, REAR
    BAR-COMP, REAR
  • 55047B
    55047-1015 BAR-COMP, FRONT
    BAR-COMP, FRONT
  • 92002
    92002-1127 BOLT, 10X55
    BOLT, 10X55
  • 92015
    92015-1696 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
  • 92022
    92022-1396 WASHER, 10.5X26X2.3 (BLACK)
    WASHER, 10.5X26X2.3 (BLACK)
  • 92210
    92210-1204 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
