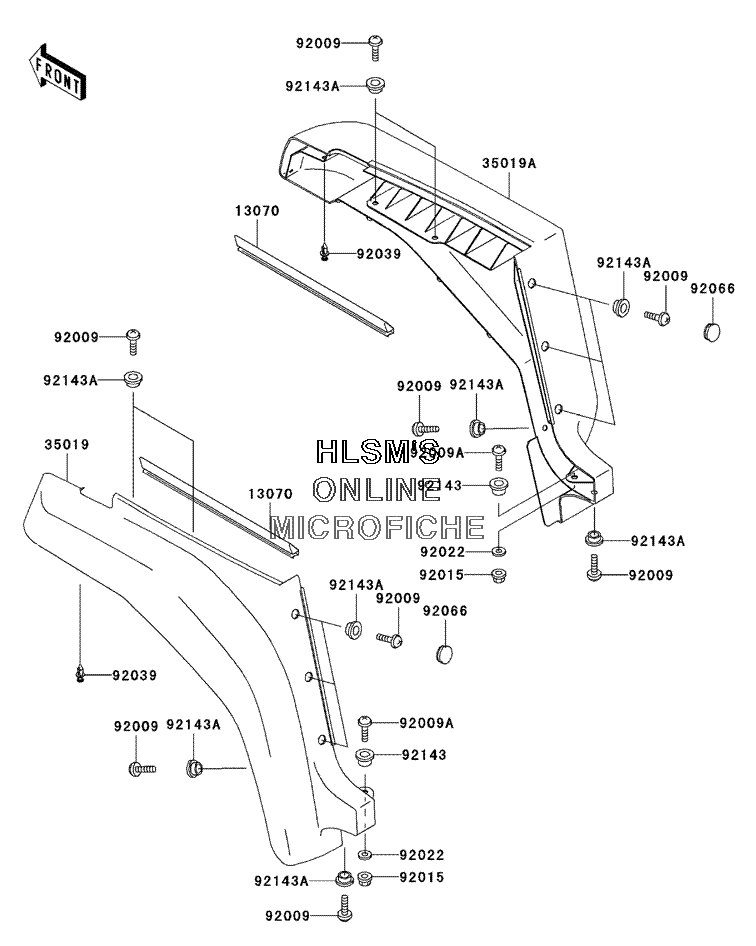

FENDER - FRONT для Kawasaki MULE 3020 (KAF620-F1) - 2001 года выпуска`
-
№АртикулНазвание
-
1307013070-1371 GUIDE, FRONT FLAPGUIDE, FRONT FLAP
-
3501935019-1376-6Z FLAP, FRONT (LEFT) (F.BLACK)FLAP, FRONT (LEFT) (F.BLACK)
-
35019A35019-1377-6Z FLAP, FRONT (RIGHT) (F.BLACK)FLAP, FRONT (RIGHT) (F.BLACK)
-
9200992009-1166 SCREWSCREW
-
92009A92009-1256 SCREW, 6X22 (BLACK)SCREW, 6X22 (BLACK)
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9203992039-1229 RIVETRIVET
-
9206692066-1231 PLUGPLUG
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
