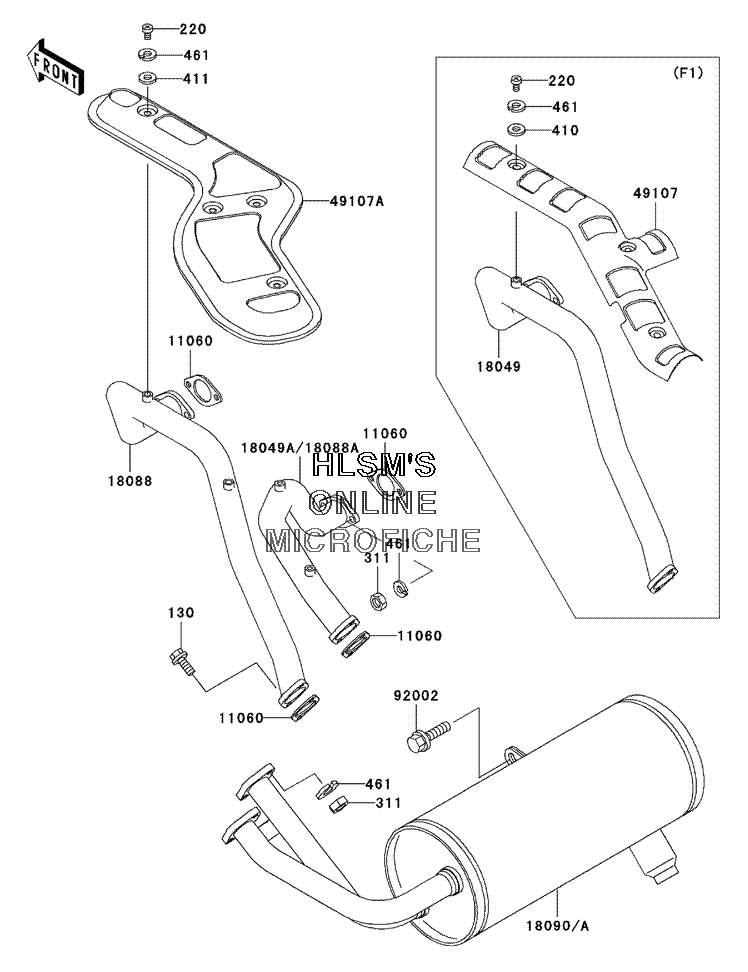

MUFFLER(S) для Kawasaki MULE 3020 (KAF620-F1) - 2001 года выпуска
-
№АртикулНазвание
-
130130G0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
220220C0610 SCREW, PAN, CROS, 6X10 (BLACK)SCREW, PAN, CROS, 6X10 (BLACK)
-
311311G0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410B0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
461461F0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
1106011060-2079 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1804918049-1735 PIPE, EXHAUST (FRONT)PIPE, EXHAUST (FRONT)
-
18049A18049-1736 PIPE, EXHAUST (REAR)PIPE, EXHAUST (REAR)
-
1809018090-1451 BODY, COMP, MUFFLERBODY, COMP, MUFFLER
-
18090A18090-1912 BODY, COMP, MUFFLERBODY, COMP, MUFFLER
-
4910749107-1089 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
9200292002-1250 BOLT, 8X20BOLT, 8X20
