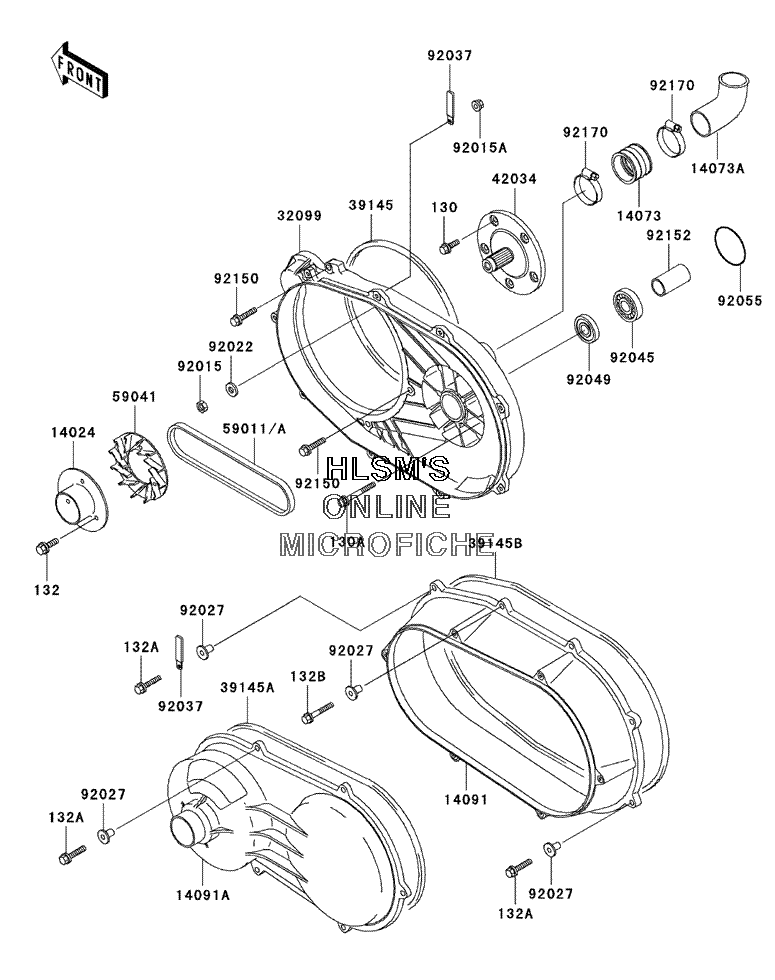

CONVERTER COVER W/DRIVE BELT для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска`
-
№АртикулНазвание
-
130130T0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130A130Z0855 BOLT-FLANGEDBOLT-FLANGED
-
132132G0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132J0635 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1402414024-1554 COVER, FANCOVER, FAN
-
1407314073-1324 DUCTDUCT
-
14073A14073-1780 DUCT, CONVERTER OUTLETDUCT, CONVERTER OUTLET
-
1409114091-1134 COVER, MIDDLECOVER, MIDDLE
-
14091A14091-1187 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
3209932099-1215 CASE, BELT CONVERTERCASE, BELT CONVERTER
-
3914539145-1115 TRIM-SEAL, BELT CONVERTER CASETRIM-SEAL, BELT CONVERTER CASE
-
39145A39145-1117 TRIM-SEAL, MIDDLE COVERTRIM-SEAL, MIDDLE COVER
-
39145B39145-1126 TRIM-SEAL, BELT CONVERTERTRIM-SEAL, BELT CONVERTER
-
4203442034-1160 COUPLINGCOUPLING
-
59011A59011-1078 BELT, CONVERTERBELT, CONVERTER
-
5904159041-1059 FANFAN
-
9201592015-1189 NUT, LOCK, 10MM (BLACK)NUT, LOCK, 10MM (BLACK)
-
92015A92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1876 WASHER, 10.5X18X2.5WASHER, 10.5X18X2.5
-
9202792027-1920 COLLAR, L=14.1COLLAR, L=14.1
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
9204592045-1378 BEARING-BALL, 62/28LLBBEARING-BALL, 62/28LLB
-
9204992049-1297 SEAL-OIL, TC28X47X7SEAL-OIL, TC28X47X7
-
9205592055-1327 RING-O, 67.6X3.5RING-O, 67.6X3.5
-
9215092150-1103 BOLT, FLANGED, 8X28BOLT, FLANGED, 8X28
-
9215292152-1177 COLLAR, 28.1X34X63.6COLLAR, 28.1X34X63.6
-
9217092170-1448 CLAMPCLAMP
