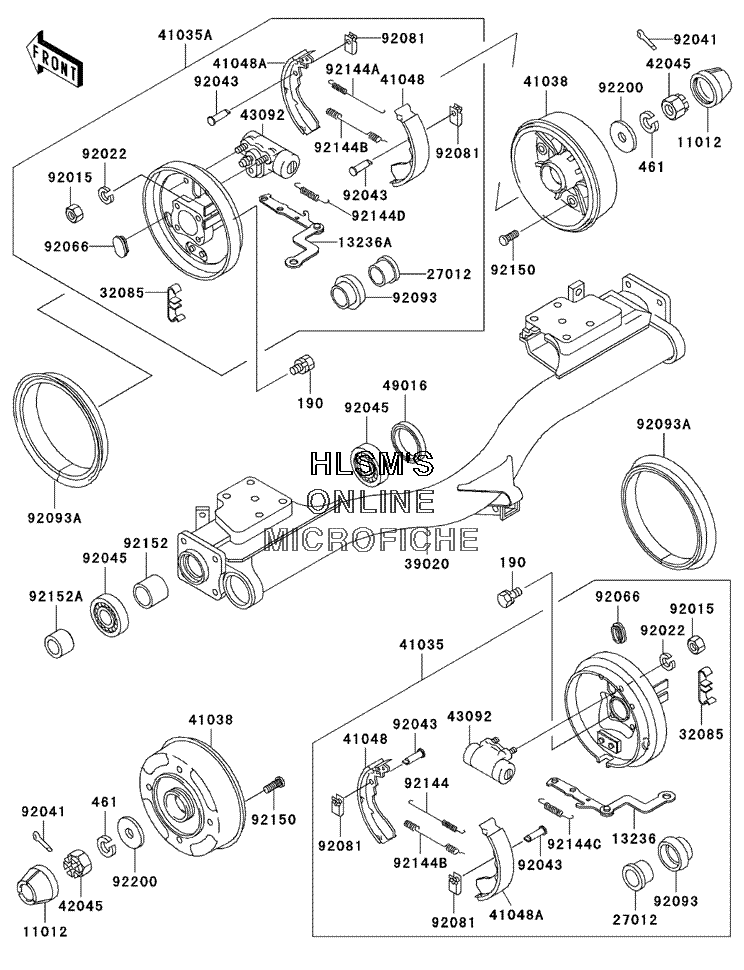

BRAKE - REAR W/ HUBS для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска`
-
№АртикулНазвание
-
190190H1016 BOLT-UPSET-WS, 10X16BOLT-UPSET-WS, 10X16
-
461461F1800 WASHER-SPRING, 18MMWASHER-SPRING, 18MM
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1323613236-1180 LEVER-COMP, REAR BRAKE PANEL (LEFT)LEVER-COMP, REAR BRAKE PANEL (LEFT)
-
13236A13236-1181 LEVER-COMP, REAR BRAKE PANEL (RIGHT)LEVER-COMP, REAR BRAKE PANEL (RIGHT)
-
2701227012-1396 HOOK, REAR BRAKE LEVERHOOK, REAR BRAKE LEVER
-
3208532085-1298 STOPPER, REAR BRAKE LEVERSTOPPER, REAR BRAKE LEVER
-
3902039020-1055 BRACKET-COMP-REAR SUSPENSIONBRACKET-COMP-REAR SUSPENSION
-
4103541035-1306 PANEL-ASSY-BRAKE, REAR (LEFT)PANEL-ASSY-BRAKE, REAR (LEFT)
-
41035A41035-1307 PANEL-ASSY-BRAKE, REAR (RIGHT)PANEL-ASSY-BRAKE, REAR (RIGHT)
-
4103841038-1226 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104841048-1078 SHOE-BRAKESHOE-BRAKE
-
41048A41048-1079 SHOE-BRAKESHOE-BRAKE
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4309243092-1053 CYLINDER, REAR WHEELCYLINDER, REAR WHEEL
-
4901649016-1151 COVER-SEALCOVER-SEAL
-
9201592015-1729 NUT, 6MMNUT, 6MM
-
9202292022-1951 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204392043-1398 PIN, TENSIONPIN, TENSION
-
9204592045-1229 BEARING-BALL, 6205DDUBEARING-BALL, 6205DDU
-
9206692066-1309 PLUGPLUG
-
9208192081-1904 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
9209392093-1259 SEAL, REAR BRAKE LEVERSEAL, REAR BRAKE LEVER
-
92093A92093-1357 SEALSEAL
-
9214492144-1299 SPRING, BRAKESPRING, BRAKE
-
92144A92144-1300 SPRING, BRAKESPRING, BRAKE
-
92144B92144-1301 SPRING, BRAKESPRING, BRAKE
-
92144C92144-1302 SPRING, ROD (LEFT)SPRING, ROD (LEFT)
-
92144D92144-1303 SPRING, ROD (RIGHT)SPRING, ROD (RIGHT)
-
9215092150-1366 BOLTBOLT
-
9215292152-1238 COLLAR, 25.1X32X23.3COLLAR, 25.1X32X23.3
-
92152A92152-1239 COLLARCOLLAR
-
9220092200-1474 WASHER, 18.5X52X4.5WASHER, 18.5X52X4.5
