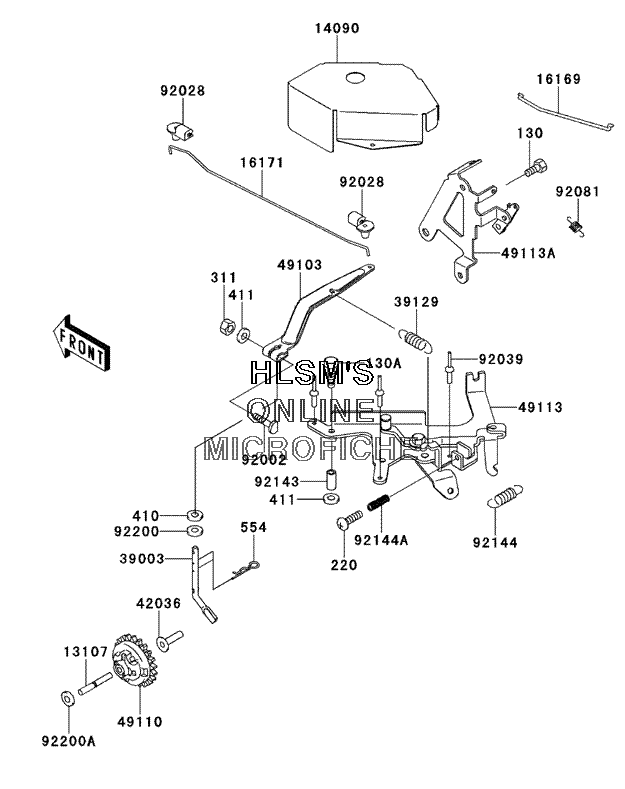

THROTTLE CONTROL для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска`
-
№АртикулНазвание
-
130130B0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130A130G0655 BOLT-FLANGED, 6X55BOLT-FLANGED, 6X55
-
220220B0522 SCREW-PAN-CROSSCREW-PAN-CROS
-
311311B0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
411411B0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
554554A0600 PIN-SNAPPIN-SNAP
-
1310713107-2235 SHAFTSHAFT
-
1409014090-1335 COVER, CONTROL PANELCOVER, CONTROL PANEL
-
1616916169-2113 LINK-CHOKELINK-CHOKE
-
1617116171-1059 LINK, GOVERNORLINK, GOVERNOR
-
3900339003-1053 ARM-PIVOT, GOVERNORARM-PIVOT, GOVERNOR
-
3912939129-1011 SPRING-GOVERNORSPRING-GOVERNOR
-
4203642036-2060 SLEEVESLEEVE
-
4910349103-1055 ARM-GOVERNORARM-GOVERNOR
-
4911049110-1081 GOVERNOR-ASSYGOVERNOR-ASSY
-
4911349113-1056 PANEL-COMP-CONTROLPANEL-COMP-CONTROL
-
49113A49113-2143 PANEL-COMP-CONTROLPANEL-COMP-CONTROL
-
9200292002-2269 BOLT, 6X28BOLT, 6X28
-
9202892028-2156 BUSHING, GOVERNORBUSHING, GOVERNOR
-
9203992039-1163 RIVET, BLIND, 4.0X9.2RIVET, BLIND, 4.0X9.2
-
9208192081-1922 SPRING, BRAKE LEVER RETURNSPRING, BRAKE LEVER RETURN
-
9214392143-1072 COLLAR, 6.8X10X42COLLAR, 6.8X10X42
-
9214492144-1410 SPRING, CONTROLSPRING, CONTROL
-
92144A92144-2266 SPRINGSPRING
-
9220092200-2029 WASHER, 6.5X11.5X2.0WASHER, 6.5X11.5X2.0
-
92200A92200-2036 WASHER, 6.2X20X0.5WASHER, 6.2X20X0.5
