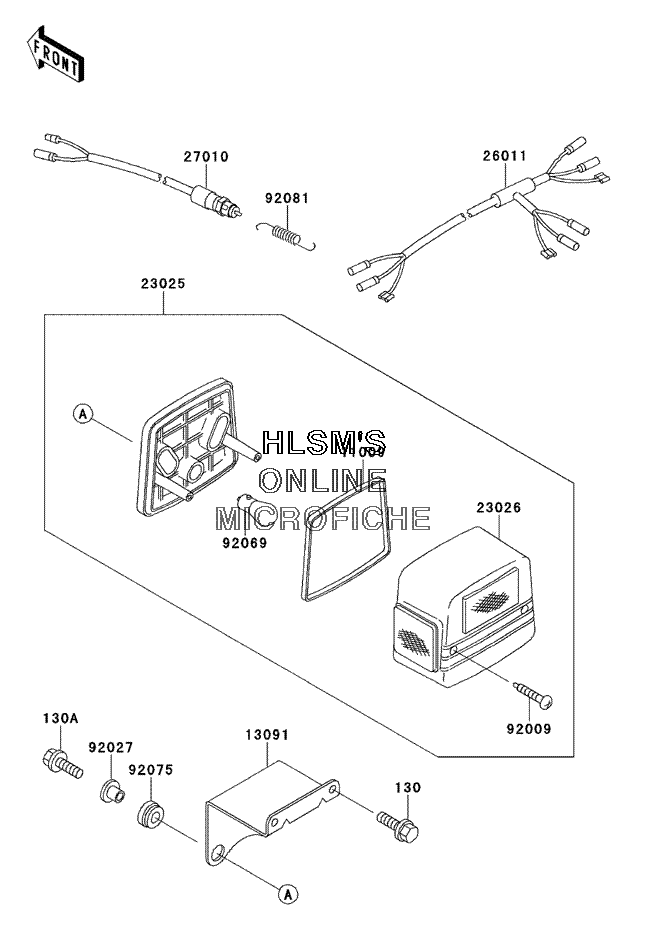

TAILLIGHT(S) (OPTIONAL) для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
130A130J0620 BOLT-FLANGEDBOLT-FLANGED
-
1100911009-1215 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
1309113091-1743 HOLDER, TAIL LAMPHOLDER, TAIL LAMP
-
2302523025-1042 LAMP-TAILLAMP-TAIL
-
2302623026-1019 LENS, TAIL LAMPLENS, TAIL LAMP
-
2601126011-1441 WIRE-LEAD, TAIL LAMPWIRE-LEAD, TAIL LAMP
-
2701027010-1181 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
9200992009-1069 SCREW, TAPPING, 4X25SCREW, TAPPING, 4X25
-
9202792027-194 COLLAR, L=11.1COLLAR, L=11.1
-
9206992069-1011 BULB, 12V20/5WBULB, 12V20/5W
-
9207592075-277 DAMPERDAMPER
-
9208192081-1466 SPRING, HOOK RETURNSPRING, HOOK RETURN
