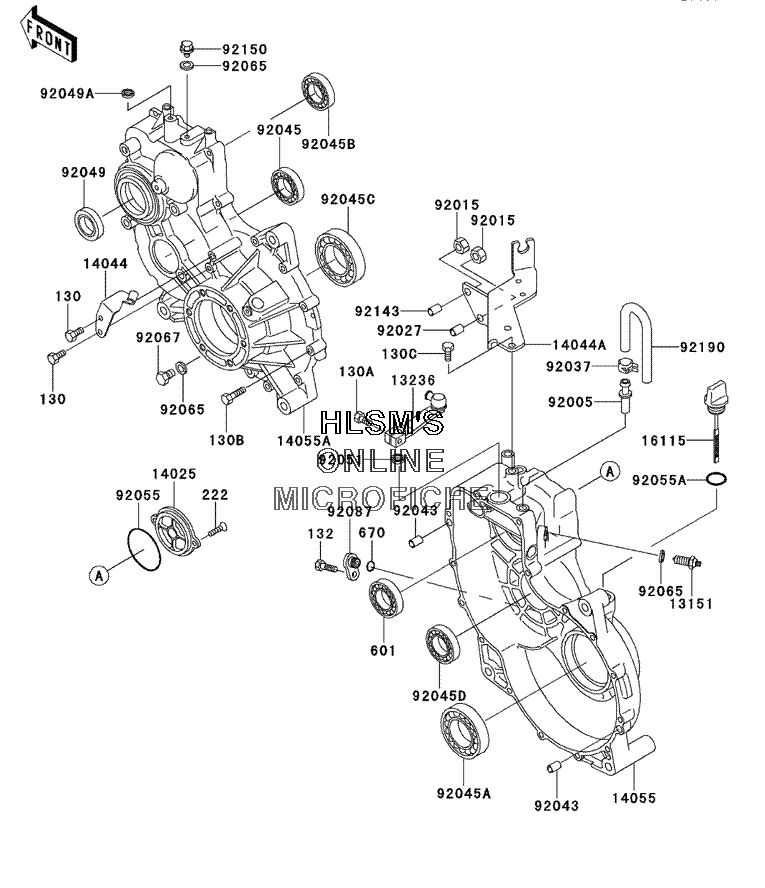

GEAR BOX для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска`
-
№АртикулНазвание
-
130130D0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130H0620 BOLT-FLANGEDBOLT-FLANGED
-
130B130H0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
130C130H0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
132132J0614 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
222222B0614 SCREW-CSK-RD-CROSSCREW-CSK-RD-CROS
-
601601B6007 BEARING-BALLBEARING-BALL
-
670670D1510 O RING, 10MMO RING, 10MM
-
1315113151-1069 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1323613236-1246 LEVER-COMP, CHANGELEVER-COMP, CHANGE
-
1402514025-1813 COVERCOVER
-
1404414044-1065 HOLDER-CABLEHOLDER-CABLE
-
14044A14044-1074 HOLDER-CABLE, FRONT/RRHOLDER-CABLE, FRONT/RR
-
1405514055-1112 CASE-GEAR (RIGHT)CASE-GEAR (RIGHT)
-
14055A14055-1123 CASE-GEAR (LEFT)CASE-GEAR (LEFT)
-
1611516115-1060 CAP-OIL FILLERCAP-OIL FILLER
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202792027-1568 COLLAR, 8.3X11.5X9COLLAR, 8.3X11.5X9
-
9203792037-1505 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1142 BEARING-BALL, TMB304CCMBEARING-BALL, TMB304CCM
-
92045A92045-1162 BEARING-BALLBEARING-BALL
-
92045B92045-1207 BEARING-BALL, 62/28BEARING-BALL, 62/28
-
92045C92045-1213 BEARING-BALLBEARING-BALL
-
92045D92045-1285 BEARING-BALL, TMB205JR2BEARING-BALL, TMB205JR2
-
9204992049-1297 SEAL-OIL, TC28X47X7SEAL-OIL, TC28X47X7
-
92049A92049-2097 SEAL-OIL, VC-6X10X2.5SEAL-OIL, VC-6X10X2.5
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9205592055-1120 RING-O, 55MMRING-O, 55MM
-
92055A92055-2185 RING-O, 20MMRING-O, 20MM
-
9206592065-058 GASKET, 10.5X16X1, DRAIN PLUGGASKET, 10.5X16X1, DRAIN PLUG
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9208792087-1058 BUSHING-METER GEARBUSHING-METER GEAR
-
9214392143-1642 COLLAR, 8.5X15X9COLLAR, 8.5X15X9
-
9215092150-1900 BOLTBOLT
-
9219092190-3807 TUBETUBE
