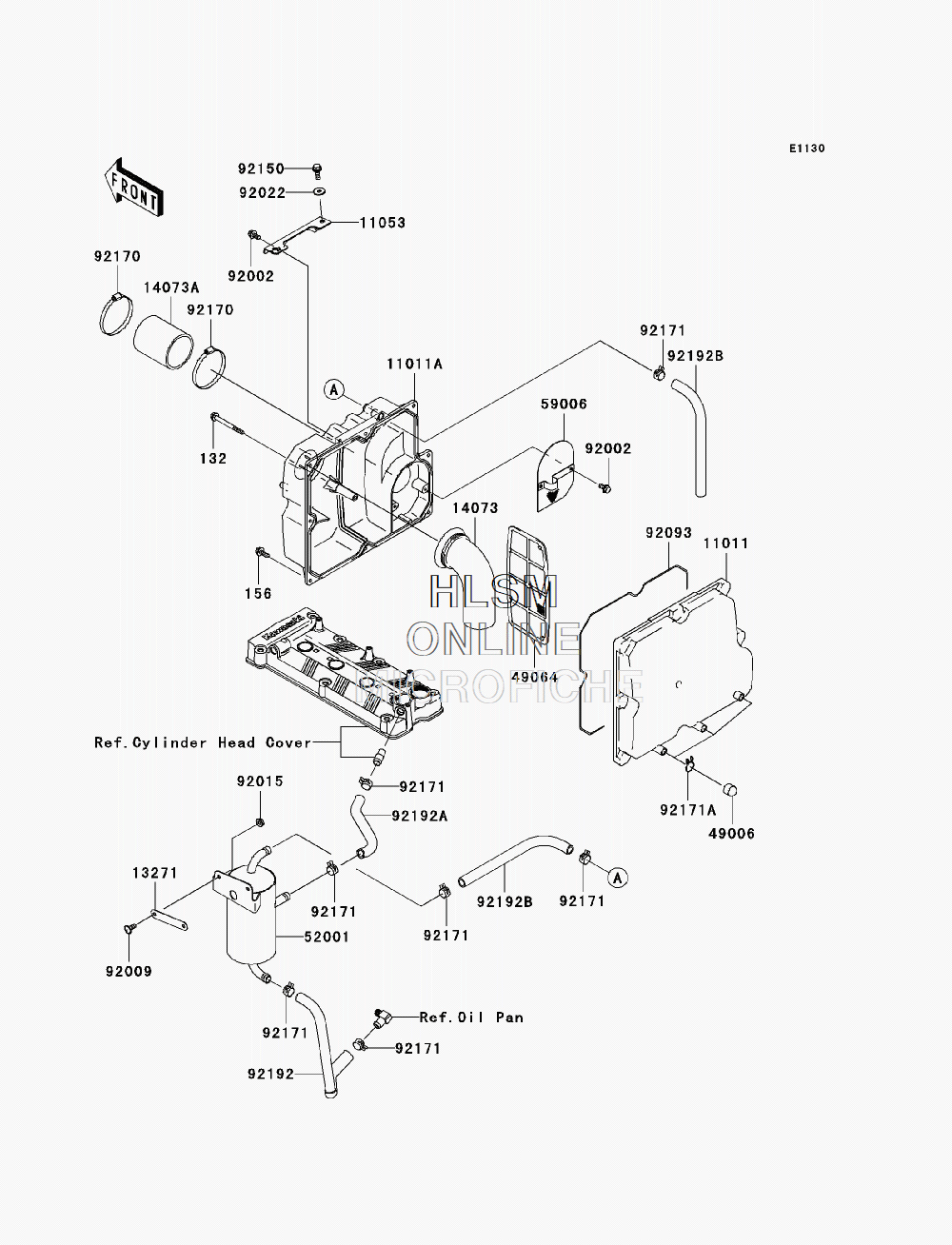

INTAKE SILENCER для Kawasaki STX (JT1500DAF) - 2010 года выпуска`
-
№АртикулНазвание
-
132132BD0660 BOLT-FLANGED-SMALL,6X60BOLT-FLANGED-SMALL,6X60
-
156156R0616 BOLT-WP,6X16BOLT-WP,6X16
-
1101111011-3704 CASE-AIR FILTER, REARCASE-AIR FILTER, REAR
-
11011A11011-3706 CASE-AIR FILTERCASE-AIR FILTER
-
1105311053-3789 BRACKETBRACKET
-
1327113271-3880 PLATEPLATE
-
1407314073-3794 DUCT,AIR INLETDUCT,AIR INLET
-
14073A14073-3795 DUCT,AIR FILTER-THOROTTLEDUCT,AIR FILTER-THOROTTLE
-
4900649006-3718 BOOT,DRAINBOOT,DRAIN
-
4906449064-3702 FILTER-AIRFILTER-AIR
-
5200152001-3738 TANK-OILTANK-OIL
-
5900659006-3720 AREARESTER-FLAMEAREARESTER-FLAME
-
9200292002-3763 BOLT,6X12BOLT,6X12
-
9200992009-3870 SCREW,6X20SCREW,6X20
-
9201592015-3767 NUT,6MMNUT,6MM
-
9202292022-3743 WASHER,8.2X18X1.5WASHER,8.2X18X1.5
-
9209392093-3766 SEALSEAL
-
9215092150-3713 BOLT,8X20BOLT,8X20
-
9217092170-3764 CLAMPCLAMP
-
9217192171-3710 CLAMP,TUBECLAMP,TUBE
-
92171A92171-3711 CLAMP,BOOTCLAMP,BOOT
-
9219292192-3701 TUBE,SEPARTOR-OILPLANTUBE,SEPARTOR-OILPLAN
-
92192A92192-3719 TUBE,HEAD-SEPARATORTUBE,HEAD-SEPARATOR
-
92192B92192-3725 TUBE,BLOWBYTUBE,BLOWBY
