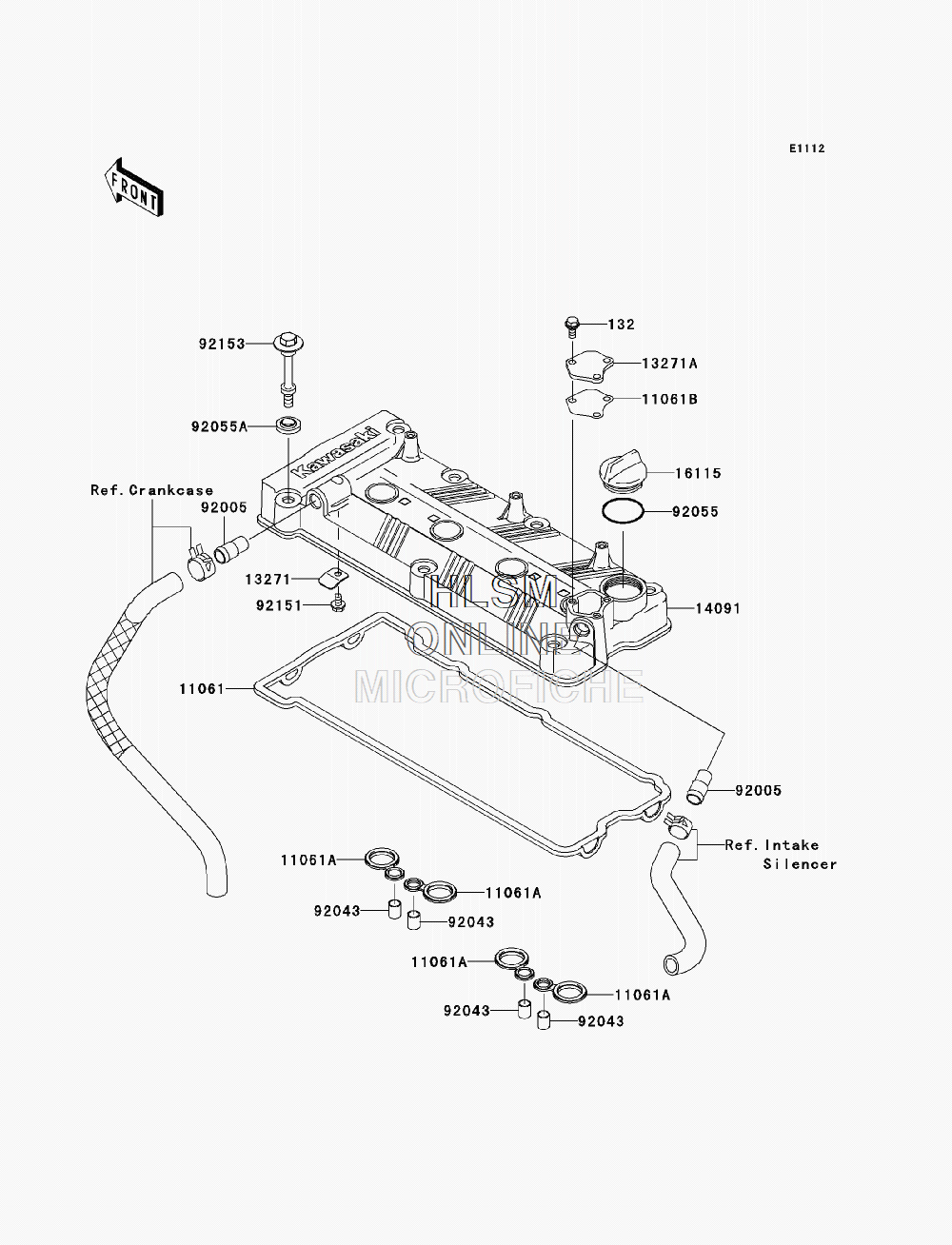

CYLINDER HEAD COVER для Kawasaki STX (JT1500DAF) - 2010 года выпуска`
-
№АртикулНазвание
-
132132BD0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
1106111061-0090 GASKET,HEAD COVERGASKET,HEAD COVER
-
11061A11061-0105 GASKET,SPARK PLUG HOLEGASKET,SPARK PLUG HOLE
-
11061B11061-3728 GASKET,PLATEGASKET,PLATE
-
1327113271-3851 PLATEPLATE
-
13271A13271-3898 PLATEPLATE
-
1409114091-3822 COVER,HEADCOVER,HEAD
-
1611516115-1064 CAP-OIL FILLERCAP-OIL FILLER
-
9200592005-3741 FITTINGFITTING
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
-
9205592055-1295 RING-O,38X1.9RING-O,38X1.9
-
92055A92055-1352 RING-O,HEAD COVER BOLTRING-O,HEAD COVER BOLT
-
9215192151-1822 BOLT,FLANGED,6X10BOLT,FLANGED,6X10
-
9215392153-3706 BOLT,HEAD COVERBOLT,HEAD COVER
