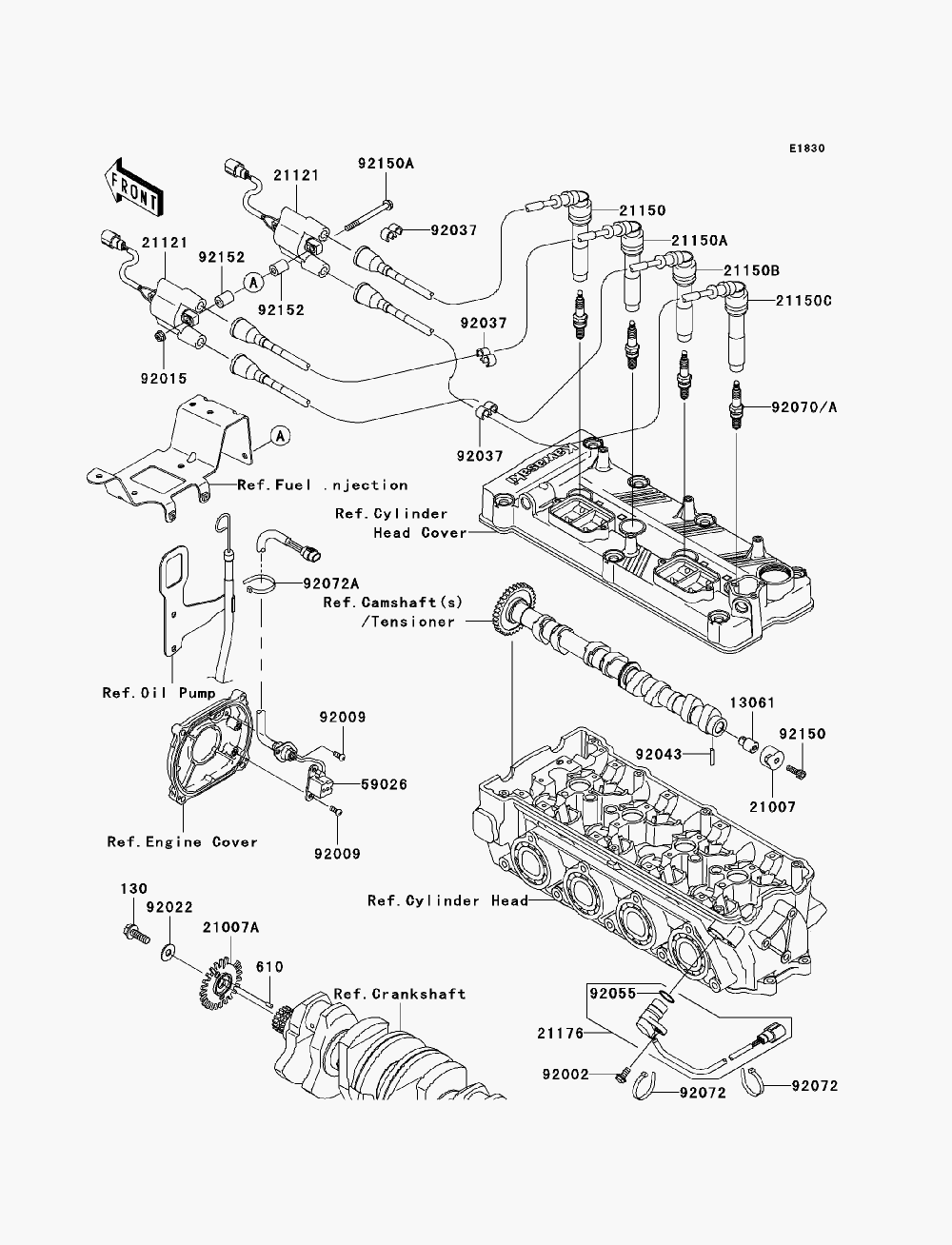

IGNITION SYSTEM для Kawasaki ULTRA LX (JT1500C7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130CD0825 BOLT-FLANGED,8X25BOLT-FLANGED,8X25
-
610610A0408 ROLLER,4X8ROLLER,4X8
-
1306113061-1687 BOSS,CAM SENSORBOSS,CAM SENSOR
-
2100721007-3742 ROTOR,EX CAMROTOR,EX CAM
-
21007A21007-3744 ROTOR,PULSINGROTOR,PULSING
-
2112121121-3722 COIL-IGNITIONCOIL-IGNITION
-
2115021150-3707 CORD-ASSY,#1CORD-ASSY,#1
-
21150A21150-3708 CORD-ASSY,#2CORD-ASSY,#2
-
21150B21150-3709 CORD-ASSY,#3CORD-ASSY,#3
-
21150C21150-3710 CORD-ASSY,#4CORD-ASSY,#4
-
2117621176-1077 SENSOR,TEMPSENSOR,TEMP
-
5902659026-3702 COIL-PULSINGCOIL-PULSING
-
9200292002-3728 BOLT,6X16BOLT,6X16
-
9200992009-1296 SCREW,5X12SCREW,5X12
-
9201592015-3767 NUT,6MMNUT,6MM
-
9202292022-3026 WASHER,PLAINWASHER,PLAIN
-
9203792037-1603 CLAMP,HOSECLAMP,HOSE
-
9204392043-1575 PINPIN
-
9205592055-1639 RING-ORING-O
-
9207092070-1264 PLUG-SPARK,CR9EK(NGK)PLUG-SPARK,CR9EK(NGK)
-
92070A92070-1265 PLUG-SPARK,CR8EK(NGK) (OPTION)PLUG-SPARK,CR8EK(NGK) (OPTION)
-
9207292072-0105 BAND,L=188.85BAND,L=188.85
-
92072A92072-3874 BANDBAND
-
9215092150-1645 BOLT,6X18BOLT,6X18
-
92150A92150-3753 BOLT,6X70BOLT,6X70
-
9215292152-3738 COLLARCOLLAR
