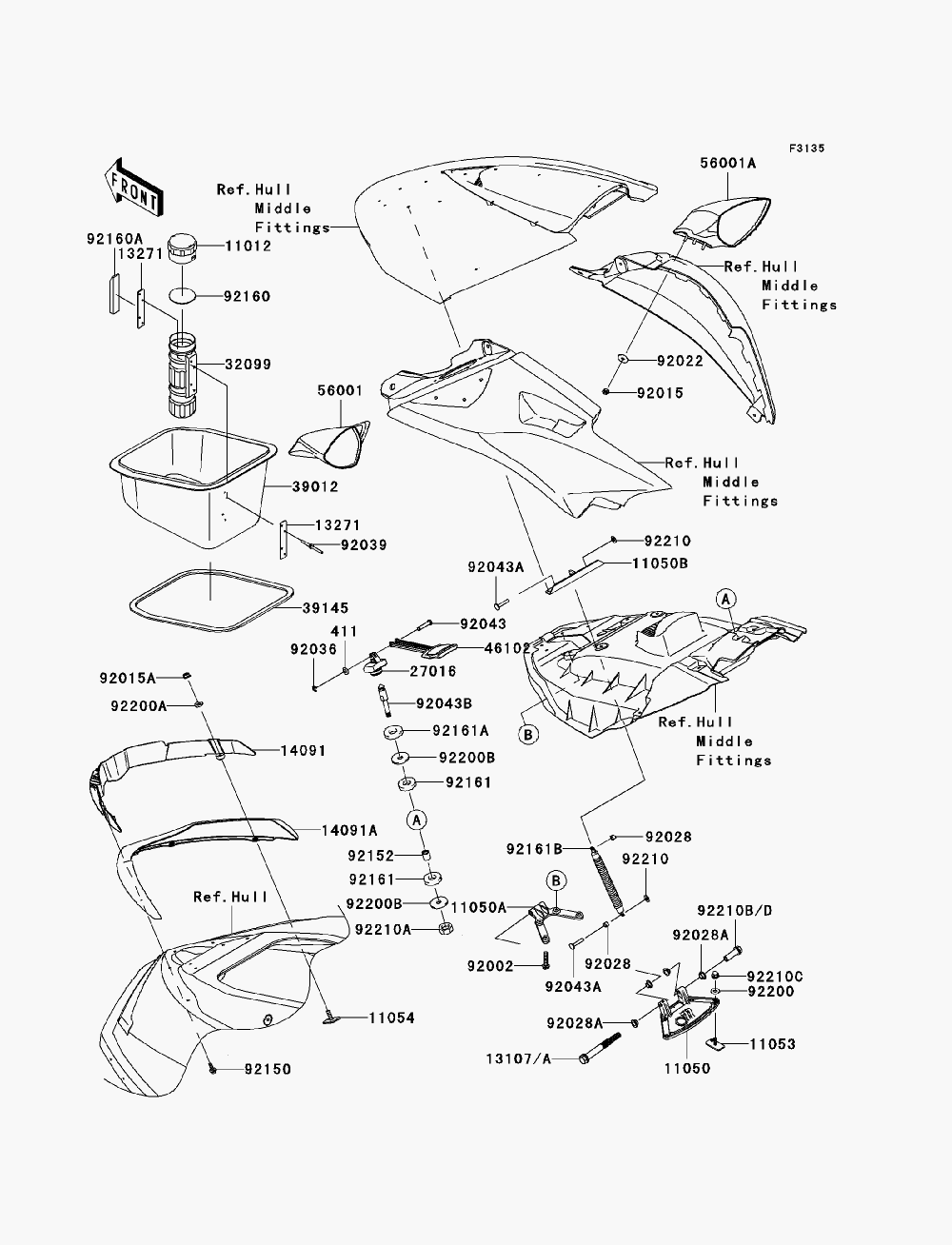

HULL FRONT FITTINGS для Kawasaki ULTRA LX (JT1500C7F) - 2007 года выпуска
-
№АртикулНазвание
-
1101211012-3766 CAP,FIRE EXTINGUISHERCAP,FIRE EXTINGUISHER
-
1105011050-3743 BRACKETBRACKET
-
11050A11050-3744 BRACKETBRACKET
-
11050B11050-3778 BRACKETBRACKET
-
1105311053-3776 BRACKETBRACKET
-
1105411054-3741 BRACKETBRACKET
-
1310713107-3767 SHAFT (UP TO US-KAW50296 708)SHAFT (UP TO US-KAW50296 708)
-
1327113271-3775 PLATE,FIRE EXTINGUISHERPLATE,FIRE EXTINGUISHER
-
1409114091-3788 COVER,WATER PROTECTCOVER,WATER PROTECT
-
14091A14091-3805 COVER, FRONT,TOPCOVER, FRONT,TOP
-
2701627016-3759 LOCK-ASSY,HATCHLOCK-ASSY,HATCH
-
3209932099-3769 CASE,FIRE EXTINGUISHERCASE,FIRE EXTINGUISHER
-
3901239012-3744 CASE-STORAGECASE-STORAGE
-
3914539145-3807 TRIM-SEAL,L=1627TRIM-SEAL,L=1627
-
4610246102-3731 ROD,HATCH OPENERROD,HATCH OPENER
-
5600156001-3727-6Z MIREAROR-ASSY, LEFT HAND,F.BLACKMIREAROR-ASSY, LEFT HAND,F.BLACK
-
56001A56001-3728-6Z MIREAROR-ASSY, RIGHT HAND,F.BLACKMIREAROR-ASSY, RIGHT HAND,F.BLACK
-
9200292002-3726 BOLT,6X30BOLT,6X30
-
9201592015-3766 NUT,LOCK,6MMNUT,LOCK,6MM
-
92015A92015-3767 NUT,6MMNUT,6MM
-
9202292022-3710 WASHER,6.5X20X1.5WASHER,6.5X20X1.5
-
9202892028-3765 BUSHINGBUSHING
-
92028A92028-3770 BUSHINGBUSHING
-
9203692036-518 RING-SNAPRING-SNAP
-
9203992039-3783 RIVETRIVET
-
9204392043-3732 PIN,6X27.5PIN,6X27.5
-
92043A92043-3748 PIN,6X33PIN,6X33
-
92043B92043-3760 PINPIN
-
9215092150-3778 BOLT,5X16BOLT,5X16
-
9215292152-3750 COLLAR,8.2X14X13.2COLLAR,8.2X14X13.2
-
9216092160-3814 DAMPERDAMPER
-
92160A92160-3821 DAMPERDAMPER
-
9216192161-3739 DAMPERDAMPER
-
92161A92161-3747 DAMPERDAMPER
-
92161B92161-3778 DAMPER,HATCHDAMPER,HATCH
-
9220092200-3712 WASHER,6.5X16X1.0WASHER,6.5X16X1.0
-
92200A92200-3775 WASHER,6.5X14.5X1.5WASHER,6.5X14.5X1.5
-
411411S0600 WASHER-PLAIN,6MMWASHER-PLAIN,6MM
-
92200B92200-3786 WASHER,8.5X32X2WASHER,8.5X32X2
-
9221092210-3739 NUT,SPEED,6MMNUT,SPEED,6MM
-
92210A92210-3742 NUT,LOCK,8MMNUT,LOCK,8MM
-
92210B92210-3748 NUT,8MM (UP TO US-KAW50296 708)NUT,8MM (UP TO US-KAW50296 708)
-
92210C92210-3785 NUT,CAP,6MMNUT,CAP,6MM
