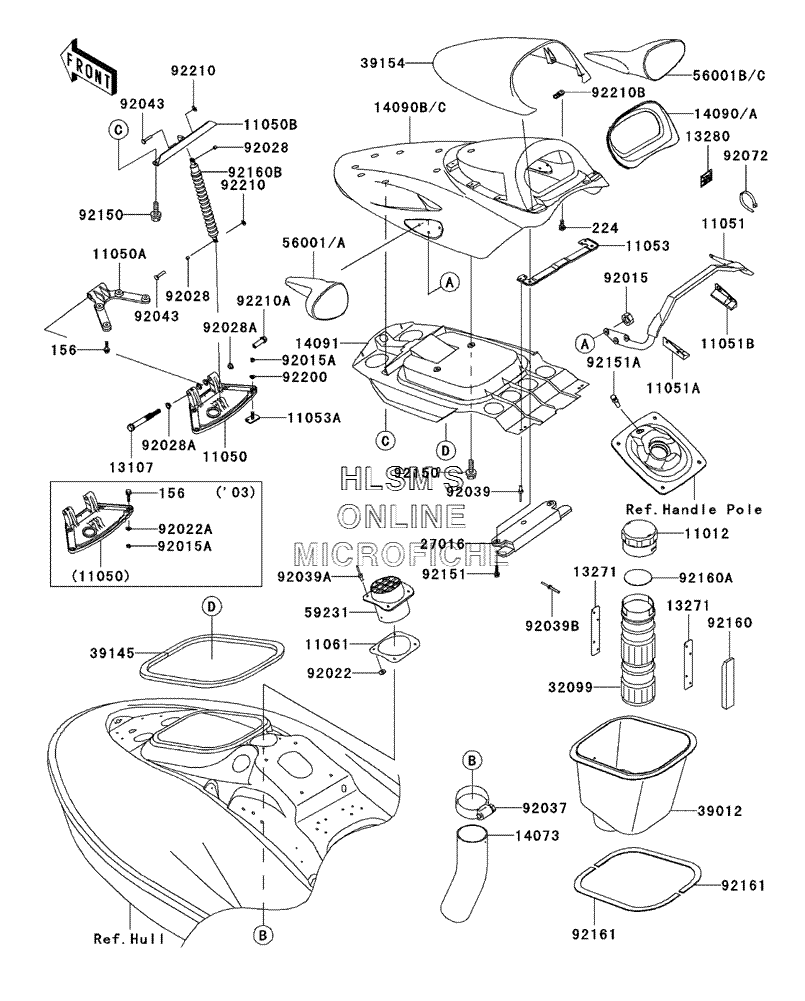

HULL FRONT FITTINGS для Kawasaki ULTRA 150 (JH1200-B2) - 2004 года выпуска`
-
№АртикулНазвание
-
1101211012-3766 CAP, FIRE EXTINGUISHERCAP, FIRE EXTINGUISHER
-
1105011050-3743 BRACKETBRACKET
-
11050A11050-3744 BRACKETBRACKET
-
11050B11050-3778 BRACKETBRACKET
-
1105111051-3707 BRACKETBRACKET
-
11051A11051-3745 BRACKET (LEFT)BRACKET (LEFT)
-
11051B11051-3746 BRACKET (RIGHT)BRACKET (RIGHT)
-
1105311053-3714 BRACKETBRACKET
-
11053A11053-3776 BRACKETBRACKET
-
1106111061-3703 GASKET, FRONT DUCTGASKET, FRONT DUCT
-
1310713107-3767 SHAFTSHAFT
-
1327113271-3775 PLATE, FIRE EXTINGUISHERPLATE, FIRE EXTINGUISHER
-
1328013280-3739 HOLDERHOLDER
-
1407314073-3784 DUCT, FRONTDUCT, FRONT
-
1409014090-3820-367 COVER, METER (C.L.GREEN)COVER, METER (C.L.GREEN)
-
14090B14090-3823-367 COVER, HATCH (C.L.GREEN)COVER, HATCH (C.L.GREEN)
-
1409114091-3730 COVER, DUCTCOVER, DUCT
-
2701627016-3753 LOCK, ASSY., LIDLOCK, ASSY., LID
-
3209932099-3769 CASE, FIRE EXTINGUISHERCASE, FIRE EXTINGUISHER
-
3901239012-3721 CASE, STORAGECASE, STORAGE
-
3914539145-3756 TRIM, SEALTRIM, SEAL
-
3915439154-3707 WINDSHIELDWINDSHIELD
-
56001A56001-3713-8N MIRROR, ASSY. (LEFT) C.L.GREENMIRROR, ASSY. (LEFT) C.L.GREEN
-
56001C56001-3714-8N MIRROR, ASSY. (RIGHT) C.L.GREENMIRROR, ASSY. (RIGHT) C.L.GREEN
-
5923159231-3725 FILLERFILLER
-
9201592015-3766 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
92015A92015-3767 NUT, 6MMNUT, 6MM
-
9202292022-3041 WASHER, 5X16X1.5WASHER, 5X16X1.5
-
9202892028-3765 BUSHINGBUSHING
-
92028A92028-3770 BUSHINGBUSHING
-
9203792037-3733 CLAMP, MAX120.7MMCLAMP, MAX120.7MM
-
9203992039-3747 RIVETRIVET
-
92039A92039-3775 RIVETRIVET
-
92039B92039-3783 RIVETRIVET
-
9204392043-3748 PIN, 6X33PIN, 6X33
-
156156R0620 BOLT, WP, 6X20BOLT, WP, 6X20
-
224224R0514 SCREW, PAN, WP, CROS, 5X14SCREW, PAN, WP, CROS, 5X14
-
9207292072-3857 BANDBAND
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
9215192151-3769 BOLT, 6X22BOLT, 6X22
-
92151A92151-3776 BOLTBOLT
-
9216092160-3814 DAMPERDAMPER
-
92160A92160-3821 DAMPERDAMPER
-
92160B92160-3919 DAMPERDAMPER
-
9216192161-3714 DAMPERDAMPER
-
9220092200-3712 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9221092210-3739 NUT, SPEED, 6MMNUT, SPEED, 6MM
-
92210A92210-3748 NUT, 8MMNUT, 8MM
-
92210B92210-3750 NUTNUT
