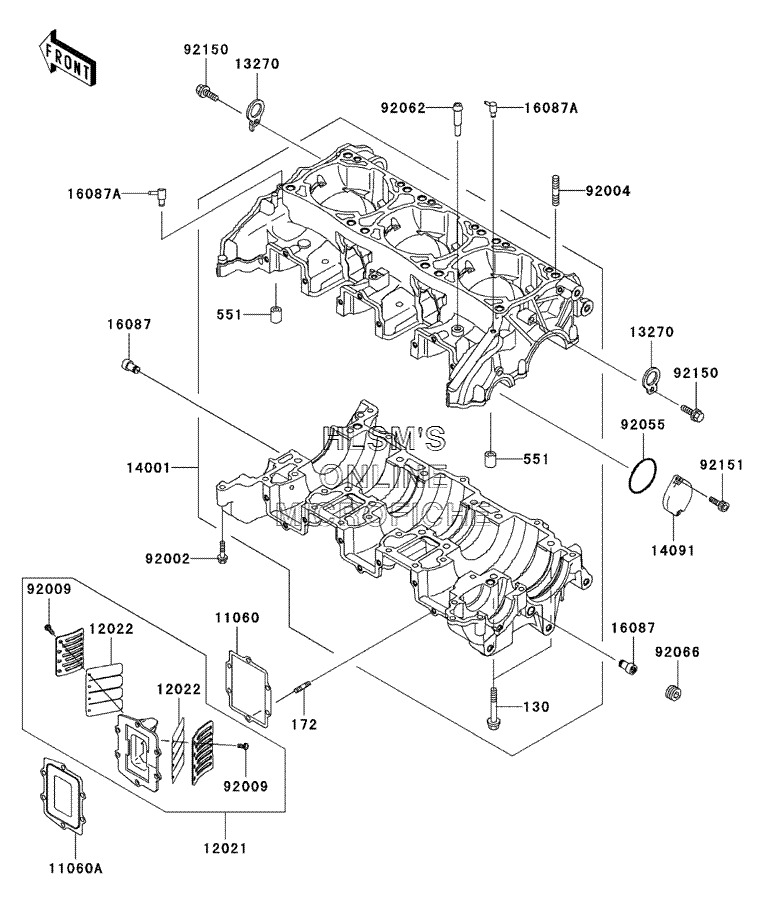

CRANKCASE для Kawasaki ULTRA 150 (JH1200-B2) - 2004 года выпуска
-
№АртикулНазвание
-
130130Z0855 BOLT, FLANGEDBOLT, FLANGED
-
172172R0620 BOLT, STUDBOLT, STUD
-
551551R1012 PIN, DOWELPIN, DOWEL
-
1106011060-3717 GASKET, REED VALVEGASKET, REED VALVE
-
11060A11060-3757 GASKET, REED VALVEGASKET, REED VALVE
-
1202112021-3711 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1202212022-3709 VALVE, REEDVALVE, REED
-
1327013270-3899 PLATEPLATE
-
1400114001-5377 SET, CRANKCASESET, CRANKCASE
-
1409114091-3736 COVER, BALANCERCOVER, BALANCER
-
1608716087-3707 VALVE, CHECKVALVE, CHECK
-
16087A16087-3708 VALVE, CHECKVALVE, CHECK
-
9200292002-3716 BOLT, 6X40BOLT, 6X40
-
9200492004-3731 STUD, 10X35STUD, 10X35
-
9200992009-1371 SCREW, 3X6SCREW, 3X6
-
9205592055-1397 O-RINGO-RING
-
9206292062-3705 NOZZLENOZZLE
-
9206692066-3765 PLUG, PT1/4X8.9PLUG, PT1/4X8.9
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
9215192151-3779 BOLTBOLT
