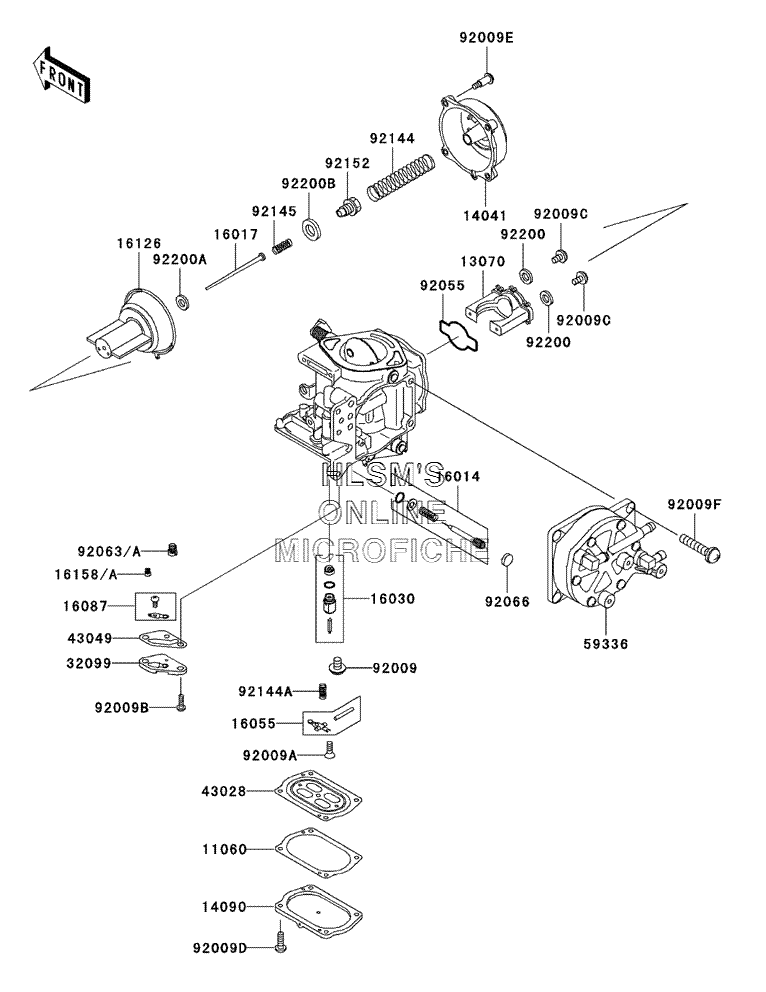

CARBURETOR PARTS для Kawasaki 900 STX (JT900-E1) - 2004 года выпуска
-
№АртикулНазвание
-
1106011060-3789 GASKET, DIAPHRAGM COVERGASKET, DIAPHRAGM COVER
-
1307013070-3726 GUIDE, VACUUM VALVEGUIDE, VACUUM VALVE
-
1404114041-1100 COVER, COMP, MIXINGCOVER, COMP, MIXING
-
1409014090-3816 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
1601416014-3702 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601716017-3707 JET, NEEDLE, N7FCJET, NEEDLE, N7FC
-
1603016030-3704 VALVE, FLOATVALVE, FLOAT
-
1605516055-3702 ARM, FLOATARM, FLOAT
-
1608716087-3706 VALVE, CHECKVALVE, CHECK
-
1612616126-3705 VALVE, VACUUMVALVE, VACUUM
-
1615816158-3722 JET, SLOW, #38JET, SLOW, #38
-
16158A16158-3726 JET, SLOW, #35 (OPT)JET, SLOW, #35 (OPT)
-
3209932099-3833 CASE, JETCASE, JET
-
4302843028-3711 DIAPHRAGM, CARBURETORDIAPHRAGM, CARBURETOR
-
4304943049-3713 PACKING, JET CASEPACKING, JET CASE
-
5933659336-3718 CASE, PUMP, DIAPHRAGMCASE, PUMP, DIAPHRAGM
-
9200992009-1771 SCREWSCREW
-
92009A92009-3712 SCREW, 3X8SCREW, 3X8
-
92009B92009-3804 SCREW, 4X8SCREW, 4X8
-
92009C92009-3839 SCREW, VALVE GUIDESCREW, VALVE GUIDE
-
92009D92009-3840 SCREW, DIAPHRAGM COVERSCREW, DIAPHRAGM COVER
-
92009E92009-3841 SCREW, MIXING COVERSCREW, MIXING COVER
-
92009F92009-3865 SCREW, 6X16SCREW, 6X16
-
9205592055-3749 O-RING, VACUUM VALVE GUIDEO-RING, VACUUM VALVE GUIDE
-
9206392063-3720 JET, MAIN, #165JET, MAIN, #165
-
92063A92063-3723 JET, MAIN, #155 (OPT)JET, MAIN, #155 (OPT)
-
9206692066-3769 PLUG, PILOT AIR SCREWPLUG, PILOT AIR SCREW
-
9214492144-1962 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
92144A92144-3764 SPRING, FLOAT ARMSPRING, FLOAT ARM
-
9214592145-3719 SPRING, JET NEEDLESPRING, JET NEEDLE
-
9215292152-3706 COLLAR, JET NEEDLECOLLAR, JET NEEDLE
-
9220092200-3772 WASHER, VALVE GUIDEWASHER, VALVE GUIDE
-
92200A92200-3773 WASHER, JET NEEDLEWASHER, JET NEEDLE
-
92200B92200-3774 WASHER, JET NEEDLE COLLARWASHER, JET NEEDLE COLLAR
