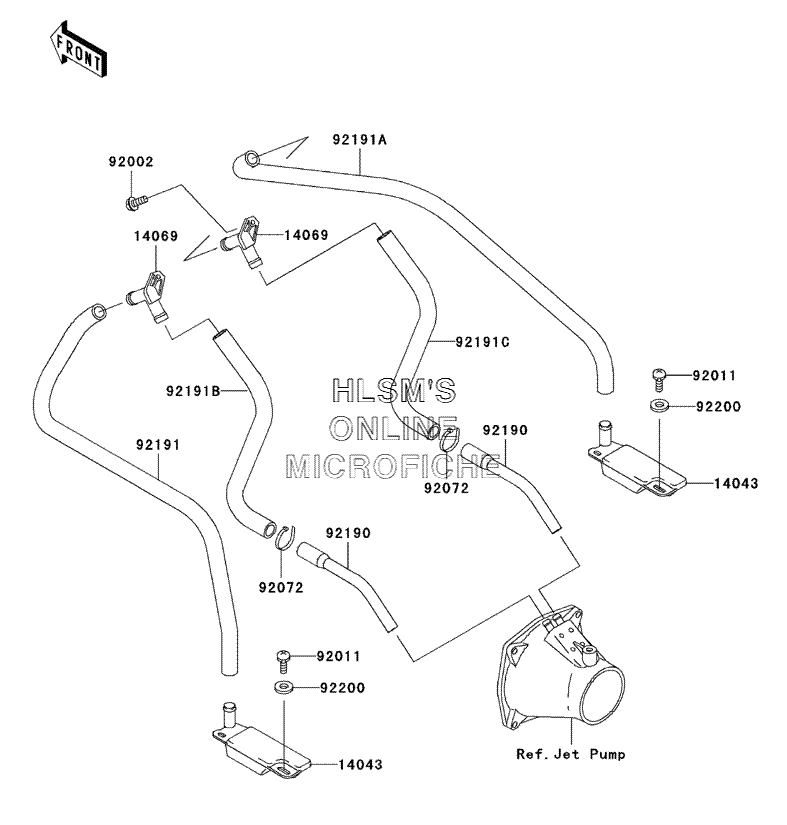

BILGE SYSTEM для Kawasaki 900 STX (JT900-E1) - 2004 года выпуска
-
№АртикулНазвание
-
1404314043-3708 FILTERFILTER
-
1406914069-3708 BREATHERBREATHER
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9201192011-561 SCREW, TAPPINGSCREW, TAPPING
-
9207292072-1239 BAND, L=188BAND, L=188
-
9219092190-3971 TUBE, HULL, NOZZLETUBE, HULL, NOZZLE
-
9219192191-3821 TUBE, FILTER, BREATHER (LEFT)TUBE, FILTER, BREATHER (LEFT)
-
92191A92191-3822 TUBE, FILTER, BREATHER (RIGHT)TUBE, FILTER, BREATHER (RIGHT)
-
92191B92191-3927 TUBE, BILGE BREATHER, HULL (LEFT)TUBE, BILGE BREATHER, HULL (LEFT)
-
92191C92191-3928 TUBE, BILGE BREATHER, HULL (RIGHT)TUBE, BILGE BREATHER, HULL (RIGHT)
-
9220092200-3714 WASHER, 5.9X16X1.5WASHER, 5.9X16X1.5
