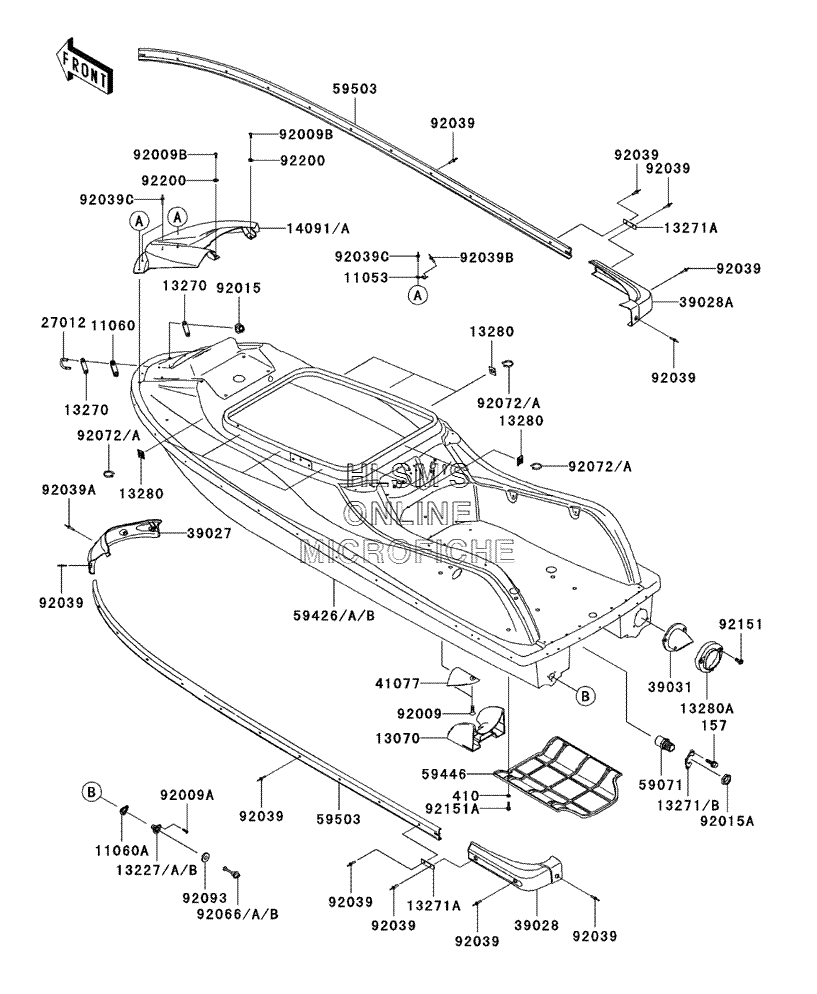

HULL для Kawasaki 800 SX-R (JS800-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1105311053-3739 BRACKETBRACKET
-
1106011060-3799 GASKET, U HOOK, FRONTGASKET, U HOOK, FRONT
-
11060A11060-3801 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1307013070-3708 GUIDE, INTAKEGUIDE, INTAKE
-
13227B13227-3721-8U HOUSING, DRAIN PLUG (J.WHITE)HOUSING, DRAIN PLUG (J.WHITE)
-
1327013270-3896 PLATEPLATE
-
1327113271-3789 PLATEPLATE
-
13271A13271-3884 PLATEPLATE
-
1328013280-3739 HOLDERHOLDER
-
13280A13280-3742 HOLDER, TAIL PIPE CAPHOLDER, TAIL PIPE CAP
-
1409114091-3748-10 COVER, NOSE (BLACK)COVER, NOSE (BLACK)
-
2701227012-3797 HOOKHOOK
-
3902739027-3745-6Z BUMPER, FRONT (F.BLACK)BUMPER, FRONT (F.BLACK)
-
3902839028-3753-6Z BUMPER, REAR (LEFT) (F.BLACK)BUMPER, REAR (LEFT) (F.BLACK)
-
39028A39028-3754-6Z BUMPER, REAR (RIGHT) (F.BLACK)BUMPER, REAR (RIGHT) (F.BLACK)
-
3903139031-3709 CAP, END, TAIL PIPECAP, END, TAIL PIPE
-
4107741077-3701 ADAPTERADAPTER
-
5907159071-3763 JOINTJOINT
-
59426A59426-3943-22 HULL, COMP (J.WHITE) (US ONLY)HULL, COMP (J.WHITE) (US ONLY)
-
5944659446-3755 COVER, JET PUMPCOVER, JET PUMP
-
5950359503-3707-6Z FENDER, BOAT (F.BLACK)FENDER, BOAT (F.BLACK)
-
9200992009-3842 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
92009A92009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92009B92009-3868 SCREW, 5X16SCREW, 5X16
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-3738 NUT, 20MMNUT, 20MM
-
9203992039-3778 RIVETRIVET
-
92039A92039-3779 RIVETRIVET
-
92039B92039-3780 RIVETRIVET
-
92039C92039-3781 RIVETRIVET
-
157157R0518 BOLT, WSP, 5X18BOLT, WSP, 5X18
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
92066B92066-3783-8U PLUG, REAR, DRAIN (J.WHITE)PLUG, REAR, DRAIN (J.WHITE)
-
9207292072-1239 BAND, L=188BAND, L=188
-
9209392093-3720 SEALSEAL
-
9215192151-3746 BOLT, SOCKET, M6, SHOULDERBOLT, SOCKET, M6, SHOULDER
-
92151A92151-3774 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
9220092200-3714 WASHER, 5.9X16X1.5WASHER, 5.9X16X1.5
